Advanced
HZL-NX7
Next generation 12 inch computerized longarm sewing machine.
Where To Buy
Product overview
Juki HZL-NX-7 is an innovative computerized longarm machine featuring Juki Smart Feed, digital tension and 12 inch throat giving wide sewing area. This multipurpose sewing machines fits perfectly to all sewing levels and interests.

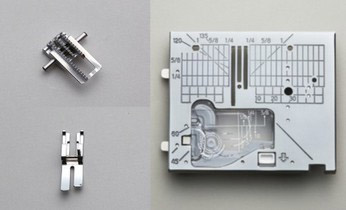

Beauty and Easy to Use of Straight Stitch Sewing Machine
The straight stitch throat plate, feed dogs and presser foot can be replaced in one easy step. Curves and single lap stitching cleanly sewn from the beginning of the seam.

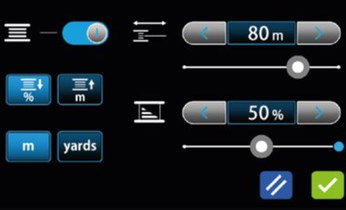

Bobbin Thread Counter
The amount of bobbin thread used is counted based on the stitch length and number of stitches sewn. Running out of bobbin thread can be prevented since you will be warned when 20% of thread remains.
Color Touch Panel
Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively.
See All Functions List
Specification
Specification
Buttonhole
Automatic (sensor system) with clamping plate
Sewing Speed
1050 sti/min
LED Lights
2
Dimensions
575(W)x310(H)x240(D) mm
Weight
14,8kg (10,54 Lb)
Stitch Patterns
351
Buttonholing
Automatic
Thread Trimming Function
yes
Automatic Needle Threader
Yes
Thread Tension
Automatic
Automatic Lock Stitch
Automatic lock stitch and thread trimming
Drop Feed
Yes
Start/stop button
Green: Ready to start and/or while sewing, Red: Not ready to start, Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
All Functions
Beauty and Easy to Use of Straight Stitch Sewing Machine
The straight stitch throat plate, feed dogs and presser foot can be replaced in one easy step. Curves and single lap stitching cleanly sewn from the beginning of the seam.
Bobbin Thread Counter
The amount of bobbin thread used is counted based on the stitch length and number of stitches sewn. Running out of bobbin thread can be prevented since you will be warned when 20% of thread remains.
Color Touch Panel
Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively.
Electronic Feed Dog Control Mechanism
Raise and lower the feed dogs from the touch panel. When the presser foot is raised, the feed dogs is lowered. Fabric can be smoothly removed without damage. In addition to allowing switching to free-motion.
JUKI Dual Feed
The dual upper feed dogs can be installed and removed in a single step. The dual-feed design prevents uneven feeding and bunched stitching.
Presser Foot Pivot Function
When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.
Thread Tension Setting Optimized for the Pattern
The thread tension most suitable for the pattern and stitch length can be set. Sew beautiful seams without shrinkage even when sewing fine or dense stitching.
Guide
From touch panel, view instructions for main machine operations. Specify basic settings without even looking at the instruction manual.
Accessories
Standard and optional attachments to enhance your sewing capabilities
Pintuck Foot Narrow *Option
This presser foot is used for sewing narrow pintucks on blouses and handkerchiefs using two needles.
Pintuck Foot Wide *Option
This presser foot is used for sewing wide pintucks on blouses and handkerchiefs using two needles.
7 mm Guide Foot *Option
This presser foot is used to piecing togrther patchwork with a seam allowance of 7 mm.
Load more
Download files (2)
Computer Lockstitch
HZL-NX7
Next generation 12 inch computerized longarm sewing machine.
Product overview
Juki HZL-NX-7 is an innovative computerized longarm machine featuring Juki Smart Feed, digital tension and 12 inch throat giving wide sewing area. This multipurpose sewing machines fits perfectly to all sewing levels and interests.
Specification
All Functions
Beauty and Easy to Use of Straight Stitch Sewing Machine
The straight stitch throat plate, feed dogs and presser foot can be replaced in one easy step. Curves and single lap stitching cleanly sewn from the beginning of the seam.
Bobbin Thread Counter
The amount of bobbin thread used is counted based on the stitch length and number of stitches sewn. Running out of bobbin thread can be prevented since you will be warned when 20% of thread remains.
Color Touch Panel
Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively.
Electronic Feed Dog Control Mechanism
Raise and lower the feed dogs from the touch panel. When the presser foot is raised, the feed dogs is lowered. Fabric can be smoothly removed without damage. In addition to allowing switching to free-motion.
JUKI Dual Feed
The dual upper feed dogs can be installed and removed in a single step. The dual-feed design prevents uneven feeding and bunched stitching.
Presser Foot Pivot Function
When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.
Thread Tension Setting Optimized for the Pattern
The thread tension most suitable for the pattern and stitch length can be set. Sew beautiful seams without shrinkage even when sewing fine or dense stitching.
Guide
From touch panel, view instructions for main machine operations. Specify basic settings without even looking at the instruction manual.
Specification
Buttonhole
Automatic (sensor system) with clamping plate
Sewing Speed
1050 sti/min
LED Lights
2
Dimensions
575(W)x310(H)x240(D) mm
Weight
14,8kg (10,54 Lb)
Stitch Patterns
351
Buttonholing
Automatic
Thread Trimming Function
yes
Automatic Needle Threader
Yes
Thread Tension
Automatic
Automatic Lock Stitch
Automatic lock stitch and thread trimming
Drop Feed
Yes
Start/stop button
Green: Ready to start and/or while sewing, Red: Not ready to start, Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
Standard Accessories
