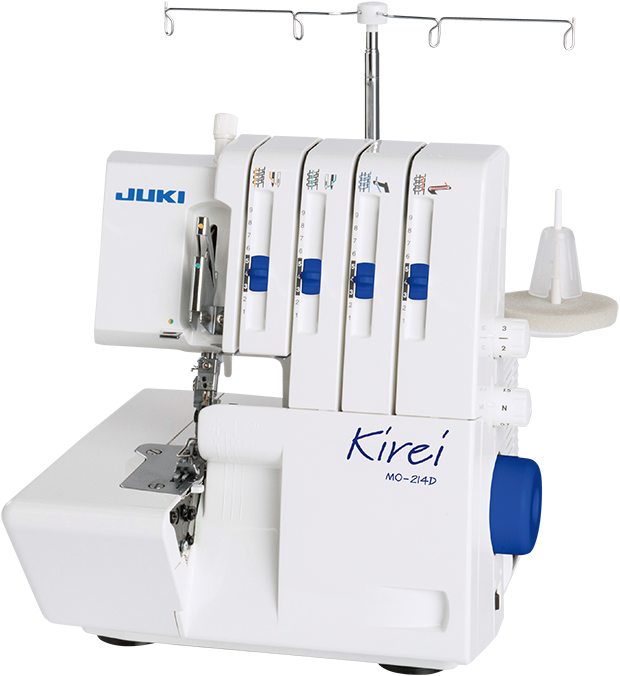

MO-214D
Where To Buy
MO-214D
The overlock sewing machines that create beautiful finished seams. With a wide variety of stitch patterns, you can sew both stretchy and knit fabrics with ease.
Where To Buy
Learn More
Product overview
The MO-214D is a sturdy and compact overlock that is second to none. The built-in helpful features also make over-curving an experience for you. The MO-214D has a practical threading aid for the lower looper and professional adjustment options for cutting width, stitch length and differential feed. The optimal cutting or cutting of your fabrics is ensure by a heavy-duty upper and lower Knife. The waste container is included in the delivery, it is quickly installed and keeps the workplace clean.
MO-214D
The Overlock Sewing Machine That Create Beautiful Finish Seams
With a Wide Variety of Stitch Patterns, You Can Sew Both Stretchy and Knit Fabric with Ease.
This Machine has Built-in Thread Tensions That Make Threading Easy and Efficient.
Sew Stunning Rolled Hems as Much as You Want.
Adjustable Stitch Length
The stitch length can be adjusted by simply turning the dial on the exterior right hand side within the range of 1 to 4 mm (MO-114D). For the MO-104D model the dial is located on the inside of the machine.
Automatic Rolled Hemming
Hemming can be created quickly and easily with built-in finger control. There is no need to change the throat plate or foot.
Differential Feed
The differential feed can be controlled by a dial located on the exterior right hand side (MO-114D). For MO-104D, the dial is located on the exterior left hand side.
See All Functions List
Specification
Specification
Number of Thread
2, 3, 4
Needle
Schmetz 130/705H Nm 70, 80, 90
Standard Overlock Width
Left Needle 5-7 mm
Dimensions
270(W)x295(D)x340(H) mm
Weight
8.8 kg (19.40 Lb)
Differential Feed
0.7-2.0 Ratio
Sewing Speed
1500 sti/min
Presser Foot Lift
5/7.5 mm
All Functions
Adjustable Stitch Length
The stitch length can be adjusted by simply turning the dial on the exterior right hand side within the range of 1 to 4 mm (MO-114D). For the MO-104D model the dial is located on the inside of the machine.
Automatic Rolled Hemming
Hemming can be created quickly and easily with built-in finger control. There is no need to change the throat plate or foot.
Differential Feed
The differential feed can be controlled by a dial located on the exterior right hand side (MO-114D). For MO-104D, the dial is located on the exterior left hand side.
Lay-in Type Thread Tension Slots
The machine allows for easy and efficient threading avoiding wrapping and clear path,

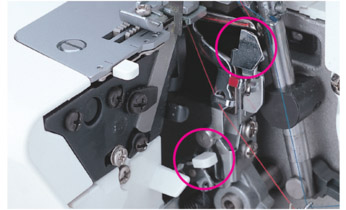

Lower Looper Threader
The machine allows fr easy threading in seconds. Just slide the thread iinto the slot and snap the looper into the place (only applicable for MO-114D).
Cutting Width
The cutting width can be adjusted for perfect seams and rolled edges.
Accessories
Standard and optional attachments to enhance your sewing capabilities
A15018000C0A MO114D/MO214, MO104D/MO204
Standard Presser Foot *Standard
This presser foot is used for regular overlock stitching. It can also be used for sewing in tape while overlocking the edge of the fabric.
A9810-634-0A0A MO-114D/MO-214, MO-104D/MO-204
Blind Stitch Presser Foot (for Right Needle) *Option
This presser foot is used to sew blind hem stitching while overlocking the edge of the fabric.
A9521-634-0A0A MO-114D/MO-214, MO-104D/MO-204
Universal Blind Stitch Presser Foot (For Right & Left Needle) *Option
This presser foot is used to sew blind hem stitching, decorative flatlock or pintucks.
Load more
Standard Accessories
Standard presser foot

Overlock

MO-214D

The overlock sewing machines that create beautiful finished seams. With a wide variety of stitch patterns, you can sew both stretchy and knit fabrics with ease.
Product overview
The MO-214D is a sturdy and compact overlock that is second to none. The built-in helpful features also make over-curving an experience for you. The MO-214D has a practical threading aid for the lower looper and professional adjustment options for cutting width, stitch length and differential feed. The optimal cutting or cutting of your fabrics is ensure by a heavy-duty upper and lower Knife. The waste container is included in the delivery, it is quickly installed and keeps the workplace clean.
MO-214D
The Overlock Sewing Machine That Create Beautiful Finish Seams
With a Wide Variety of Stitch Patterns, You Can Sew Both Stretchy and Knit Fabric with Ease.
This Machine has Built-in Thread Tensions That Make Threading Easy and Efficient.
Sew Stunning Rolled Hems as Much as You Want.
Specification
All Functions
Adjustable Stitch Length
The stitch length can be adjusted by simply turning the dial on the exterior right hand side within the range of 1 to 4 mm (MO-114D). For the MO-104D model the dial is located on the inside of the machine.
Automatic Rolled Hemming
Hemming can be created quickly and easily with built-in finger control. There is no need to change the throat plate or foot.
Differential Feed
The differential feed can be controlled by a dial located on the exterior right hand side (MO-114D). For MO-104D, the dial is located on the exterior left hand side.
Lay-in Type Thread Tension Slots
The machine allows for easy and efficient threading avoiding wrapping and clear path,
Lower Looper Threader
The machine allows fr easy threading in seconds. Just slide the thread iinto the slot and snap the looper into the place (only applicable for MO-114D).
Cutting Width
The cutting width can be adjusted for perfect seams and rolled edges.
Specification
Number of Thread
2, 3, 4
Needle
Schmetz 130/705H Nm 70, 80, 90
Standard Overlock Width
Left Needle 5-7 mm
Dimensions
270(W)x295(D)x340(H) mm
Weight
8.8 kg (19.40 Lb)
Differential Feed
0.7-2.0 Ratio
Sewing Speed
1500 sti/min
Presser Foot Lift
5/7.5 mm
Standard Accessories
Standard presser foot
