MO-734DE
Where To Buy
MO-734DE
2-Needle, 2/3/4 Thread Overlock with Differential Feed and Automatic Needle Threader
Where To Buy
Product overview
2-Needle, 2/3/4 Thread Overlock with Differential Feed and Automatic Needle Threader
MO-734DE
Advance Serging Technology
Dazzle Your Family and Friends with Design Innovations
Superior Performance Features
Leader in Sewing Machine Technology
Automatic Needle Threader
2 Needles Threading that is fast, easy and done with a simple push of a lever.
Color Coded Thread Paths
Threading is fast and easy with the fool-proof, color-coded thread path system. Just follow the color indicators and lay thread into the guides. Fast and Easy!

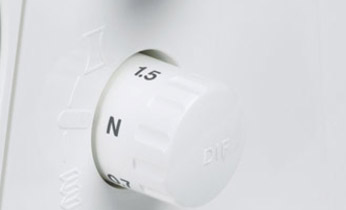

Differential Feed Adjustment
Keep things moving along evenly, or create fashion techniques, like lettuce edges, with the easy to use Differential Feed dial.
See All Functions List
Specification
Specification
4-Thread Overlock
Yes
3-Thread Overlock
Yes
2-Thread Overcast
Yes
3-Thread Flatlock
Yes
3-Thread Narrow Overlock
Yes
3-Thread Rolled Hem
Yes
2-Thread Chainstitch
No
5-Thread Safety Stitch
No
3-Needle Coverstitch
No
2-Needle Coverstitch
No
Dimensions
300(W)x260(D)x290(H) mm
Weight
8.4 kg (18.52 Lb)
Number of Needle
1, 2
Differential Feed
0.7-2.0 Ratio
Sewing Speed
1500 sti/min
Automatic Needle Threader
Yes
Adjusting Presser Foot Pressure
Yes
Automatic Rolled Hemming
Yes
Deactive Upper Knife
Yes
2/3 Thread Conversion
Yes
Presser Foot Lift
5 mm
All Functions
Automatic Needle Threader
2 Needles Threading that is fast, easy and done with a simple push of a lever.
Color Coded Thread Paths
Threading is fast and easy with the fool-proof, color-coded thread path system. Just follow the color indicators and lay thread into the guides. Fast and Easy!
Differential Feed Adjustment
Keep things moving along evenly, or create fashion techniques, like lettuce edges, with the easy to use Differential Feed dial.
Easy Cutting Width Adjustment
The lower knife cutting width easily and quickly adjusts with the turn of the dial allowing you to create perfect seams and rolled edges.
Flip and Roll
Automatic rolled hemming can be created quickly and easily with a flip of a switch. No need to change the needle plate or foot - Just Flip and Roll!
Front Extra-High Foot Lift
The Extra-High front foot lift option allows for thick fabric, or layers of fabric to be handle with ease. The adjustable foot pressure dial allows for foot presser to be increased or decreased to handle any fabric.
Heavy Duty Upper & Lower Knife System
The knife system operates with a dedicated drive to assure consistent and smooth cutting for both light and heavy weight fabrics - so all fabric edges can be trimmed safely and professionally.
Lay-In Threading Threading is a breeze
The lay-in system lets you thread quickly and easily. The color coded numbered threading system, takes the guesswork out of threading.
Multi-Function Presser Foot
The multipurpose presser foot allows you to create overlock stitches and add tape, elastic, ribbon, or sequins to your creations. Snap-on presser feet mean that you can easily change from the multi-purpose foot to one of the Juki Specialty feet and expand the creative potential.
Safety First!
Micro safety switches on the front and side covers provide extra safety when sewing. If the covers are open, the machine will not sew.
Serging Precision
The built-in seam guide takes the guesswork out of seam allowances. Just use the conveniently located gauge on the guard cover and serge away, creating accurate seam allowances as you go.
Super Easy Looper Threading
The lower looper threader disengages for fast, easy looper threading, in seconds. Just slide the thread into the slot and snap the looper into place.
Up and Out of the Way
Up and Out of the Way The upper knife arm can be effortlessly released with a press of a button to provide more sewing room. This is useful when working in coverstitch mode, or when do not need to trim the fabric edge.
Accessories
Standard and optional attachments to enhance your sewing capabilities
A15016550B0A
Standard Presser Foot *Standard
This presser foot is used for regular overlock stitching. It can also be used for sewing in tape while overlocking the edge of the fabric.
A9810-634-0A0A
Blind Stitch Presser Foot (for Right Needle) *Option
This presser foot is used to sew blind hem stitching while overlocking the edge of the fabric.
A9521-634-0A0A
Universal Blind Stitch Presser Foot (For Right & Left Needle) *Option
This presser foot is used to sew blind hem stitching, decorative flatlock or pintucks.
Load more

Overlock

MO-734DE

2-Needle, 2/3/4 Thread Overlock with Differential Feed and Automatic Needle Threader
Product overview
2-Needle, 2/3/4 Thread Overlock with Differential Feed and Automatic Needle Threader
MO-734DE
Advance Serging Technology
Dazzle Your Family and Friends with Design Innovations
Superior Performance Features
Leader in Sewing Machine Technology
Specification
All Functions
Automatic Needle Threader
2 Needles Threading that is fast, easy and done with a simple push of a lever.
Color Coded Thread Paths
Threading is fast and easy with the fool-proof, color-coded thread path system. Just follow the color indicators and lay thread into the guides. Fast and Easy!
Differential Feed Adjustment
Keep things moving along evenly, or create fashion techniques, like lettuce edges, with the easy to use Differential Feed dial.
Easy Cutting Width Adjustment
The lower knife cutting width easily and quickly adjusts with the turn of the dial allowing you to create perfect seams and rolled edges.
Flip and Roll
Automatic rolled hemming can be created quickly and easily with a flip of a switch. No need to change the needle plate or foot - Just Flip and Roll!
Front Extra-High Foot Lift
The Extra-High front foot lift option allows for thick fabric, or layers of fabric to be handle with ease. The adjustable foot pressure dial allows for foot presser to be increased or decreased to handle any fabric.
Heavy Duty Upper & Lower Knife System
The knife system operates with a dedicated drive to assure consistent and smooth cutting for both light and heavy weight fabrics - so all fabric edges can be trimmed safely and professionally.
Lay-In Threading Threading is a breeze
The lay-in system lets you thread quickly and easily. The color coded numbered threading system, takes the guesswork out of threading.
Multi-Function Presser Foot
The multipurpose presser foot allows you to create overlock stitches and add tape, elastic, ribbon, or sequins to your creations. Snap-on presser feet mean that you can easily change from the multi-purpose foot to one of the Juki Specialty feet and expand the creative potential.
Safety First!
Micro safety switches on the front and side covers provide extra safety when sewing. If the covers are open, the machine will not sew.
Serging Precision
The built-in seam guide takes the guesswork out of seam allowances. Just use the conveniently located gauge on the guard cover and serge away, creating accurate seam allowances as you go.
Super Easy Looper Threading
The lower looper threader disengages for fast, easy looper threading, in seconds. Just slide the thread into the slot and snap the looper into place.
Up and Out of the Way
Up and Out of the Way The upper knife arm can be effortlessly released with a press of a button to provide more sewing room. This is useful when working in coverstitch mode, or when do not need to trim the fabric edge.
Specification
4-Thread Overlock
Yes
3-Thread Overlock
Yes
2-Thread Overcast
Yes
3-Thread Flatlock
Yes
3-Thread Narrow Overlock
Yes
3-Thread Rolled Hem
Yes
2-Thread Chainstitch
No
5-Thread Safety Stitch
No
3-Needle Coverstitch
No
2-Needle Coverstitch
No
Dimensions
300(W)x260(D)x290(H) mm
Weight
8.4 kg (18.52 Lb)
Number of Needle
1, 2
Differential Feed
0.7-2.0 Ratio
Sewing Speed
1500 sti/min
Automatic Needle Threader
Yes
Adjusting Presser Foot Pressure
Yes
Automatic Rolled Hemming
Yes
Deactive Upper Knife
Yes
2/3 Thread Conversion
Yes
Presser Foot Lift
5 mm
Standard Accessories
