HZL-DX5
Exclusive Model for Dedicated Markets

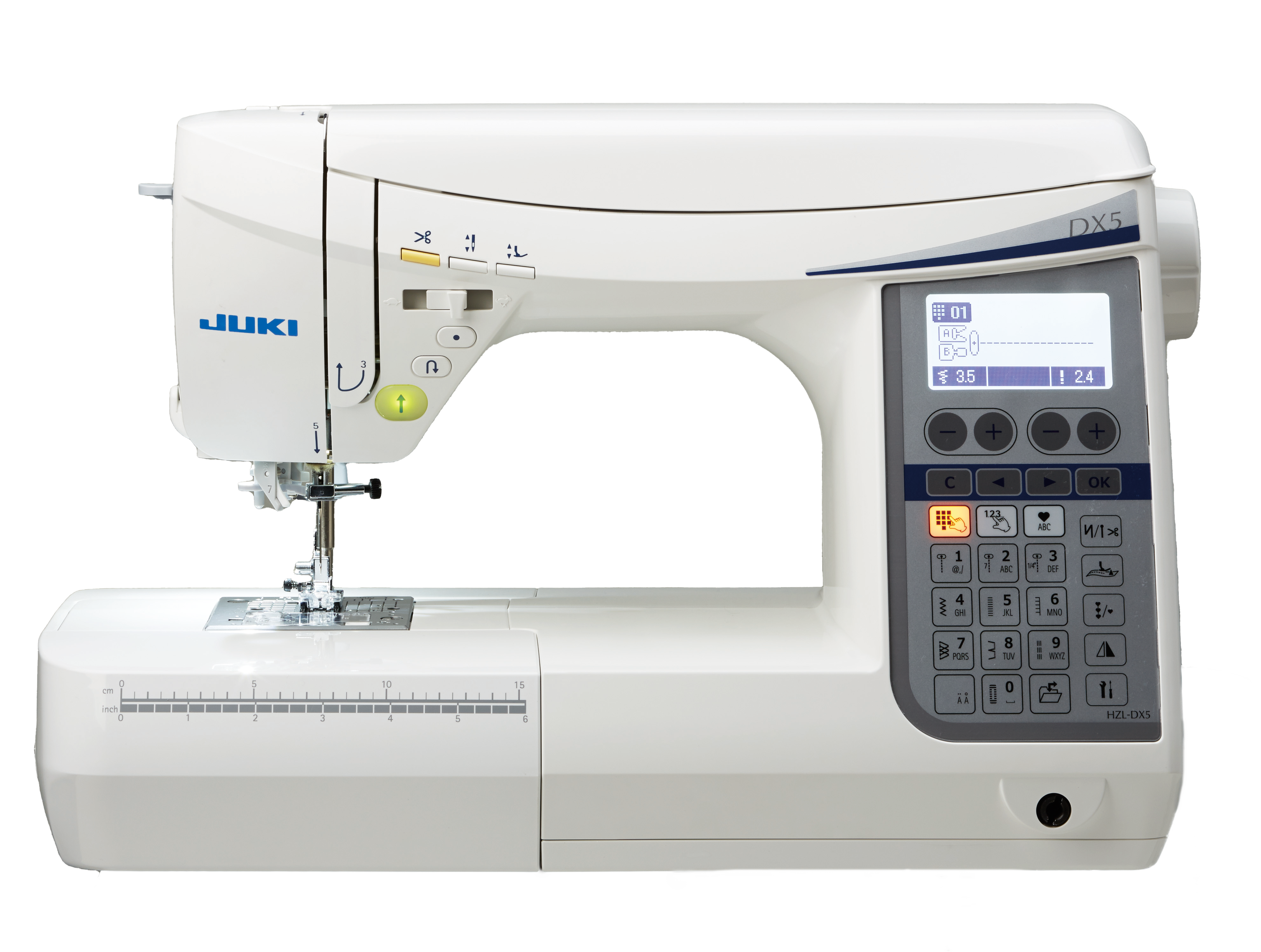

The Juki HZL-DX5 series is the top of the line computer controlled household sewing machine for professionals and hobbyist alike.
The Juki HZL-DX5 series is the top of the line computer controlled household sewing machine for professionals and hobbyist alike.
Where To Buy
Product overview
Enjoy the satisfaction of creating your own design while using high quality finishes. Get the most out of your sewing experience with the New HZL-DX Series and turn your creations into masterpieces.
HZL-DX5
Achieving Perfection Stitch by Stitch
185 Sewing Patterns (3 fonts)
Enjoy the Freedom to Create and Design with Ease and Satisfaction
Sewing Machine that Meet Your Needs
Bobbin Winder with Independent Motor
To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time.
Box Feed
The Box feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.
Buttonhole Sensor
Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and the left sides.
See All Functions List
Specification
Specification
Sewing Speed
1050 sti/min
Wide Table
Option
LED Lights
1
Dimensions
445(W)x210(D)x291(H) mm
Weight
10,3kg (21,6 Lb)
Stitch Patterns
185
Buttonholing
Automatic sensor method
Automatic Needle Threader
Yes
Knee-Lifting Lever
Option
Needle
HA x 1#11, #14, #16
Number of fonts
4
All Functions
Bobbin Winder with Independent Motor
To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time.
Box Feed
The Box feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.
Buttonhole Sensor
Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and the left sides.
Float Function
By pressing the float button, you can sew with the presser foot slightly raised. By raising the presser foot to float you can sew fabric without pushing layers or creating uneven seams.
Presser Foot Pivot Function
When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers.
Straight Stitch Slide Plate
Simply slide the front lever to switch to a single needle hole. Sew the lightest fabrics with perfect needle permeation. The single needle plate will not allow fabrics to be pushed into the needle hole. Free motion stitch with precision and perfection. Sew with confidence, when the single needle hole plate is set, only the straight stitch patterns can be selected.
Large Sewing Space
Enjoy extra space and comfort by adding the accessory table while sewing or quilting.
Automatic Needle Threader
Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.
Low-Speed Inching Sewing
By pressing and holding the needle up/down button, you can sew slowly. Sew corners, stops and starts with precision.
Foot Switch Function
Allowing for greater versatility, Juki now offers assigned foot control options.
Accessories
Standard and optional attachments to enhance your sewing capabilities
Buttonhole Presser Foot *Standard
For attachThis presser foot is used to automatically sew buttonholes.
Manual BH Presser Foot (Decorate Stitch Presser)
For decorative stitches, letters and manual buttonholes
Blind Stitch Presser Foot *Option
The presser foot is used for sewing blind hem, which are sewn along the hems of pants and skirts to be invisible from the right side of the fabric.
Load more
Standard Accessories
Standard presser foot
Zipper presser foot
Overcasting presser foot
Blind stitch presser foot
Buttonhole presser foot
Manual buttonhole presser foot
Bobbin (x4)
Needle set
Screwdriver T shape
Ripper
Cleaning brush
Spool cap (large)
Spool cap (middle)
Spool cap (small)
Auxiliary spool pin
Foot controller
Hard cover
Twin needle
