HZL-DX7
Where To Buy
HZL-DX7
Exclusive Model for Dedicated Markets

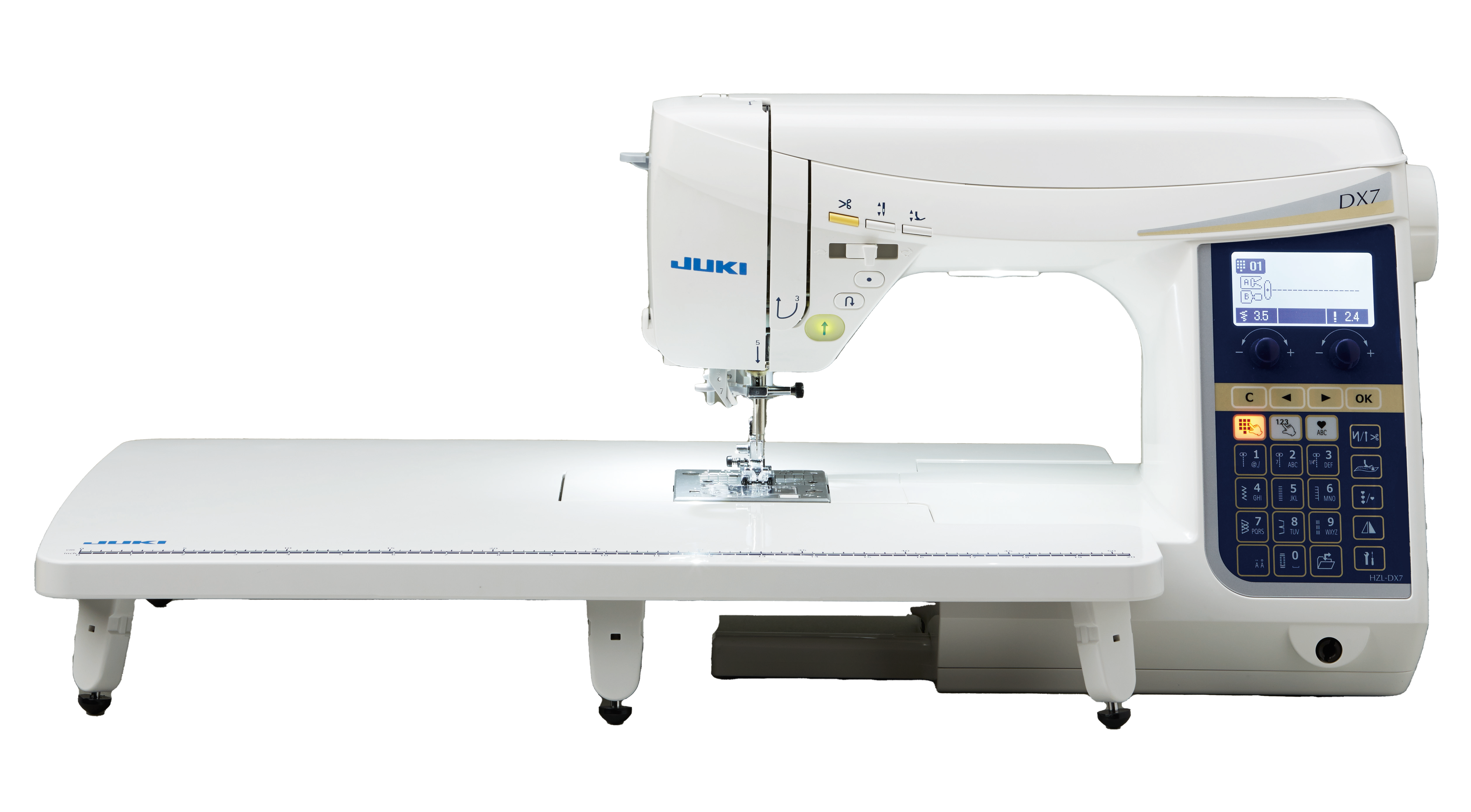

Sewing Machines that meet your needs to achieve perfection. The Juki HZL-DX series is the top the line computer controlled household sewing machine for professionals and hobbyist alike.
Where To Buy
Learn More
Product overview
Enjoy the satisfaction of creating your own design while using high quality finishes. Get the most out of your sewing experience with the New HZL-DX Series and turn your creatins into masterpieces.
HZL_DX7
Achieving Perfection Stitch by Stitch
287 Stitch Patterns
Sewing Machines that Meet Your Needs
Enjoy the Freedom to Create and Design
Bobbin Winder with Independent Motor
To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time.
Box Feed
The Box feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.
Buttonhole Sensor
Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and the left sides.
See All Functions List
Specification
Specification
Buttonhole
Automatic (sensor system) with clamping plate
Sewing Speed
1050 sti/min
Wide Table
Option
LED Lights
2
Dimensions
445(W)x210(D)x291(H) mm
Weight
10,3kg (21,6 Lb)
Stitch Patterns
287
Buttonholing
Automatic
Thread Trimming Function
yes
Automatic Needle Threader
Yes
Thread Tension
Automatic
Drop Feed
Yes
Quick Bobbin Preparation
Yes
Number of fonts
4
Start/stop button
Green: Ready to start and/or while sewing, Red: Not ready to start, Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing
Feed mechanism
Box feed mechanism
Bobbin Thread Winder
Bobbin winder with independent motor
Memory function
10 patterns
All Functions
Bobbin Winder with Independent Motor
To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time.
Box Feed
The Box feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.
Buttonhole Sensor
Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and the left sides.
Float Function
By pressing the float button, you can sew with the presser foot slightly raised. By raising the presser foot to float you can sew fabric without pushing layers or creating uneven seams.
Presser Foot Pivot Function
When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers.
Quick Bobbin Preparation
The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.
Large Sewing Space
Enjoy extra space and comfort by adding the accessory table while sewing or quilting.
Accessories
Standard and optional attachments to enhance your sewing capabilities
40080966 HZL-DX Series
Buttonhole Presser Foot *Standard
For attachThis presser foot is used to automatically sew buttonholes.
40112905 HZL-DX Series
Manual BH Presser Foot (Decorate Stitch Presser)
For decorative stitches, letters and manual buttonholes
40112904 HZL-DX Series
Blind Stitch Presser Foot *Option
The presser foot is used for sewing blind hem, which are sewn along the hems of pants and skirts to be invisible from the right side of the fabric.
Load more
Standard Accessories
Standard presser foot
Zipper presser foot
Overcasting presser foot
Blind stitch presser foot
Buttonhole presser foot
Manual buttonhole presser foot
Bobbin (x4)
Needle set
Screwdriver T shape
Ripper
Cleaning brush
Spool cap (large)
Spool cap (middle)
Spool cap (small)
Auxiliary spool pin
Hard cover
