AB-1351
Automatic 1-needle Belt-Loop Attaching Machine
AB-1351 is the world's first belt-loop attaching machine with the ability to solely sew seven different belt-loop sewing patterns.
Contact Agent
See Specification
2.500
sti/min
Belt-loop
attaching machine
Product overview
AB-1351 is the world's first belt-loop attaching machine with the ability to solely sew seven different belt-loop sewing patterns! The belt-loop sewing shape and sewing size can be easily changed through the operation panel.This machine not only reduces the time required for the belt-loop attaching process, but also achieves labor-saving, such as the elimination of the previous process (belt-loop cutting). Productivity can be dramatically increased when one operator attends to two AB-1351 units.JUKI's unique belt-loop feeding/folding mechanism helps achieve beautifully-attached consistent-quality belt-loops with constant sewing dimensions (amount of slack).
Quality Improvement
JUKI's unique belt-loop feeding/folding mechanism helps achieve beautifully-attached consistent-quality belt-loops with constant sewing dimensions (amount of slack).

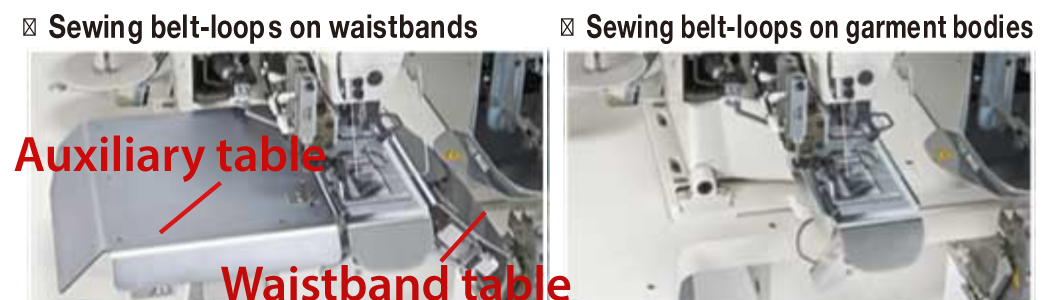

The machine can be used for two different sewing styles by installing / removing the sub-tables.
The machine can be used for two different sewing styles by installing / removing the sub-tables. The sewing machine can be used for two different sewing styles,i.e., for sewing belt-loops on waistbands (flat sewing) and for sewing belt-loops on garment bodies (tubular sewing), by installing/removing the sub-tables (auxiliary table and waistband table). The position of the start switch can also be changed. (The machine is provided with sub-tables as standard accessories).
Belt-loop size adjustment and belt-loop specification changing have been digitalized.
The AB-1351 has adopted, as its operation panel, the IP-420 which has operation panel, the IP-420 which has a large color liquid crystal touch panel. With this operation panel, the operator can change the belt-loop shape or sewing pattern, set the belt-loop sewing position and carry out cycle sewing. When the belt-loop width is changed, the bartacking width is changed, the bartacking width can be automatically changed according to the precentage of change of the belt-loop width. Digitalization helps substantially reduce the time required for sewnig data adjustment.
Improved productivity
This machine not only reduces the time required for the belt-loop attaching process, but also achieves labor-saving, such as the elimination of the previous process (belt-loop cutting). Productivity can be dramatically increased when one operator attends to two AB-1351 units.
Quality production without relying on operator skill
This machine allows an inexperienced operator to sew various types of belt-loops. The operator only needs to place a garment body on the machine and press the switch. The belt-loop sewing shape and sewing size can be easily changed through the operation panel.

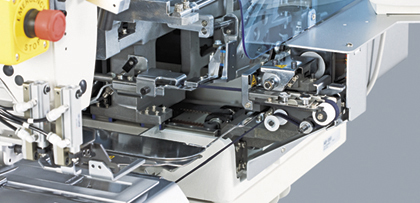

JUKI's unique belt-loop feeder unit
The belt-loop feeder unit incorporates JUKI's unique twin system. It is able to feed belt-loops with consistency even when a soft and elastic material is used. The belt-loop feeder unit is arranged in front of the main body of the sewing machine. This allows the operator to insert belt-loops from the front of the machine. In addition, the operator can visually check the belt-loop state whenever necessary, even during sewing.
Belt-loop folding mechanism which supports various belt-loop specifications (patent pending)
This is the world's first automatic belt-loop attaching machine which can be used for seven different belt-loop attaching processes. The main mechanisms have been computerized to develop a belt-loop attaching machine which sews diversified belt-loop styles.
Download files (1)
Apparel Sewing machines
AB-1351
Automatic 1-needle Belt-Loop Attaching Machine
AB-1351 is the world's first belt-loop attaching machine with the ability to solely sew seven different belt-loop sewing patterns.
2.500
sti/min
Belt-loop
attaching machine
Product overview
AB-1351 is the world's first belt-loop attaching machine with the ability to solely sew seven different belt-loop sewing patterns! The belt-loop sewing shape and sewing size can be easily changed through the operation panel.This machine not only reduces the time required for the belt-loop attaching process, but also achieves labor-saving, such as the elimination of the previous process (belt-loop cutting). Productivity can be dramatically increased when one operator attends to two AB-1351 units.JUKI's unique belt-loop feeding/folding mechanism helps achieve beautifully-attached consistent-quality belt-loops with constant sewing dimensions (amount of slack).
Quality Improvement
JUKI's unique belt-loop feeding/folding mechanism helps achieve beautifully-attached consistent-quality belt-loops with constant sewing dimensions (amount of slack).
The machine can be used for two different sewing styles by installing / removing the sub-tables.
The machine can be used for two different sewing styles by installing / removing the sub-tables. The sewing machine can be used for two different sewing styles,i.e., for sewing belt-loops on waistbands (flat sewing) and for sewing belt-loops on garment bodies (tubular sewing), by installing/removing the sub-tables (auxiliary table and waistband table). The position of the start switch can also be changed. (The machine is provided with sub-tables as standard accessories).
Belt-loop size adjustment and belt-loop specification changing have been digitalized.
The AB-1351 has adopted, as its operation panel, the IP-420 which has operation panel, the IP-420 which has a large color liquid crystal touch panel. With this operation panel, the operator can change the belt-loop shape or sewing pattern, set the belt-loop sewing position and carry out cycle sewing. When the belt-loop width is changed, the bartacking width is changed, the bartacking width can be automatically changed according to the precentage of change of the belt-loop width. Digitalization helps substantially reduce the time required for sewnig data adjustment.
Improved productivity
This machine not only reduces the time required for the belt-loop attaching process, but also achieves labor-saving, such as the elimination of the previous process (belt-loop cutting). Productivity can be dramatically increased when one operator attends to two AB-1351 units.
Quality production without relying on operator skill
This machine allows an inexperienced operator to sew various types of belt-loops. The operator only needs to place a garment body on the machine and press the switch. The belt-loop sewing shape and sewing size can be easily changed through the operation panel.
JUKI's unique belt-loop feeder unit
The belt-loop feeder unit incorporates JUKI's unique twin system. It is able to feed belt-loops with consistency even when a soft and elastic material is used. The belt-loop feeder unit is arranged in front of the main body of the sewing machine. This allows the operator to insert belt-loops from the front of the machine. In addition, the operator can visually check the belt-loop state whenever necessary, even during sewing.
Belt-loop folding mechanism which supports various belt-loop specifications (patent pending)
This is the world's first automatic belt-loop attaching machine which can be used for seven different belt-loop attaching processes. The main mechanisms have been computerized to develop a belt-loop attaching machine which sews diversified belt-loop styles.
Specification
All Functions
Specification
Max Sewing Speed
2500sti/min
Hook Type
Standard shuttle hook
Number of Needles
1-Needle
Needle
DP x 17 (#14)
Machine Head
LK-1961/ABH (exclusive machine head based on the LK-1900A, semi-dry-head)
Compressed Air / Air Consumption
0.5MPa (5kg/cm2), 10Nl/min
Weight
205.5 kg
Dimensions
1,200(W) × 850(D) × 1,210mm(H)
Stored Bartacking Patterns (Stitches)
Linear bartacking (12, 15, 21, 28, 36, 41), Zigzag bartacking (28, 36, 42, 56, 64)
Bartacking Size Length-Wise
0-3.2 mm (0"-1/8") (adjustable in increments of 0.1 mm)
Bartacking Size Cross-Wise
6-23 mm (15/16"- 57/64") (adjustable in increments of 0.1 mm)
Belt-Loop Width
8-20 mm (5/16"- 25/32")
Thread
Spun 80Nm (recommend), Filament 80Nm (80Nm=#50)
Standard Accessories
