Flat-Bed Sewing Machine

The machine is capable of making well-tensed, perfect finished seams, regardless of the type of heavy materials.

The machine has been designed for reduced vibration, noise and upgraded reliability by modifying the low-tension sewing mechanism.

The machine head was remodeled to achieve an optimally balanced and highly rigid head frame. Its reduced vibration, noise and easy operation of the feed lever at the time of reverse stitching guarantees easy operation and excellent sewing effects.

With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness. Rectangular feeding motion promises the consistent feeding of materials of all thicknesses without stitch gathering.

DNU-1541/X55245 is able to sew a broad range of materials from genuine leather materials to lining materials. Excellent seam tightness on genuine leather and far less puckering on lining.

The machine head is designed to optimum balance, thereby reducing vibration and noise in order to have comfortable working environment for the operator.

A high & long arm of DU-1481-7 together with its top & bottom feed mechanism and 16 mm lift of the presser foot dramatically increase performance when sewing large, heavy-weight materials such as large products such as sofas and car seats.

The maximum stitch length is 10 mm. The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering. With its sufficient needlebar stroke of 38 mm and long 190R needle, the machine supports the sewing of extra heavy materials. The machine comes with an extra large steel handwheel with a diameter as large as cp175.

Thanks to Automatic Thread Trimmer With a rigid knife and improved cam shape, LU-1511N-7 achieves consistent trimming regardless of thickness thereby improving thread consumption efficiency.

The machine is equipped with a rectangular feeding motion mechanism which promises consistent feed of materials of all thickness without stitch gathering.

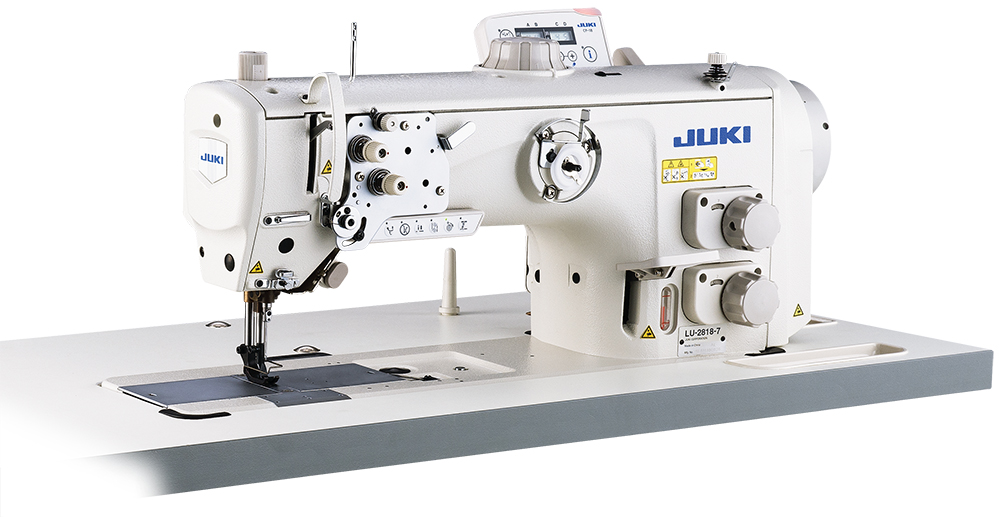

The long distance from the machine arm to the needle adopted in LU-2800 Series contributes to improved workability.Mechanisms in this lockstitch machine have been designed taking maintainability and environmental friendliness into consideration.

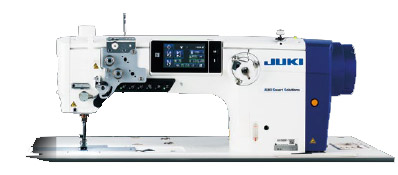

Inspire the Knowledge in Sewing Adjustment Epoch-making Sewing Systems in history.Digital sewing system proposes the production process added with a computerized new value to all the people who engage in production.
