LU-1509N Series
1-needle, Unison-feed, Lockstitch Machine with Verticalaxis Large Hook
The maximum stitch length is 10 mm. The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering. With its sufficient needlebar stroke of 38 mm and long 190R needle, the machine supports the sewing of extra heavy materials. The machine comes with an extra large steel handwheel with a diameter as large as cp175.
The basic lockstitch machine and its outstanding response to the sewing of heavy materials
Contact Agent
See Series Specification (2)
Maximum Stitch Length (forward and backward)
10
mm
Vertical-Axis Double-Capacity Hook
Presser Foot Lift
16
mm
Product overview
JUKI's unique feed mechanism promises excellent efficiency of feed. The LU-1509N is applicable to an extended range of extra heavy materials for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.

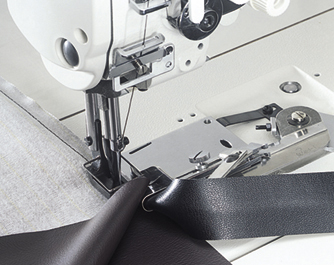

The mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without stitch gathering. The lower orbit of the feed dog prevents the material from flopping and reduces operating noise and vibration.
The Alternating Vertical Movement Mechanism
The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot regardless material thickness. Even when a heavy-weight material is being used, the presser foot comes into contact with the material at exactly the same time that it does when sewing lighter-weight sections of the material. As a result, the walking foot retains the material with a consistent pressure to prevent irregular stitches.
Dual-Tension Mechanism
The 1-needle type machine has adopted a dual-tension mechanism, with which the machine can support high-tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials from light- to heavy-weight.
Maximum Stitch Length
The maximum stitch length is 10mm. The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering. With its sufficient needle bar stroke of 38mm and long 190R needle, the machine supports the sewing of extra heavy materials. The machine comes with an extra-large steel handwheel with a diameter as large as cp175.
Download files (1)
Non-Apparel Sewing machines
LU-1509N Series
1-needle, Unison-feed, Lockstitch Machine with Verticalaxis Large Hook
The maximum stitch length is 10 mm. The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering. With its sufficient needlebar stroke of 38 mm and long 190R needle, the machine supports the sewing of extra heavy materials. The machine comes with an extra large steel handwheel with a diameter as large as cp175.
The basic lockstitch machine and its outstanding response to the sewing of heavy materials
Maximum Stitch Length (forward and backward)
10
mm
Vertical-Axis Double-Capacity Hook
Presser Foot Lift
16
mm
Product overview
JUKI's unique feed mechanism promises excellent efficiency of feed. The LU-1509N is applicable to an extended range of extra heavy materials for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.
The mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without stitch gathering. The lower orbit of the feed dog prevents the material from flopping and reduces operating noise and vibration.
The Alternating Vertical Movement Mechanism
The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot regardless material thickness. Even when a heavy-weight material is being used, the presser foot comes into contact with the material at exactly the same time that it does when sewing lighter-weight sections of the material. As a result, the walking foot retains the material with a consistent pressure to prevent irregular stitches.
Dual-Tension Mechanism
The 1-needle type machine has adopted a dual-tension mechanism, with which the machine can support high-tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials from light- to heavy-weight.
Maximum Stitch Length
The maximum stitch length is 10mm. The complete rectangular feed locus enables accurate feed of extra heavy materials while preventing stitch gathering. With its sufficient needle bar stroke of 38mm and long 190R needle, the machine supports the sewing of extra heavy materials. The machine comes with an extra-large steel handwheel with a diameter as large as cp175.
