DNU-1541, DNU-1541/X55245
1-needle, Unison-feed, Lockstitch Machine with Double-capacity Hook

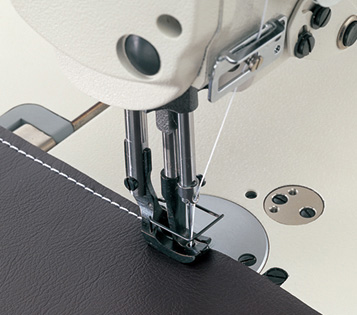

DNU-1541/X55245 is able to sew a broad range of materials from genuine leather materials to lining materials. Excellent seam tightness on genuine leather and far less puckering on lining.
With its reliable feed and consistent seam quality, lockstitch machine responds outstandingly to the sewing of heavy materials
Contact Agent
See Series Specification (3)
Maximum Sewing Speed
2.500
sti./min.
Horizontal-Axis Full-Rotary Double-Capacity Hook
Presser Foot Lift
16
mm
Product overview
With its larger needle bar stroke, higher presser foot lift and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness. The ratio between 6.5mm alternating vertical movements of the walking foot and presser foot remain unchanged regardless material thickness. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the machine sews multi-layered material with consistent stitching pitch while preventing stitch gathering.
The stitch length can be easily selected by the stitch dial. The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large hand wheel (∅160mm).
Lubricating Mechanism
The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. A walking foot mechanism is built into the machine arm to prevent oil from scattering.
Safety Mechanism
DNU-1541S comes with safety mechanism which will automatically operate to prevent the machine from being damaged when the thread is caught in the hook or any other sewing trouble occurs.
Download files (1)
Non-Apparel Sewing machines
DNU-1541, DNU-1541/X55245
1-needle, Unison-feed, Lockstitch Machine with Double-capacity Hook
DNU-1541/X55245 is able to sew a broad range of materials from genuine leather materials to lining materials. Excellent seam tightness on genuine leather and far less puckering on lining.
With its reliable feed and consistent seam quality, lockstitch machine responds outstandingly to the sewing of heavy materials
Maximum Sewing Speed
2.500
sti./min.
Horizontal-Axis Full-Rotary Double-Capacity Hook
Presser Foot Lift
16
mm
Product overview
With its larger needle bar stroke, higher presser foot lift and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness. The ratio between 6.5mm alternating vertical movements of the walking foot and presser foot remain unchanged regardless material thickness. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the machine sews multi-layered material with consistent stitching pitch while preventing stitch gathering.
The stitch length can be easily selected by the stitch dial. The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large hand wheel (∅160mm).
Lubricating Mechanism
The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. A walking foot mechanism is built into the machine arm to prevent oil from scattering.
Safety Mechanism
DNU-1541S comes with safety mechanism which will automatically operate to prevent the machine from being damaged when the thread is caught in the hook or any other sewing trouble occurs.
