LU-2800 Series
Semi-dry Direct-drive 1 and 2-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook
The long distance from the machine arm to the needle adopted in LU-2800 Series contributes to improved workability.Mechanisms in this lockstitch machine have been designed taking maintainability and environmental friendliness into consideration.
LU-2800 Series - a unison-feed, lockstitch machine with substantially improved functions and performance
Contact Agent
See Series Specification (2)
Sewing Speed
3.000
sti./min.
Needle Thread Clamping Device
Presser Foot Lift
20
mm
Product overview

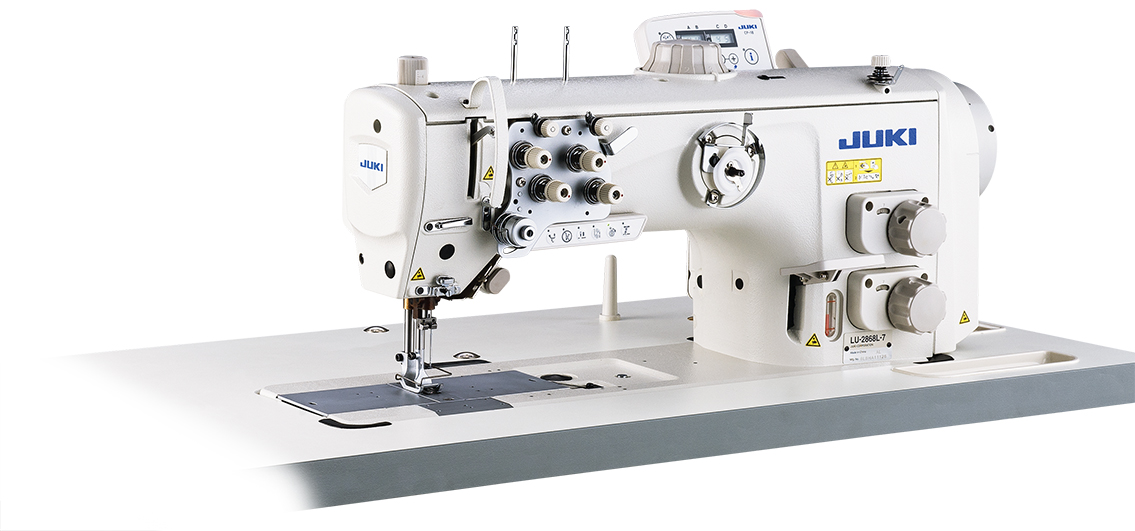

High and long arm has been adopted. The long distance from the machine arm to the needle contributes to improved workability. The LU-2800 Series is a unison-feed, lockstitch machine with a vertical-axis large hook which is provided with substantially improved functions and performance.
Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot, the stitch length, single or souble tension can be set easily through Multi-functional 6-string.
The sewing machine has adopted a feed mechanism which keeps the ratio between the amount of the vertical movement of the walking foot and the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum.
A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for Non-apparel sewing, can be carried out with ease.
The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
Download files (1)
Non-Apparel Sewing machines
LU-2800 Series
Semi-dry Direct-drive 1 and 2-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook
The long distance from the machine arm to the needle adopted in LU-2800 Series contributes to improved workability.Mechanisms in this lockstitch machine have been designed taking maintainability and environmental friendliness into consideration.
LU-2800 Series - a unison-feed, lockstitch machine with substantially improved functions and performance
Sewing Speed
3.000
sti./min.
Needle Thread Clamping Device
Presser Foot Lift
20
mm
Product overview
High and long arm has been adopted. The long distance from the machine arm to the needle contributes to improved workability. The LU-2800 Series is a unison-feed, lockstitch machine with a vertical-axis large hook which is provided with substantially improved functions and performance.
Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot, the stitch length, single or souble tension can be set easily through Multi-functional 6-string.
The sewing machine has adopted a feed mechanism which keeps the ratio between the amount of the vertical movement of the walking foot and the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum.
A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for Non-apparel sewing, can be carried out with ease.
The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
Specification
All Functions
Specification
Standard Accessories
