LU-1511N-7
1-needle, Unison-feed, Lockstitch Machine with Verticalaxis Large Hook
Thanks to Automatic Thread Trimmer With a rigid knife and improved cam shape, LU-1511N-7 achieves consistent trimming regardless of thickness thereby improving thread consumption efficiency.
The basic lockstitch machine with automatic thread trimmer and outstanding response to the sewing of medium to heavy materials
Contact Agent
See Specification
Stitch Length
9
mm
Sewing Speed
3.000
sti./min.
Presser Foot Lift
16
mm
Product overview
This one-needle machine with a Thread Trimmer utilizes a basic performance which matches best to the sewing of medium to heavy materials. The machine’s rectangular feeding motion promises the consistent feeding of materials of all thicknesses without stitch gathering.
The 1-needle type machine is equipped with a bottom-feed micro-adjustment mechanism with the needle feed amounts fixed. This helps prevent irregular stitches which are free from pitch errors.

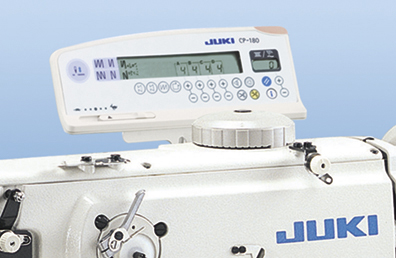

Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.

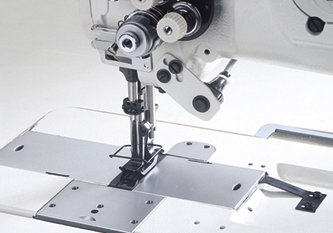

The vertical strokes of the presser foot and walking foot (their alternating vertical movement) can be easily changed using a large dial mounted on the top surface of the machine head.
In addition, the sewing speed is automatically adjusted with the set value. With this feature, ideal sewing conditions are always maintained.
Download files (1)
Non-Apparel Sewing machines
LU-1511N-7
1-needle, Unison-feed, Lockstitch Machine with Verticalaxis Large Hook
Thanks to Automatic Thread Trimmer With a rigid knife and improved cam shape, LU-1511N-7 achieves consistent trimming regardless of thickness thereby improving thread consumption efficiency.
The basic lockstitch machine with automatic thread trimmer and outstanding response to the sewing of medium to heavy materials
Stitch Length
9
mm
Sewing Speed
3.000
sti./min.
Presser Foot Lift
16
mm
Product overview
This one-needle machine with a Thread Trimmer utilizes a basic performance which matches best to the sewing of medium to heavy materials. The machine’s rectangular feeding motion promises the consistent feeding of materials of all thicknesses without stitch gathering.
The 1-needle type machine is equipped with a bottom-feed micro-adjustment mechanism with the needle feed amounts fixed. This helps prevent irregular stitches which are free from pitch errors.
Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.
The vertical strokes of the presser foot and walking foot (their alternating vertical movement) can be easily changed using a large dial mounted on the top surface of the machine head.
In addition, the sewing speed is automatically adjusted with the set value. With this feature, ideal sewing conditions are always maintained.
Specification
All Functions
Specification
Application
Medium to heavy-weight material
Max. Sewing Speed
3000 sti./min.
Feed Type
Unison-feed
Hook Type
Vertical-axis hook (large)
Number of Needles
1-Needle
Other
Thread Trimming
Max. Stitch Length
9 mm
Presser Foot Lift
16 mm
Standard Accessories
