DU-1181N
1-needle, Top and Bottom-feed, Lockstitch Machine with double capacity hook
The machine head is designed to optimum balance, thereby reducing vibration and noise in order to have comfortable working environment for the operator.
Lockstitch machine with a range of functions for excellent operability and best sewing results
Contact Agent
See Specification
Presser Foot Lift
15 mm
Double Capacity Hook
Automatic Lubricating Mechanism
Product overview
With its strong top and bottom feed mechanism, the machine ensures the smooth feeding of hard-to-feed materials or multi – layered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine.
Features

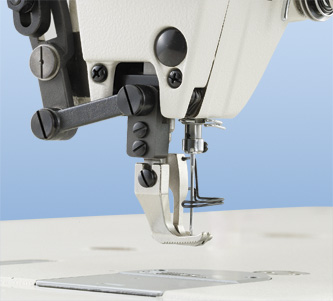

DU-1181N comes with 15mm lift of the presser foot, by the knee lifter, to support processes such as piping and tape-attaching and a horizontal-axis double-capacity hook to decrease the frequency of bobbin thread changing and increased efficiency.
Lubrication System
A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable. The top feed mechanism employs a grease tank and oil wick lubrication mechanism.
Download files (1)
Non-Apparel Sewing machines
DU-1181N
1-needle, Top and Bottom-feed, Lockstitch Machine with double capacity hook
The machine head is designed to optimum balance, thereby reducing vibration and noise in order to have comfortable working environment for the operator.
Lockstitch machine with a range of functions for excellent operability and best sewing results
Presser Foot Lift
15 mm
Double Capacity Hook
Automatic Lubricating Mechanism
Product overview
With its strong top and bottom feed mechanism, the machine ensures the smooth feeding of hard-to-feed materials or multi – layered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine.
Features
DU-1181N comes with 15mm lift of the presser foot, by the knee lifter, to support processes such as piping and tape-attaching and a horizontal-axis double-capacity hook to decrease the frequency of bobbin thread changing and increased efficiency.
Lubrication System
A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable. The top feed mechanism employs a grease tank and oil wick lubrication mechanism.
Specification
All Functions
Specification
Application
Medium to heavy-weight material
Max. Sewing Speed
2000 sti./min.
Feed Type
Top and Bottom feed
Hook Type
Horizontal-axis hook (large)
Lubrication
Automatic
Number of Needles
1-Needle
Max. Stitch Length
9 mm
Presser Foot Lift
15 mm
Standard Accessories
