AMB-289
Computer-controlled, High-speed, Single-thread Chainstitch, Button-neck-wrapping Machine
The machine comes with newly developed active-tension system ideal for the careful sewing of beautiful seams.
The range of applicable buttons is further extended.
Contact Agent
See Specification
Product overview
The machine demonstrates the highest productivity among button-neck-wrapping machines intended for men's and ladies' outer wear. A single machine unit permits the quick changeover of types of buttons to be sewn, i.e., flat buttons, shank button, marble buttons and stay buttons with a onetouch utility lever.

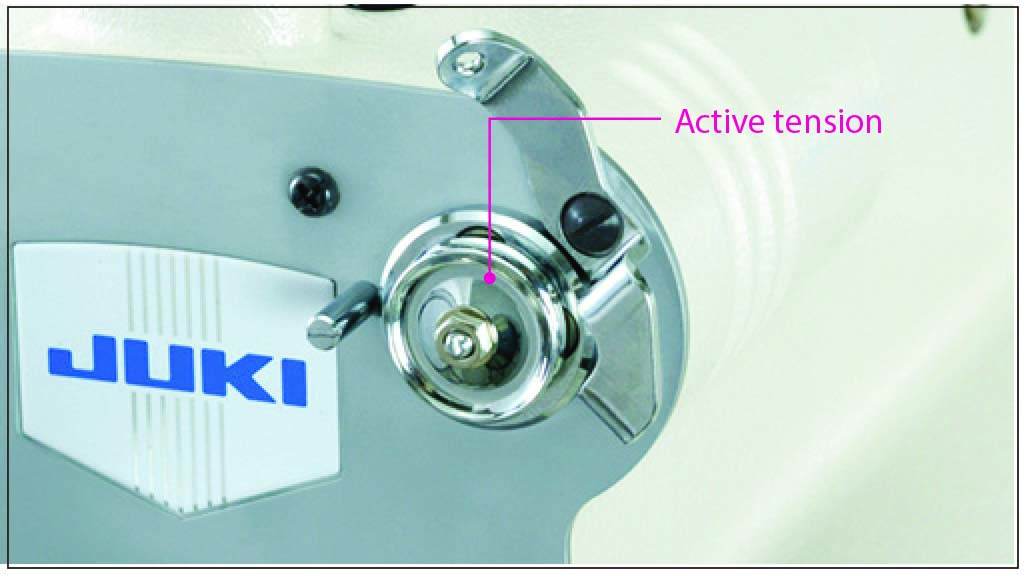

Newly developed active tension (electronic thread tension control system)
● The newly introduced active tension system further improves responsiveness and allows delicate tension setting when the user changes fabrics.
● Thread tensions for button sewing and neck wrapping can be separately set on the operation panel.
● The machine stores sewing conditions in memory on a pattern-by-pattern basis. Required sewing conditions can be exactly reproduced for every pattern.
● Thread tensions for button sewing and neck wrapping can be separately set on the operation panel.
● The machine stores sewing conditions in memory on a pattern-by-pattern basis. Required sewing conditions can be exactly reproduced for every pattern.
Superb functions for improving seam quality
● The remaining length of needle thread can be adjusted according to the type of material or thread to be used. It effectively prevents thread from slipping off the material at the start of sewing.
● The AMB-289 does not require the use of exclusive thread intended for button sewing. General-purpose cotton threads and spun threads are both applicable, depending on the type of material.
A full range of thread counts from #60 to #30 can be applied. This ensures use for diverse processes.
● The thread-trimming position is set to reduce the remaining length of thread on the material to a minimum.
● The machine incorporates a thread-fray prevention function that ensures the tying of strong and reliable knots at the last stitch.
● The number of stay stitches, which increases strength of button sewing stitches, can be set on the operation panel within the range of 0 and 3 stitches.
● The tucking depth is increased to 5mm to ensure a consistent tucking depth in soft materials such as knits.
● The feed accuracy is as high as 0.1mm. This promises an accurate needle entry position and tucking depth.
● The AMB-289 does not require the use of exclusive thread intended for button sewing. General-purpose cotton threads and spun threads are both applicable, depending on the type of material.
A full range of thread counts from #60 to #30 can be applied. This ensures use for diverse processes.
● The thread-trimming position is set to reduce the remaining length of thread on the material to a minimum.
● The machine incorporates a thread-fray prevention function that ensures the tying of strong and reliable knots at the last stitch.
● The number of stay stitches, which increases strength of button sewing stitches, can be set on the operation panel within the range of 0 and 3 stitches.
● The tucking depth is increased to 5mm to ensure a consistent tucking depth in soft materials such as knits.
● The feed accuracy is as high as 0.1mm. This promises an accurate needle entry position and tucking depth.
Cycle sewing

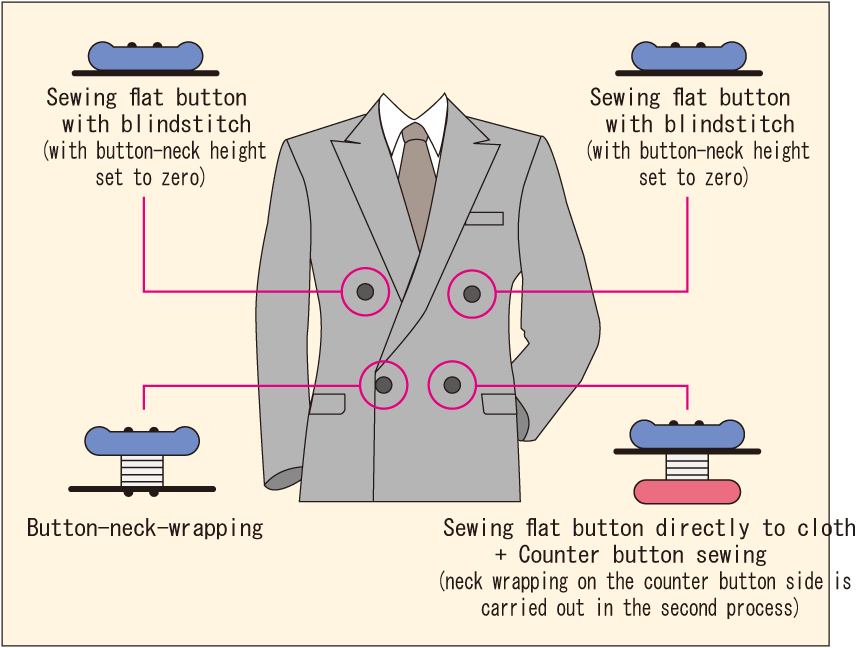

● The machine sews buttons on a double-breast suit, a garment that requires the sewing of different types of buttons, in a continuous manner.

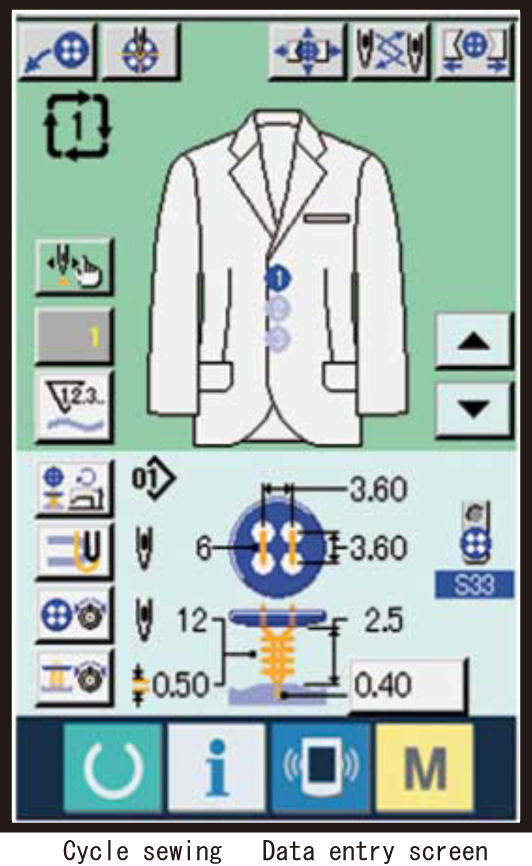

● Cycle sewing data can be set/edited with the sewing item graphically displayed on the operation panel (the number of buttons, button sewing locations, and sewing order of buttons).
● The button loader can feed two types of buttons in a single sewing cycle.
● Cycle sewing data can be set/edited with the sewing item graphically displayed on the operation panel (the number of buttons, button sewing locations, and sewing order of buttons).
● The button loader can feed two types of buttons in a single sewing cycle.
The machine comes with new functions to improve workability.
Dramatically reduced oil stains
● As the machine requires no lubrication, oil spatters and all other lubrication-related troubles are eliminated. Sewn garments have dramatically fewer oil stains as a result.
＊Periodical greasing is required for some of the mechanical structures. Dramatically reduced vibration and noise
● The adoption of the needle-throwing mechanism dramatically reduces the vibration and noise usually produced during the neck-wrapping procedure.
The machine is provided as standard with a button loader.
● The machine is provided as standard with a button feeder that lets the operator place the next buttons to be sewn during overlapping-style work.

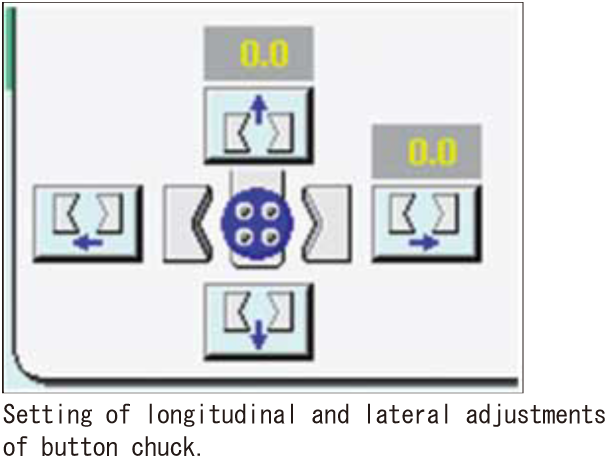

● The button-delivery position between the button loader and button chuck can be easily adjusted on the operation panel. No tools are required.
LED now adopted
The AMB-289 is provided as standard with an LED-type handy light and marking light. The sewing area is now brighter and more viewable than it would be under the incandescent light of a conventional machine. LED light also offer the advantage of a longer service life. The machine is optionally provided with a marking light for sewing flat buttons directly to cloth.
Convenient hand pulley
The hand pulley is mounted on the top of head. This makes it easy to check the needle entry point.

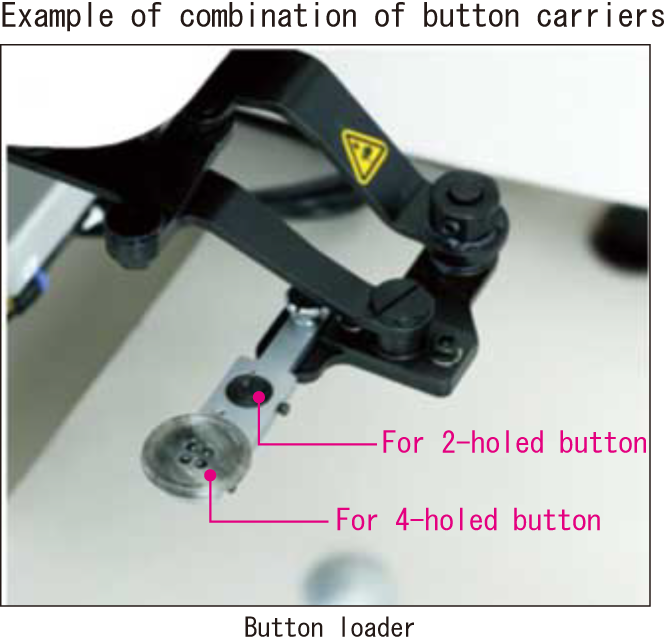

The button loader gauge for the conventional model can also be used with the AMB-289.
● The set pins and four-holed and two-holed button carriers used with the AMB-189NR (the conventional model provided with a button loader) can also be used with the AMB-289.
＊The AMB-289 requires dedicated set pins for shank buttons, marble buttons, and metallic buttons (optional).
Safety design
● The safety-first design makes it impossible to start the machine without buttons set on the button chuck.
● If the machine head tilts while the power ON, the safety switch automatically shuts down the machine even when the pedal or knee switch is pressed.
● As the machine requires no lubrication, oil spatters and all other lubrication-related troubles are eliminated. Sewn garments have dramatically fewer oil stains as a result.
＊Periodical greasing is required for some of the mechanical structures. Dramatically reduced vibration and noise
● The adoption of the needle-throwing mechanism dramatically reduces the vibration and noise usually produced during the neck-wrapping procedure.
The machine is provided as standard with a button loader.
● The machine is provided as standard with a button feeder that lets the operator place the next buttons to be sewn during overlapping-style work.
● The button-delivery position between the button loader and button chuck can be easily adjusted on the operation panel. No tools are required.
LED now adopted
The AMB-289 is provided as standard with an LED-type handy light and marking light. The sewing area is now brighter and more viewable than it would be under the incandescent light of a conventional machine. LED light also offer the advantage of a longer service life. The machine is optionally provided with a marking light for sewing flat buttons directly to cloth.
Convenient hand pulley
The hand pulley is mounted on the top of head. This makes it easy to check the needle entry point.
The button loader gauge for the conventional model can also be used with the AMB-289.
● The set pins and four-holed and two-holed button carriers used with the AMB-189NR (the conventional model provided with a button loader) can also be used with the AMB-289.
＊The AMB-289 requires dedicated set pins for shank buttons, marble buttons, and metallic buttons (optional).
Safety design
● The safety-first design makes it impossible to start the machine without buttons set on the button chuck.
● If the machine head tilts while the power ON, the safety switch automatically shuts down the machine even when the pedal or knee switch is pressed.
The color panel IP-420D provides excellent operability..
● The operation panel is a touch-sensitive type LCD. The clear graphical displays make it much easier for the operator to set or modify sewing data.
● A CompactFlashTM card can be used to store and transfer sewing data. This makes it possible for sewing machines at one or more factories to share data. In addition to the CompactFlash TM, the machine is provided as standard with a USB connector. As a result, the use of a USB flash drive or card reader enables the storage and transmission of sewing data by means of various kinds of media (such as a floppy disk, SmartMedia, CompactFlash and SD card) to enable sewing using the same sewing data among sewing machines in a plant or among subcontract plants.
● A CompactFlashTM card can be used to store and transfer sewing data. This makes it possible for sewing machines at one or more factories to share data. In addition to the CompactFlash TM, the machine is provided as standard with a USB connector. As a result, the use of a USB flash drive or card reader enables the storage and transmission of sewing data by means of various kinds of media (such as a floppy disk, SmartMedia, CompactFlash and SD card) to enable sewing using the same sewing data among sewing machines in a plant or among subcontract plants.
Download files (1)
Apparel Sewing machines
AMB-289
Computer-controlled, High-speed, Single-thread Chainstitch, Button-neck-wrapping Machine
The machine comes with newly developed active-tension system ideal for the careful sewing of beautiful seams.
The range of applicable buttons is further extended.
Product overview
The machine demonstrates the highest productivity among button-neck-wrapping machines intended for men's and ladies' outer wear. A single machine unit permits the quick changeover of types of buttons to be sewn, i.e., flat buttons, shank button, marble buttons and stay buttons with a onetouch utility lever.
Newly developed active tension (electronic thread tension control system)
● The newly introduced active tension system further improves responsiveness and allows delicate tension setting when the user changes fabrics.
● Thread tensions for button sewing and neck wrapping can be separately set on the operation panel.
● The machine stores sewing conditions in memory on a pattern-by-pattern basis. Required sewing conditions can be exactly reproduced for every pattern.
● Thread tensions for button sewing and neck wrapping can be separately set on the operation panel.
● The machine stores sewing conditions in memory on a pattern-by-pattern basis. Required sewing conditions can be exactly reproduced for every pattern.
Superb functions for improving seam quality
● The remaining length of needle thread can be adjusted according to the type of material or thread to be used. It effectively prevents thread from slipping off the material at the start of sewing.
● The AMB-289 does not require the use of exclusive thread intended for button sewing. General-purpose cotton threads and spun threads are both applicable, depending on the type of material.
A full range of thread counts from #60 to #30 can be applied. This ensures use for diverse processes.
● The thread-trimming position is set to reduce the remaining length of thread on the material to a minimum.
● The machine incorporates a thread-fray prevention function that ensures the tying of strong and reliable knots at the last stitch.
● The number of stay stitches, which increases strength of button sewing stitches, can be set on the operation panel within the range of 0 and 3 stitches.
● The tucking depth is increased to 5mm to ensure a consistent tucking depth in soft materials such as knits.
● The feed accuracy is as high as 0.1mm. This promises an accurate needle entry position and tucking depth.
● The AMB-289 does not require the use of exclusive thread intended for button sewing. General-purpose cotton threads and spun threads are both applicable, depending on the type of material.
A full range of thread counts from #60 to #30 can be applied. This ensures use for diverse processes.
● The thread-trimming position is set to reduce the remaining length of thread on the material to a minimum.
● The machine incorporates a thread-fray prevention function that ensures the tying of strong and reliable knots at the last stitch.
● The number of stay stitches, which increases strength of button sewing stitches, can be set on the operation panel within the range of 0 and 3 stitches.
● The tucking depth is increased to 5mm to ensure a consistent tucking depth in soft materials such as knits.
● The feed accuracy is as high as 0.1mm. This promises an accurate needle entry position and tucking depth.
Cycle sewing
● The machine sews buttons on a double-breast suit, a garment that requires the sewing of different types of buttons, in a continuous manner.
● Cycle sewing data can be set/edited with the sewing item graphically displayed on the operation panel (the number of buttons, button sewing locations, and sewing order of buttons).
● The button loader can feed two types of buttons in a single sewing cycle.
● Cycle sewing data can be set/edited with the sewing item graphically displayed on the operation panel (the number of buttons, button sewing locations, and sewing order of buttons).
● The button loader can feed two types of buttons in a single sewing cycle.
The machine comes with new functions to improve workability.
Dramatically reduced oil stains
● As the machine requires no lubrication, oil spatters and all other lubrication-related troubles are eliminated. Sewn garments have dramatically fewer oil stains as a result.
＊Periodical greasing is required for some of the mechanical structures. Dramatically reduced vibration and noise
● The adoption of the needle-throwing mechanism dramatically reduces the vibration and noise usually produced during the neck-wrapping procedure.
The machine is provided as standard with a button loader.
● The machine is provided as standard with a button feeder that lets the operator place the next buttons to be sewn during overlapping-style work.
● The button-delivery position between the button loader and button chuck can be easily adjusted on the operation panel. No tools are required.
LED now adopted
The AMB-289 is provided as standard with an LED-type handy light and marking light. The sewing area is now brighter and more viewable than it would be under the incandescent light of a conventional machine. LED light also offer the advantage of a longer service life. The machine is optionally provided with a marking light for sewing flat buttons directly to cloth.
Convenient hand pulley
The hand pulley is mounted on the top of head. This makes it easy to check the needle entry point.
The button loader gauge for the conventional model can also be used with the AMB-289.
● The set pins and four-holed and two-holed button carriers used with the AMB-189NR (the conventional model provided with a button loader) can also be used with the AMB-289.
＊The AMB-289 requires dedicated set pins for shank buttons, marble buttons, and metallic buttons (optional).
Safety design
● The safety-first design makes it impossible to start the machine without buttons set on the button chuck.
● If the machine head tilts while the power ON, the safety switch automatically shuts down the machine even when the pedal or knee switch is pressed.
● As the machine requires no lubrication, oil spatters and all other lubrication-related troubles are eliminated. Sewn garments have dramatically fewer oil stains as a result.
＊Periodical greasing is required for some of the mechanical structures. Dramatically reduced vibration and noise
● The adoption of the needle-throwing mechanism dramatically reduces the vibration and noise usually produced during the neck-wrapping procedure.
The machine is provided as standard with a button loader.
● The machine is provided as standard with a button feeder that lets the operator place the next buttons to be sewn during overlapping-style work.
● The button-delivery position between the button loader and button chuck can be easily adjusted on the operation panel. No tools are required.
LED now adopted
The AMB-289 is provided as standard with an LED-type handy light and marking light. The sewing area is now brighter and more viewable than it would be under the incandescent light of a conventional machine. LED light also offer the advantage of a longer service life. The machine is optionally provided with a marking light for sewing flat buttons directly to cloth.
Convenient hand pulley
The hand pulley is mounted on the top of head. This makes it easy to check the needle entry point.
The button loader gauge for the conventional model can also be used with the AMB-289.
● The set pins and four-holed and two-holed button carriers used with the AMB-189NR (the conventional model provided with a button loader) can also be used with the AMB-289.
＊The AMB-289 requires dedicated set pins for shank buttons, marble buttons, and metallic buttons (optional).
Safety design
● The safety-first design makes it impossible to start the machine without buttons set on the button chuck.
● If the machine head tilts while the power ON, the safety switch automatically shuts down the machine even when the pedal or knee switch is pressed.
The color panel IP-420D provides excellent operability..
● The operation panel is a touch-sensitive type LCD. The clear graphical displays make it much easier for the operator to set or modify sewing data.
● A CompactFlashTM card can be used to store and transfer sewing data. This makes it possible for sewing machines at one or more factories to share data. In addition to the CompactFlash TM, the machine is provided as standard with a USB connector. As a result, the use of a USB flash drive or card reader enables the storage and transmission of sewing data by means of various kinds of media (such as a floppy disk, SmartMedia, CompactFlash and SD card) to enable sewing using the same sewing data among sewing machines in a plant or among subcontract plants.
● A CompactFlashTM card can be used to store and transfer sewing data. This makes it possible for sewing machines at one or more factories to share data. In addition to the CompactFlash TM, the machine is provided as standard with a USB connector. As a result, the use of a USB flash drive or card reader enables the storage and transmission of sewing data by means of various kinds of media (such as a floppy disk, SmartMedia, CompactFlash and SD card) to enable sewing using the same sewing data among sewing machines in a plant or among subcontract plants.
Specification
All Functions
Specification
Application
Sewing of various button types (buttons to be sewn by machine)
Max Sewing Speed
1,800sti/min (neck-wrapping), 1,200sti/min (button sewing)
Needle
ORGAN SM×332EXTLG-NY (standard needle), (at the time of delivery #14) #12～#18
Needle Bar Stroke
60.0mm
Compressed Air / Air Consumption
0.5MPa(5kgf/cm2), 11dm3/min
Weight
Machine head: 65kg, Control box: 13kg
Dimensions
600mm(W)×600mm(D)×400mm(H)
Power Required
Single-phase 200～240V, 3-phase 200～240V/400VA
Button size
Sewing button without neck-wrapping : φ8～φ38mm, Sewing button with neck-wrapping : φ8～φ32mm, Counter button : φ8～φ25mm
Standard Accessories
