AMS-210EN1510-X90015, AMS-210EN1510-X90015ECO
Computer Controlled Cycle Machine with 3-fold Capacity Hook
With a sewing speed of 2,200 sti./min. and combination of various functions the AMS-210EN have contribute to increased productivity. A remarkable degree of energy conservation is achieved through the use of the direct-drive system.

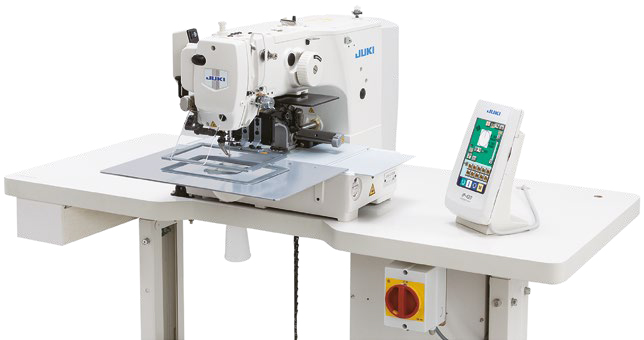

The AMS-210EN1510-X90015 is Juki’s world famous computer controlled cycle machine reimagined for the production of automotive seat-belts, cargo-belts and harnesses
Contact Agent
See Series Specification (2)
Active Tension
Sewing Speed
2,200
sti./min.
Automatic Thread Trimmer
Product overview
The sewing machine is best-suited to the sewing of heavy-duty belts in the automotive and cargo sectors. The larger hook means that even with thicker thread the machine is capable of longer cycle times without the hook needing to be changed. The AMS series is versatile enough for many different types of production and specific changes to this subclass means it meets all the requirements for heavy duty applications.

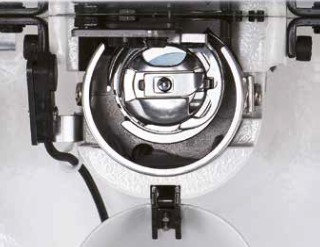

The machine is equipped as standard with a full-rotary 3-fold capacity hook. The hook reduces the frequency of the bobbin thread replacement, enhancing efficiency while sewing thick thread and also helps achieve high quality seams.
JUKI’s unique stepping-motor controlled thread trimming mechanism is adopted to enable speedy and consistent performance.The machine demonstrates enhanced responsiveness due to the adoption of a main-shaft direct-drive system.

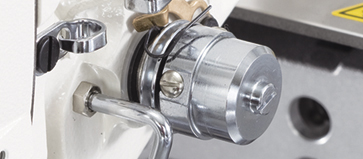

Market-proven active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled.
To support the sewing of multi-layered parts of materials, the lower dead point height of the intermediate presser can be changed steplessly during sewing.
Download files (1)
Non-Apparel Sewing machines
AMS-210EN1510-X90015, AMS-210EN1510-X90015ECO
Computer Controlled Cycle Machine with 3-fold Capacity Hook
With a sewing speed of 2,200 sti./min. and combination of various functions the AMS-210EN have contribute to increased productivity. A remarkable degree of energy conservation is achieved through the use of the direct-drive system.
The AMS-210EN1510-X90015 is Juki’s world famous computer controlled cycle machine reimagined for the production of automotive seat-belts, cargo-belts and harnesses
Active Tension
Sewing Speed
2,200
sti./min.
Automatic Thread Trimmer
Product overview
The sewing machine is best-suited to the sewing of heavy-duty belts in the automotive and cargo sectors. The larger hook means that even with thicker thread the machine is capable of longer cycle times without the hook needing to be changed. The AMS series is versatile enough for many different types of production and specific changes to this subclass means it meets all the requirements for heavy duty applications.
The machine is equipped as standard with a full-rotary 3-fold capacity hook. The hook reduces the frequency of the bobbin thread replacement, enhancing efficiency while sewing thick thread and also helps achieve high quality seams.
JUKI’s unique stepping-motor controlled thread trimming mechanism is adopted to enable speedy and consistent performance.The machine demonstrates enhanced responsiveness due to the adoption of a main-shaft direct-drive system.
Market-proven active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled.
To support the sewing of multi-layered parts of materials, the lower dead point height of the intermediate presser can be changed steplessly during sewing.
Specification
All Functions
Specification
Standard Accessories
