AMS-221EN-HS3020/7200
Contact Agent
See Specification
02 Icons / 24x24 / ic24-download Created with Sketch.
  1. Homepage
AMS-221EN-HS3020/7200
Computer-controlled Cycle Machine with Input Function (for sewing pockets on jeans)
This model is designed for sewing pockets on jeans and is based on the AMS-221EN Series.
The machine sews folded pocket cloth on the garment body.
Maximum stitching range of a pocket that can be sewn is 246mm (width) × 200mm (length).
Contact Agent
See Specification
02 Icons / 24x24 / ic24-download Created with Sketch.
Excellent seam quality
Sewing speed
2.000
sti/min
Higher productivity
Product overview
This model is designed for sewing pockets on jeans and is based on the AMS-221EN Series. AMS-221EN-HS3020/7200/SS46 (SS46 stacker is optionally available). The machine achieves excellent seam quality by the use of the äctive tension"and the ïntermediate-presser height adjusting function". The retractable pocket clamp plate is adopted. This feature can be used for the inner stitches of double-line sewing. In addition, since the travel stroke of the pocket clamp plate is adjustable according to the pocket size, pockets can be sewn beautifully with no sewing trouble regardless of the pocket size.
Higher productivity

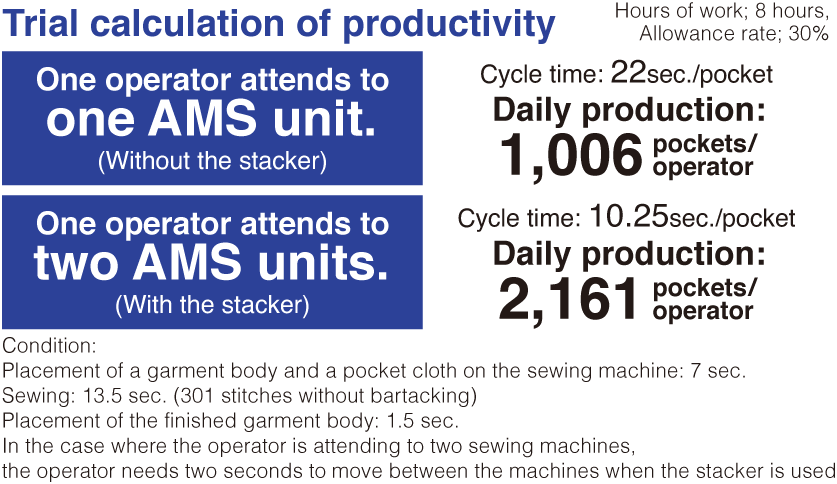

The operator is able to attend to two sewing machines at one time by the use of the SS46 stacker (optional), thereby achieving higher productivity.
Excellent seam quality
The machine achieves excellent seam quality by the use of the "active tension" and the "intermediate-presser height adjusting function", which are two of the superior features of the AMS221EN Series.
Operation panel
The AMS-221EN has adopted, as its operation panel, the IP-420 which has a large color liquid crystal touch panel. The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. In addition, the machine supports USB, allowing for the use of various USB thumb drives and media. (SD Card, CompactFlash, Smart Media, Floppy disks)
Energy-saving
The AMS-221EN is an economically-efficient model which has been designed to reduce power consumption. The sewing machine has adopted a direct-drive system by means of a compact AC servomotor that is excellent in energy transmission to drive the main shaft, and has adopted an encoder-control system which drives the stepping motor with a minimum of power in accordance with the material thickness and stitch length to control the X-Y drive mechanism, thereby reducing power consumption.
Pocket style jig
The pocket style jig can be quickly changed in a short time. The price of the pocket style jig itself is low, thereby supporting a small-lot production system. The PLASTIC BLANK (an option) is separately available. The pocket style jig can be made of the blank in your plant according to the pocket shape.

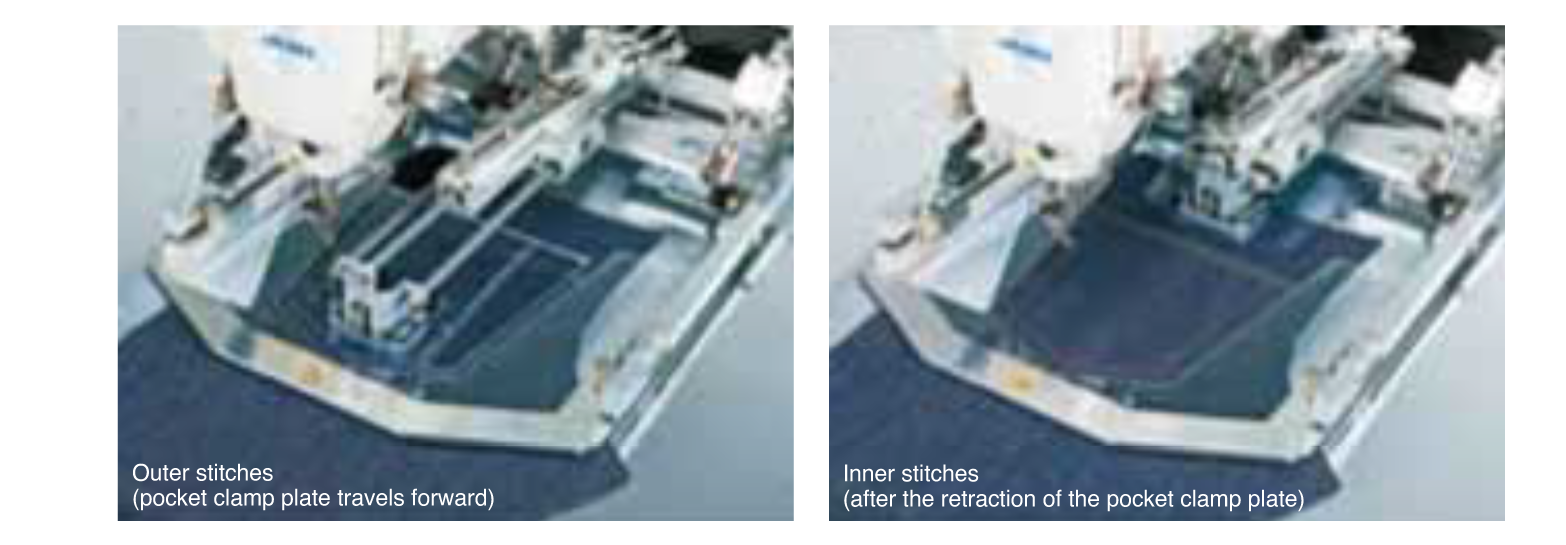

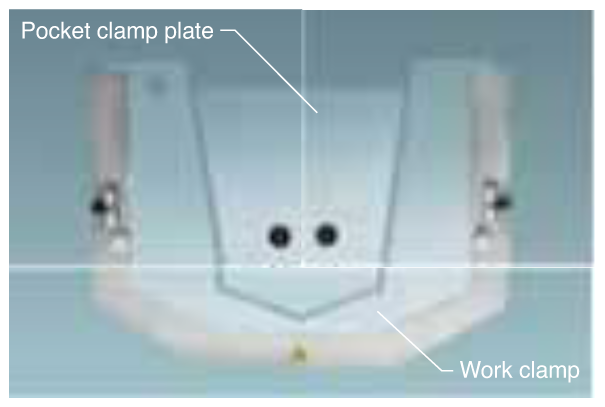

Pocket clamp plate for pocket cloth
The retractable pocket clamp plate is adopted. This feature can be used for the inner stitches of double-line sewing. In addition, since the travel stroke of the pocket clamp plate is adjustable according to the pocket size, pockets can be sewn beautifully with no sewing trouble regardless of the pocket size.
Download files (1)
AMS-221EN-HS3020/7200
- Leaflet (pdf)
0.24 MB
02 Icons / 24x24 / ic24-download Created with Sketch.

Apparel Sewing machines

AMS-221EN-HS3020/7200

Computer-controlled Cycle Machine with Input Function (for sewing pockets on jeans)

This model is designed for sewing pockets on jeans and is based on the AMS-221EN Series.
The machine sews folded pocket cloth on the garment body.
Maximum stitching range of a pocket that can be sewn is 246mm (width) × 200mm (length).

Excellent seam quality
Sewing speed
2.000
sti/min
Higher productivity
Product overview
This model is designed for sewing pockets on jeans and is based on the AMS-221EN Series. AMS-221EN-HS3020/7200/SS46 (SS46 stacker is optionally available). The machine achieves excellent seam quality by the use of the äctive tension"and the ïntermediate-presser height adjusting function". The retractable pocket clamp plate is adopted. This feature can be used for the inner stitches of double-line sewing. In addition, since the travel stroke of the pocket clamp plate is adjustable according to the pocket size, pockets can be sewn beautifully with no sewing trouble regardless of the pocket size.
Higher productivity
The operator is able to attend to two sewing machines at one time by the use of the SS46 stacker (optional), thereby achieving higher productivity.
Excellent seam quality
The machine achieves excellent seam quality by the use of the "active tension" and the "intermediate-presser height adjusting function", which are two of the superior features of the AMS221EN Series.
Operation panel
The AMS-221EN has adopted, as its operation panel, the IP-420 which has a large color liquid crystal touch panel. The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. In addition, the machine supports USB, allowing for the use of various USB thumb drives and media. (SD Card, CompactFlash, Smart Media, Floppy disks)
Energy-saving
The AMS-221EN is an economically-efficient model which has been designed to reduce power consumption. The sewing machine has adopted a direct-drive system by means of a compact AC servomotor that is excellent in energy transmission to drive the main shaft, and has adopted an encoder-control system which drives the stepping motor with a minimum of power in accordance with the material thickness and stitch length to control the X-Y drive mechanism, thereby reducing power consumption.
Pocket style jig
The pocket style jig can be quickly changed in a short time. The price of the pocket style jig itself is low, thereby supporting a small-lot production system. The PLASTIC BLANK (an option) is separately available. The pocket style jig can be made of the blank in your plant according to the pocket shape.
Pocket clamp plate for pocket cloth
The retractable pocket clamp plate is adopted. This feature can be used for the inner stitches of double-line sewing. In addition, since the travel stroke of the pocket clamp plate is adjustable according to the pocket size, pockets can be sewn beautifully with no sewing trouble regardless of the pocket size.
Specification
All Functions
Specification
Application
Heavy-weight material
Max Sewing Speed
2000 sti/min
Hook Type
Double capacity shuttle hook
Max Stitch Length
12,7 mm
Needle
DP x 17 (#19)
Sewing Area
X: 246 mm x Y: 200 mm
Needle Thread Tension
Active tension (electronic thread tension control system)
Weight
210 kg
Dimensions
1,200mm(W)×1,000mm(D)×1,200mm(H)
Standard Accessories
