AMS-221EN-TS3020
Computer-controlled Cycle Machine with Input Function (for 2-colour-thread sewing)
AMS-221EN-TS has been developed to enable two-colour stitching enables sewing with two different-in-color threads (i.e., two kinds) with no need to change the thread or to re-place the sewing product on a different sewing machine. This helps significantly reduce the operator's working time and eliminates differences in position of the sewing product.When a needle-bar changeover command is entered into a sewing pattern, the sewing machine will stop and automatically change over the needle bar then re-start sewing with the second color thread (second kind of thread).
Two-color stitching is possible with a one machine
Contact Agent
See Specification
Active Tension
Sewing Speed
2,500
sti./min.
Automatic Thread Trimmer
Product overview
Possible difference in position of the sewing product which can be caused by re-placing it on the sewing machine in a different process is eliminated, thereby increasing the productivity. It is suitable for sports shoes, bags and car seats such as the topstitch and parts sewing, etc.

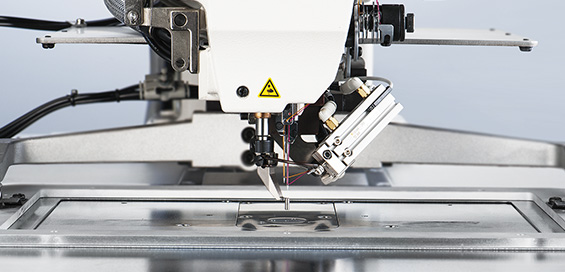

The sewing machine is provided with a thread presser mechanism which clamps the thread of the inactive needle under the thread take-up lever to prevent the thread from slipping out.
For the needle thread changeover function, this sewing machine is provided with a needle thread suction and clamp mechanism to prevent it from being caught by the needle which is being used for sewing. In this way, the mechanism prevents entanglement of the two threads without fail.
Download files (1)
Non-Apparel Sewing machines
AMS-221EN-TS3020
Computer-controlled Cycle Machine with Input Function (for 2-colour-thread sewing)
AMS-221EN-TS has been developed to enable two-colour stitching enables sewing with two different-in-color threads (i.e., two kinds) with no need to change the thread or to re-place the sewing product on a different sewing machine. This helps significantly reduce the operator's working time and eliminates differences in position of the sewing product.When a needle-bar changeover command is entered into a sewing pattern, the sewing machine will stop and automatically change over the needle bar then re-start sewing with the second color thread (second kind of thread).
Two-color stitching is possible with a one machine
Active Tension
Sewing Speed
2,500
sti./min.
Automatic Thread Trimmer
Product overview
Possible difference in position of the sewing product which can be caused by re-placing it on the sewing machine in a different process is eliminated, thereby increasing the productivity. It is suitable for sports shoes, bags and car seats such as the topstitch and parts sewing, etc.
The sewing machine is provided with a thread presser mechanism which clamps the thread of the inactive needle under the thread take-up lever to prevent the thread from slipping out.
For the needle thread changeover function, this sewing machine is provided with a needle thread suction and clamp mechanism to prevent it from being caught by the needle which is being used for sewing. In this way, the mechanism prevents entanglement of the two threads without fail.
Specification
All Functions
Specification
Max. Sewing Speed
2500 sti./min.
Max. Stitch Length
12,7 mm
Standard Accessories
