AMS-221ENTS-SZ/X90004
Contact Agent
See Specification
AMS-221ENTS-SZ/X90004

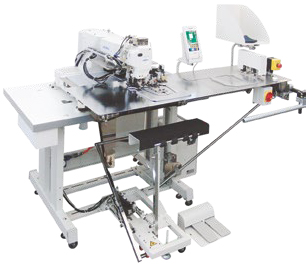

Computer-contrelled Cycle Machine with Input Function (for 2-colour-thread sewing pockets on jeans
Contact Agent
See Specification
2500
sti/min
Product overview
This model is designed for 2-colour-thread sewing pockets on jeans and is based on the AMS-221EN Series. The machine sews folded pocket cloth on the garment body. The folded pocket clothe can be made with the JEUX0021 creasing machine. These two machines work in perfect combination.
1548 pockets per operator by 8h/day
The machine sews folded pocket cloth on the garment body, now two-color jeans pocket stitching is possible by one machine (with Pocket Presetter). Maximum stitching range of a pocket that can be sewn is 110~190mm (width) × 110~200mm (length). The machines increases productivity on the sewing line and provides excellent seam quality. This latest model sewing machine is able to perform sewing with two different-in-color threads (i.e., two kinds) simply by placing the sewing product on this sewing machine once. This helps significantly reduce the operator's operating time.
Excellent seam quality
Previously, sewing a sewing product with two kinds of thread which are different in color required the operator to change the sewing thread or to re-place the sewing product on a different sewing machine. This latest model sewing machine is able to perform sewing with two different-in-color threads (i.e., two kinds) simply by placing the sewing product on this sewing machine once. This helps significantly reduce the operator's operating time. Furthermore, possible subtle differences in position of the sewing product which can be caused by re-placing it on a different sewing machine are eliminated, thereby improving and/or stabilizing the seam quality.
Higher productivity
In the case where a needle-bar changeover command is entered into a sewing pattern, the sewing machine will stop at the command position, automatically change over the needle bar and re-start sewing over the needle bar and re-start sewing with the second color thread (second kind of thread).

Apparel Sewing machines

AMS-221ENTS-SZ/X90004

Computer-contrelled Cycle Machine with Input Function (for 2-colour-thread sewing pockets on jeans

2500
sti/min
Product overview
This model is designed for 2-colour-thread sewing pockets on jeans and is based on the AMS-221EN Series. The machine sews folded pocket cloth on the garment body. The folded pocket clothe can be made with the JEUX0021 creasing machine. These two machines work in perfect combination.
1548 pockets per operator by 8h/day
The machine sews folded pocket cloth on the garment body, now two-color jeans pocket stitching is possible by one machine (with Pocket Presetter). Maximum stitching range of a pocket that can be sewn is 110~190mm (width) × 110~200mm (length). The machines increases productivity on the sewing line and provides excellent seam quality. This latest model sewing machine is able to perform sewing with two different-in-color threads (i.e., two kinds) simply by placing the sewing product on this sewing machine once. This helps significantly reduce the operator's operating time.
Excellent seam quality
Previously, sewing a sewing product with two kinds of thread which are different in color required the operator to change the sewing thread or to re-place the sewing product on a different sewing machine. This latest model sewing machine is able to perform sewing with two different-in-color threads (i.e., two kinds) simply by placing the sewing product on this sewing machine once. This helps significantly reduce the operator's operating time. Furthermore, possible subtle differences in position of the sewing product which can be caused by re-placing it on a different sewing machine are eliminated, thereby improving and/or stabilizing the seam quality.
Higher productivity
In the case where a needle-bar changeover command is entered into a sewing pattern, the sewing machine will stop at the command position, automatically change over the needle bar and re-start sewing over the needle bar and re-start sewing with the second color thread (second kind of thread).
Specification
All Functions
Specification
Max Sewing Speed
2500sti/min
Max Stitch Length
12,7 mm
Needle
DPx17 (#21) #18-21
Storage of Pattern Data in the Memory
Main-body memory: MAx 500.00 stitches, 999 patterns (max 50.000 stitches/pattern), External media: Max 49.950.000 stitches, 999 paterns (max. 50.000 stitches/pattern)
Sewing Area
Max. 110 mm x 110 mm, Min. 90 mm x 90 mm
Standard Accessories
