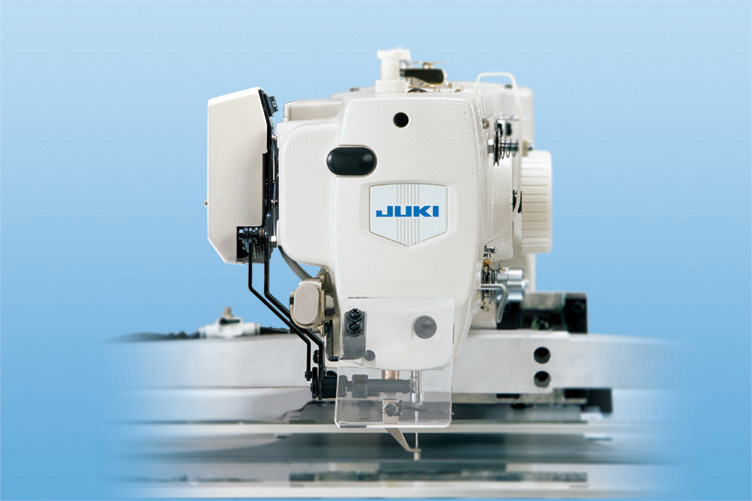

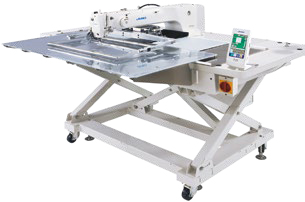

AMS-224EN Series
Computer-controlled Cycle Machine with Input Function
The machine not only achieves higher productivity due to instantaneous increases/decreases in sewing speed at the beginning /end of sewing and increased speed of thread trimming, but also achieves a flexible responsiveness to materials to promise enhanced seam quality due to JUKI's unique active tension and programmable intermediate presser.
The cycle machine, which has a wider sewing area, achieves an improved seam quality, increased productivity and easier operation
Contact/Inquiry
Series Specifications (4)
Active Tension
Sewing Speed
2,500
sti./min.
Automatic Thread Trimmer
Product overview
The machine achieves the highest sewing speed of 2,500 sti/min among those with a similar sewing area. With its higher productivity, the machine performs various kinds of stitching, making the most out of its wider sewing area in various sewing applications such as attaching handles to bags and pouches, attaching belts, sewing many small parts at a time, attaching parts to shoes and sports shoes (one pair of shoes) and sewing air bags. A newly developed encoder-controlled stepping motor system has been adopted for the X-Y feed mechanism. This contributes to more accurate sewing performance and increased productivity.
Applications
The machine performs various kinds of stitching, making the most out of its wider sewing area in various sewing applications such as attaching handles to bags and pouches, attaching belts, sewing many small parts at a time, attaching parts to shoes and sports shoes (one pair of shoes) and sewing air bags.
Quality
The position of the feed can be checked duringring sewing by means of the encoder-controlled X-YX-Y drive stepping motor. This remarkably improvesves accuracy of the feed. As a result, deformation of aof a sewing pattern which is likely to occur when se wiwingng at a high speed or sewing a heavy-weight material is significantly reduced.

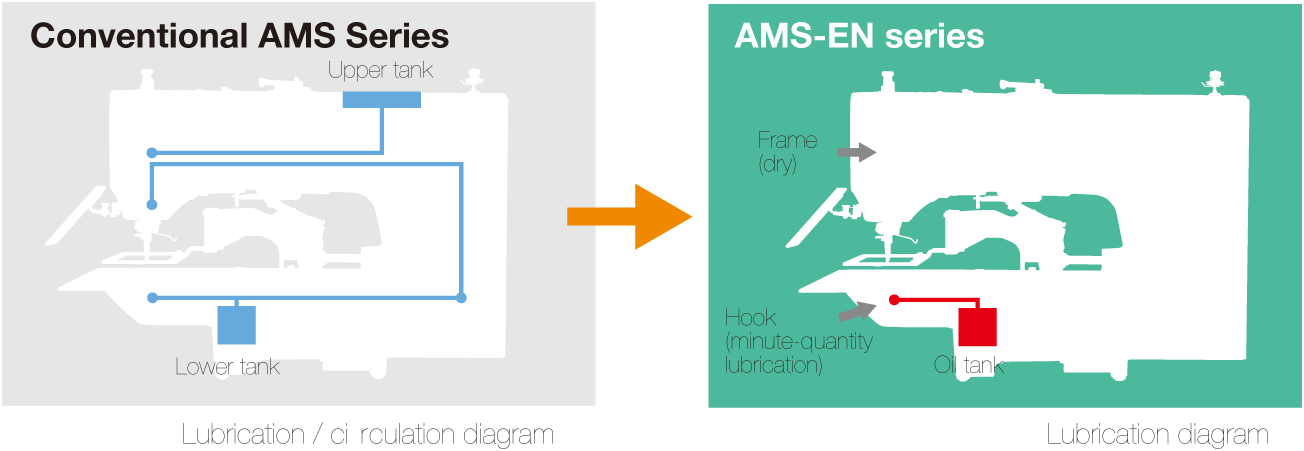

Semi-dry head
The frame (needle bar unit and thread take-up unit) is lubricated with grease, and the hook is fed with a minute quantity of oil from the oil tank.
JUKI’s advanced dry technology, which is utilized in a number of our sewing machine models, protects your products from being stained with oil.
JUKI’s advanced dry technology, which is utilized in a number of our sewing machine models, protects your products from being stained with oil.

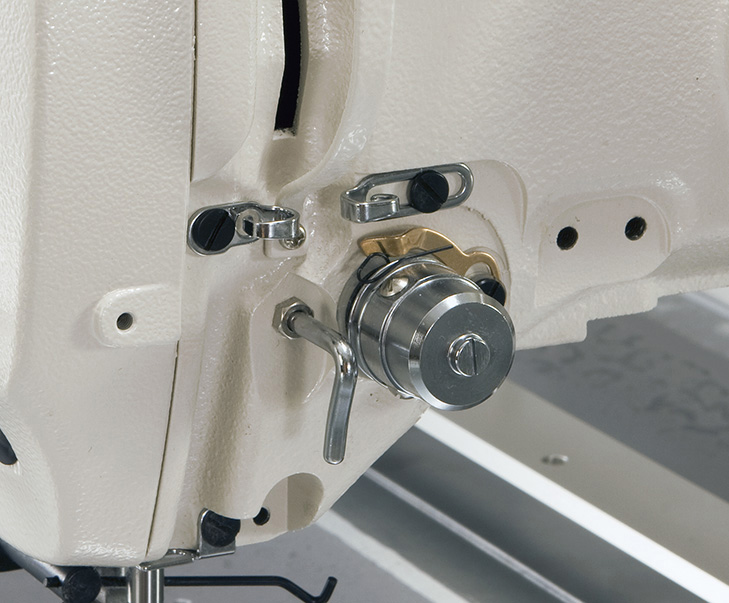

Active tension
Market-proven active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled. The needle thread tension, therefore, can be set in conjunction with the material thickness and can be corrected according to the direction of sewing on a stitch-by-stitch basis through the operation panel. Since the needle thread tension is reproducible, supporting a broader range of sewing conditions, the time required for setup changing upon process changeover can be reduced.

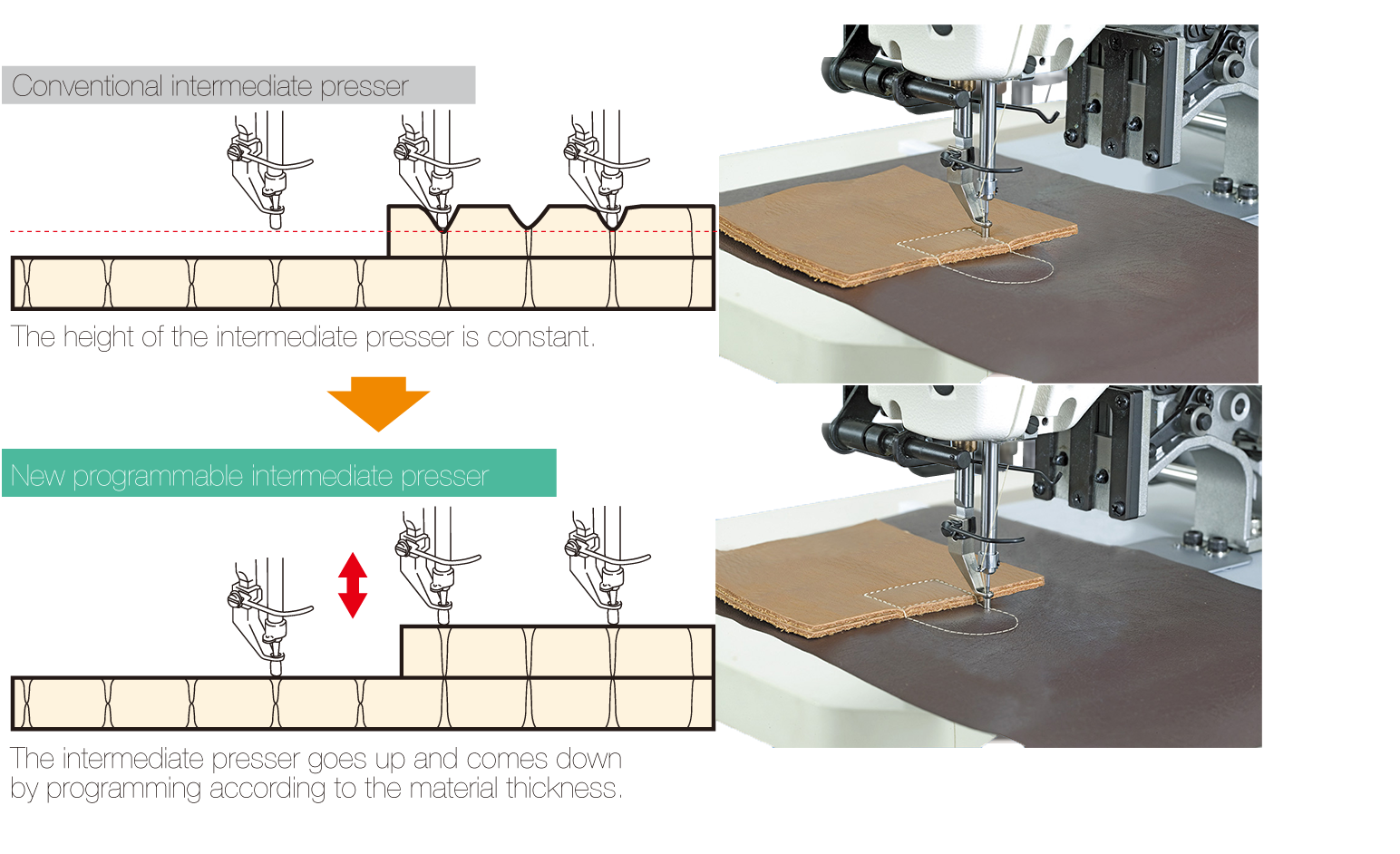

Programmable intermediate presser
With the programmable intermediate presser, the height of the lower dead point of the intermediate presser can be set according to the material thickness, thereby not only preventing troubles in sewing such as stitch skipping and thread breakage, but also protecting the sewing product from being damaged by the presser. The height setting can be changed with ease even during sewing. The machine finishes beautiful uniform seams free from stitch skipping even on multiple parts of the material by the ideal combination of the active tension and programmable intermediate presser.
Operability
Hand pulley
With the hand pulley which is laid out on the machine arm, not only the height of the needle bar or intermediate presser but also the needle entry point at the time of data programming can be adjusted with ease
IP-420
The large-sized liquid crystal touch panel, which has been developed to ensure ease of operation, dramatically increases efficiency in edit work.
The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.
Key-lock customization function
The key-lock state can be set as desired. It is therefore possible to hide items which should not be handled by the operators.
Simplified operation mode
Simplification of set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.
The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.
Key-lock customization function
The key-lock state can be set as desired. It is therefore possible to hide items which should not be handled by the operators.
Simplified operation mode
Simplification of set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.

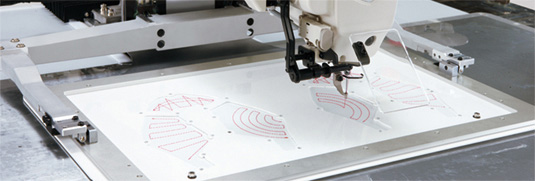

Feeding frame
The feeding frame lift is 30mm at the maximum. This enables easy setting of a heavy-weight material on the machine.

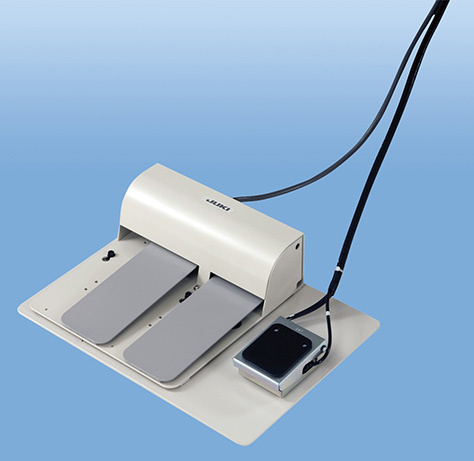

PK 2-pedal unit
(with a mechanical valve pedal)
The mechanical valve goes up and comes down corresponding to the depressed depth of the pedal. This enables easy positioning of a part to be sewn.

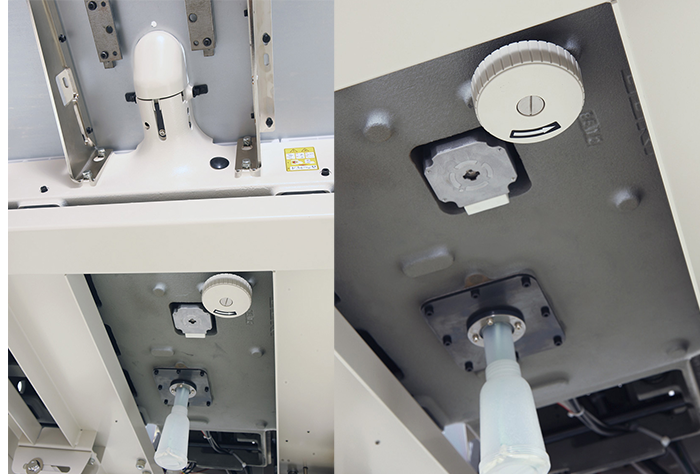

Hook driving shaft pulley
A pulley is also provided on the lower part of the machine. This enables easy adjustment of the hook.
Download files (1)
Apparel Sewing machines
AMS-224EN Series
Computer-controlled Cycle Machine with Input Function
The machine not only achieves higher productivity due to instantaneous increases/decreases in sewing speed at the beginning /end of sewing and increased speed of thread trimming, but also achieves a flexible responsiveness to materials to promise enhanced seam quality due to JUKI's unique active tension and programmable intermediate presser.
The cycle machine, which has a wider sewing area, achieves an improved seam quality, increased productivity and easier operation
Active Tension
Sewing Speed
2,500
sti./min.
Automatic Thread Trimmer
Product overview
The machine achieves the highest sewing speed of 2,500 sti/min among those with a similar sewing area. With its higher productivity, the machine performs various kinds of stitching, making the most out of its wider sewing area in various sewing applications such as attaching handles to bags and pouches, attaching belts, sewing many small parts at a time, attaching parts to shoes and sports shoes (one pair of shoes) and sewing air bags. A newly developed encoder-controlled stepping motor system has been adopted for the X-Y feed mechanism. This contributes to more accurate sewing performance and increased productivity.
Applications
The machine performs various kinds of stitching, making the most out of its wider sewing area in various sewing applications such as attaching handles to bags and pouches, attaching belts, sewing many small parts at a time, attaching parts to shoes and sports shoes (one pair of shoes) and sewing air bags.
Quality
The position of the feed can be checked duringring sewing by means of the encoder-controlled X-YX-Y drive stepping motor. This remarkably improvesves accuracy of the feed. As a result, deformation of aof a sewing pattern which is likely to occur when se wiwingng at a high speed or sewing a heavy-weight material is significantly reduced.
Semi-dry head
The frame (needle bar unit and thread take-up unit) is lubricated with grease, and the hook is fed with a minute quantity of oil from the oil tank.
JUKI’s advanced dry technology, which is utilized in a number of our sewing machine models, protects your products from being stained with oil.
JUKI’s advanced dry technology, which is utilized in a number of our sewing machine models, protects your products from being stained with oil.
Active tension
Market-proven active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled. The needle thread tension, therefore, can be set in conjunction with the material thickness and can be corrected according to the direction of sewing on a stitch-by-stitch basis through the operation panel. Since the needle thread tension is reproducible, supporting a broader range of sewing conditions, the time required for setup changing upon process changeover can be reduced.
Programmable intermediate presser
With the programmable intermediate presser, the height of the lower dead point of the intermediate presser can be set according to the material thickness, thereby not only preventing troubles in sewing such as stitch skipping and thread breakage, but also protecting the sewing product from being damaged by the presser. The height setting can be changed with ease even during sewing. The machine finishes beautiful uniform seams free from stitch skipping even on multiple parts of the material by the ideal combination of the active tension and programmable intermediate presser.
Operability
Hand pulley
With the hand pulley which is laid out on the machine arm, not only the height of the needle bar or intermediate presser but also the needle entry point at the time of data programming can be adjusted with ease
IP-420
The large-sized liquid crystal touch panel, which has been developed to ensure ease of operation, dramatically increases efficiency in edit work.
The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.
Key-lock customization function
The key-lock state can be set as desired. It is therefore possible to hide items which should not be handled by the operators.
Simplified operation mode
Simplification of set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.
The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.
Key-lock customization function
The key-lock state can be set as desired. It is therefore possible to hide items which should not be handled by the operators.
Simplified operation mode
Simplification of set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.
Feeding frame
The feeding frame lift is 30mm at the maximum. This enables easy setting of a heavy-weight material on the machine.
PK 2-pedal unit
(with a mechanical valve pedal)
The mechanical valve goes up and comes down corresponding to the depressed depth of the pedal. This enables easy positioning of a part to be sewn.
Hook driving shaft pulley
A pulley is also provided on the lower part of the machine. This enables easy adjustment of the hook.
