AP-876
Jeans Pocket Setter
AP-876 The machine automatizes a series of pocket setting processes such as the folding of a pocket, placement of the pocket on a garment body, sewing, bartacking and stacking, thereby increasing productivity and achieving production without requiring the operator to have any special skill. This promises consistent finished quality.
The machine fully automatizes a series of pocket setting processes to achieve higher productivity and consistent quality.
Contact Agent
See Specification
4.000
sti/min
6 mm
stitch length
Product overview
The machine automatizes a series of pocket setting processes such as the folding of a pocket, placement of the pocket on a garment body, sewing, bartacking and stacking, thereby increasing productivity and achieving production without requiring the operator to have any special skill. This promises consistent finished quality.
Quality production without relying on operator skill , quality improvement
The hip pocket of jeans and other garments is a highly visible element of those products. Its finished quality determines the product value. The pocket setting process is, therefore, a very important process. The AP-876 contributes to easier operation to allow the operator to carry out pocket setting even if he/she has no specific skills, thereby achieving consistent high-quality pocket setting.
The machine supports pocket settings on overalls.
A space is provided at the back of the setting table to support pocket setting work on items such as overalls, which require a large distance from machine arm to needle.
The pocket style jig
can be easily replaced.

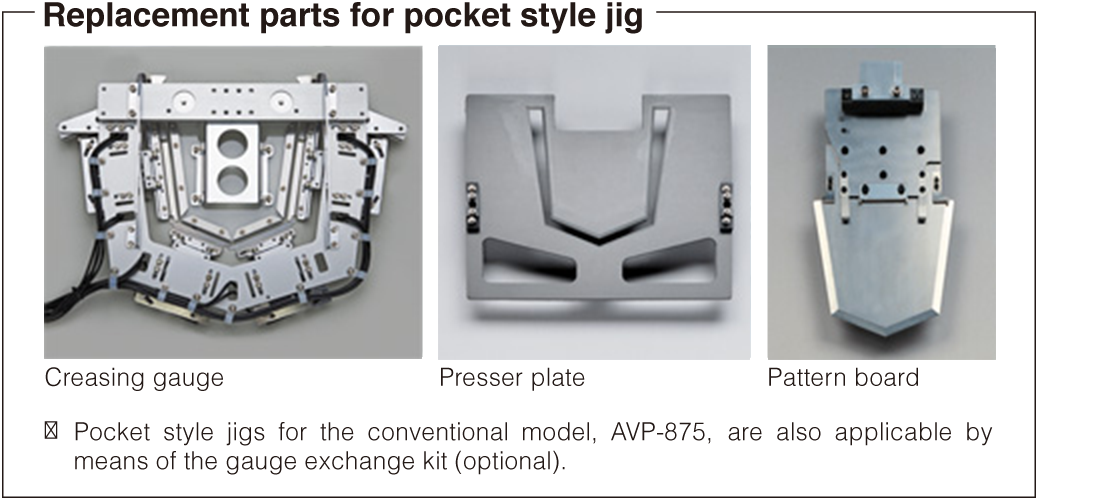

The pocket style jig can be changed in less than five minutes without requiring a tool. This means that the machine supports small-lot production flexibly. In addition, the number of components of the pocket style jig has been reduced for price reduction. The running cost can be reduced as compared with the conventional machines.
Large-sized easy-to-read color liquid crystal display has been adopted.
The AP-876 has adopted, as its operation panel, the IP-420 which has a large color liquid crystal touch panel. Entry and modification of sewing data can now be carried out on the main body of the sewing machine. In addition, the machine supports USB,allowing for the use of various USB thumb drives and media. (SD Card, CompactFlash, Smart Media, Floppy disks).
PM-1 Ver.3] ※Separately available
Programming software for computer-controlled sewing machines On the PM-1 programming software, a sewing data can be easily input, checked and corrected in more detail as compared with the IP-420.
PM-1 Ver.3] ※Separately available
Programming software for computer-controlled sewing machines On the PM-1 programming software, a sewing data can be easily input, checked and corrected in more detail as compared with the IP-420.
The machine folds pocket cloths with fine,
sharp creases and absolutely no material slippage.
A pocket cloth is folded on the table surface and properly tensed by a pocket style jig to create sharp creases without material slippage or bulging. The pocket cloth is vertically shifted and pulled to the suitable tautness for placement on the garment body. This prevents the pocket cloth from slipping out of the correct position and makes it easy to adjust folding timing. With this pocket-folding and pocket-positioning mechanism, the machine is widely adaptable to various materials.
The machine achieves consistent seam quality.

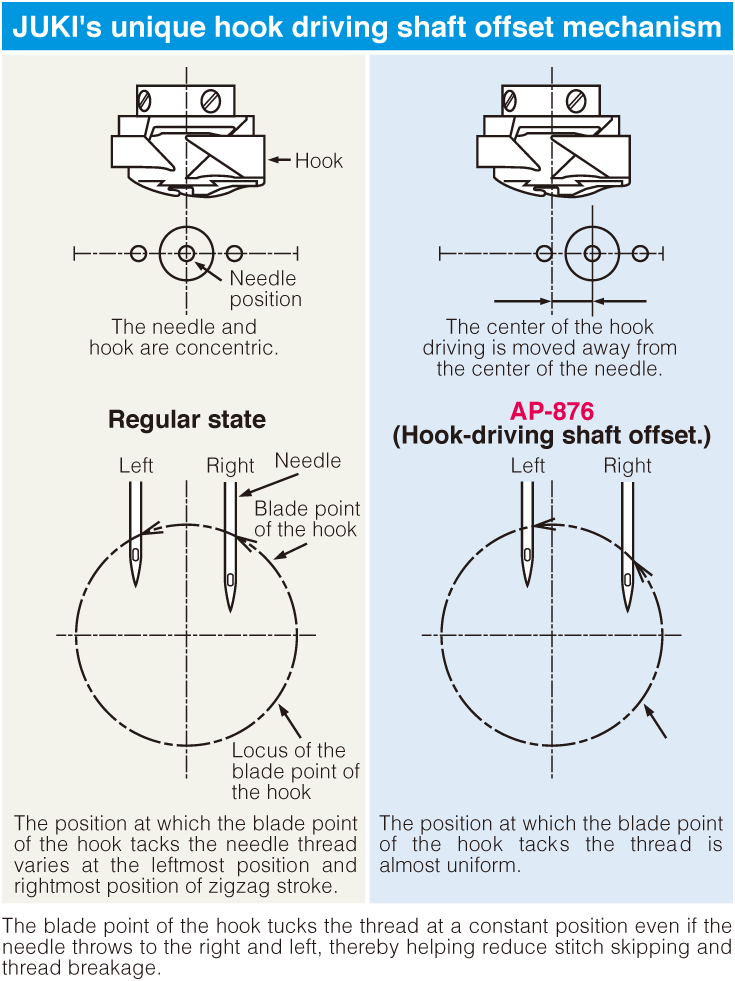

The presser plate clamps the pocket cloth at the center of the sewing area so that the entire pocket cloth is pressed down evenly, thereby preventing the cloth from flopping. In addition, by installing JUKI’s unique hook-driving-shaft offset mechanism in the machine head, the machine produces beautiful seams with consistency while preventing the stitch skipping or thread breakage that is liable to occur when the needle throws to the right and left.
The exclusive machine head which achieves beautiful and consistent seam quality.
Active tension
Market-proven active tension has been introduced to the needle thread tension controller. Pinpoint adjustment of the needle thread tension is enabled during sewing. Data on the thread tension setting relative to the material thickness and thread tension correction which varies depending on the sewing direction can be entered through the operation panel on a stitch-by-stitch basis. The needle thread tension is reproducible. This reduces the setup time required when changing the material thickness.
Encoder control system contributes to reduced power consumption.
Encoder control system contributes
to reduced power consumption.
to reduced power consumption.
The stacker which completes a series of
pocket setting operation procedures.
The stacker can stack 64 pieces of finished products at the maximum. In addition, the stacker is equipped as standard with a stacker-capacity detector. The stacker can be stored inside the main body of the AP-876 sewing machine. Stacker can be retracted by operating the operation panel (IP-420). This system is very helpful when moving the machine.
Download files (1)
Apparel Sewing machines
AP-876
Jeans Pocket Setter
AP-876 The machine automatizes a series of pocket setting processes such as the folding of a pocket, placement of the pocket on a garment body, sewing, bartacking and stacking, thereby increasing productivity and achieving production without requiring the operator to have any special skill. This promises consistent finished quality.
The machine fully automatizes a series of pocket setting processes to achieve higher productivity and consistent quality.
4.000
sti/min
6 mm
stitch length
Product overview
The machine automatizes a series of pocket setting processes such as the folding of a pocket, placement of the pocket on a garment body, sewing, bartacking and stacking, thereby increasing productivity and achieving production without requiring the operator to have any special skill. This promises consistent finished quality.
Quality production without relying on operator skill , quality improvement
The hip pocket of jeans and other garments is a highly visible element of those products. Its finished quality determines the product value. The pocket setting process is, therefore, a very important process. The AP-876 contributes to easier operation to allow the operator to carry out pocket setting even if he/she has no specific skills, thereby achieving consistent high-quality pocket setting.
The machine supports pocket settings on overalls.
A space is provided at the back of the setting table to support pocket setting work on items such as overalls, which require a large distance from machine arm to needle.
The pocket style jig
can be easily replaced.
The pocket style jig can be changed in less than five minutes without requiring a tool. This means that the machine supports small-lot production flexibly. In addition, the number of components of the pocket style jig has been reduced for price reduction. The running cost can be reduced as compared with the conventional machines.
Large-sized easy-to-read color liquid crystal display has been adopted.
The AP-876 has adopted, as its operation panel, the IP-420 which has a large color liquid crystal touch panel. Entry and modification of sewing data can now be carried out on the main body of the sewing machine. In addition, the machine supports USB,allowing for the use of various USB thumb drives and media. (SD Card, CompactFlash, Smart Media, Floppy disks).
PM-1 Ver.3] ※Separately available
Programming software for computer-controlled sewing machines On the PM-1 programming software, a sewing data can be easily input, checked and corrected in more detail as compared with the IP-420.
PM-1 Ver.3] ※Separately available
Programming software for computer-controlled sewing machines On the PM-1 programming software, a sewing data can be easily input, checked and corrected in more detail as compared with the IP-420.
The machine folds pocket cloths with fine,
sharp creases and absolutely no material slippage.
A pocket cloth is folded on the table surface and properly tensed by a pocket style jig to create sharp creases without material slippage or bulging. The pocket cloth is vertically shifted and pulled to the suitable tautness for placement on the garment body. This prevents the pocket cloth from slipping out of the correct position and makes it easy to adjust folding timing. With this pocket-folding and pocket-positioning mechanism, the machine is widely adaptable to various materials.
The machine achieves consistent seam quality.
The presser plate clamps the pocket cloth at the center of the sewing area so that the entire pocket cloth is pressed down evenly, thereby preventing the cloth from flopping. In addition, by installing JUKI’s unique hook-driving-shaft offset mechanism in the machine head, the machine produces beautiful seams with consistency while preventing the stitch skipping or thread breakage that is liable to occur when the needle throws to the right and left.
The exclusive machine head which achieves beautiful and consistent seam quality.
Active tension
Market-proven active tension has been introduced to the needle thread tension controller. Pinpoint adjustment of the needle thread tension is enabled during sewing. Data on the thread tension setting relative to the material thickness and thread tension correction which varies depending on the sewing direction can be entered through the operation panel on a stitch-by-stitch basis. The needle thread tension is reproducible. This reduces the setup time required when changing the material thickness.
Encoder control system contributes to reduced power consumption.
Encoder control system contributes
to reduced power consumption.
to reduced power consumption.
The stacker which completes a series of
pocket setting operation procedures.
The stacker can stack 64 pieces of finished products at the maximum. In addition, the stacker is equipped as standard with a stacker-capacity detector. The stacker can be stored inside the main body of the AP-876 sewing machine. Stacker can be retracted by operating the operation panel (IP-420). This system is very helpful when moving the machine.
Specification
All Functions
Specification
Application
Full-automatic
Max Sewing Speed
4000sti/min
Max Stitch Length
6 mm
Storage of Pattern Data in the Memory
Max. 999 pattern
Sewing Area
250 mm x 250 mm
Machine Head
High-speed, 1-needle, lockstitch, zigzag stitching machine (exclusive machine head)
Operation Panel
IP-420 (large-sized color liquid crystal touch panel)
Standard Accessories
