APW-896N
Lockstitch, Automatic Welting Machine
This is the automatic sewing machine which is ideally suited for sewing slanted pockets
For slanted pockets
Contact Agent
See Series Specification (3)
Sewing Speed
3.000
sti/min
2,5 mm
stitch length
Product overview
The machine supports the sewing of straight pockets (with flaps) on suits, jackets and pants.
Double-/single-welt sewing can be changed over by the simple touch of a key on the operation panel.
Increased adjustable range of sewing lengths
(min. 18mm to max. 220mm)
In addition to the APW-895's functions, the APW-896 supports
the sewing of slanted pockets (for sewing slanted flaps).
The world's first computer-controlled sidewise cutting position of the corner knives enables easy adjustments of the knives simply by operating the panel.
Double-/single-welt sewing can be changed over by the simple touch of a key on the operation panel.
Increased adjustable range of sewing lengths
(min. 18mm to max. 220mm)
In addition to the APW-895's functions, the APW-896 supports
the sewing of slanted pockets (for sewing slanted flaps).
The world's first computer-controlled sidewise cutting position of the corner knives enables easy adjustments of the knives simply by operating the panel.

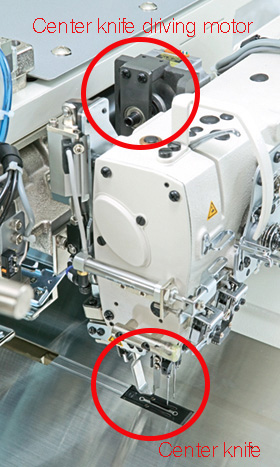

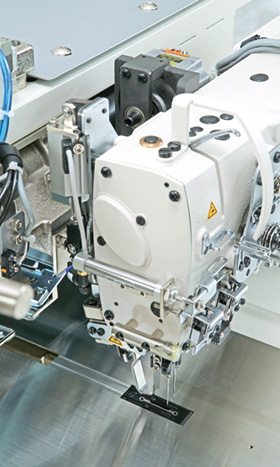

Increased sharpness of the center knife
An independently driven (speed can be changed) stepping motor is adopted for the center knife.
The center knife therefore remains unaffected by the sewing speed and cuts more sharply and cleanly. In addition, the knife shape is improved to prevent bending and demonstrates increased sharpness when an elastic material is being sewn.
The center knife therefore remains unaffected by the sewing speed and cuts more sharply and cleanly. In addition, the knife shape is improved to prevent bending and demonstrates increased sharpness when an elastic material is being sewn.
Increased productivity
In addition to the high-speed machine head with a maximum speed of 3,000 sti/min, faster movement (jump and forwarding) of the clamp foot achieves a shorter machine time.
Power consumption is substantially reduced
The reduced energy consumption of the APW-895/896 ensures superior power-conservation and cost effectiveness. The adoption of a direct-drive system (compact AC servomotor) with superb energy-transfer properties cuts the average power consumption by 75% compared with the forerunner of the APW-895. The power consumption during standby is reduced by as much as 90%.

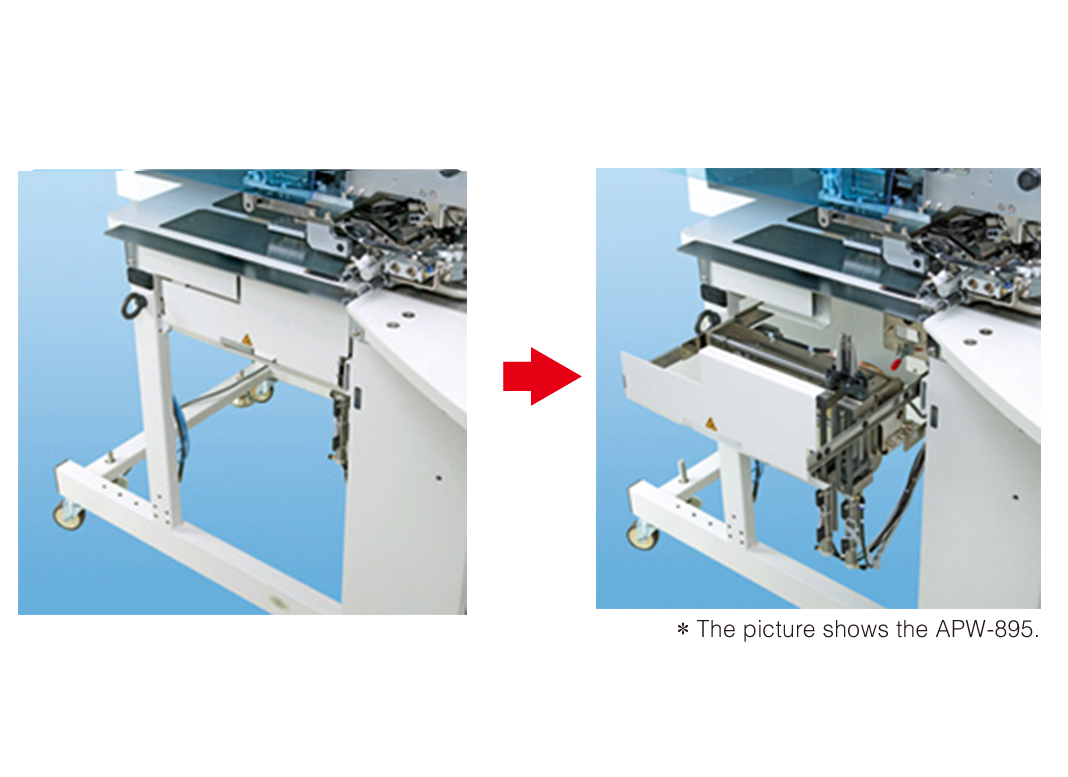

The corner knives are easily adjustable
The corner knives, which can be drawn out in the entire knife unit is adopted. The knives are easily adjusted and can also be changed with ease. The slim corner knife cover helps reduce material thrusting, thereby achieving material cutting with accuracy.
Time required for setup changing is substantially shortened

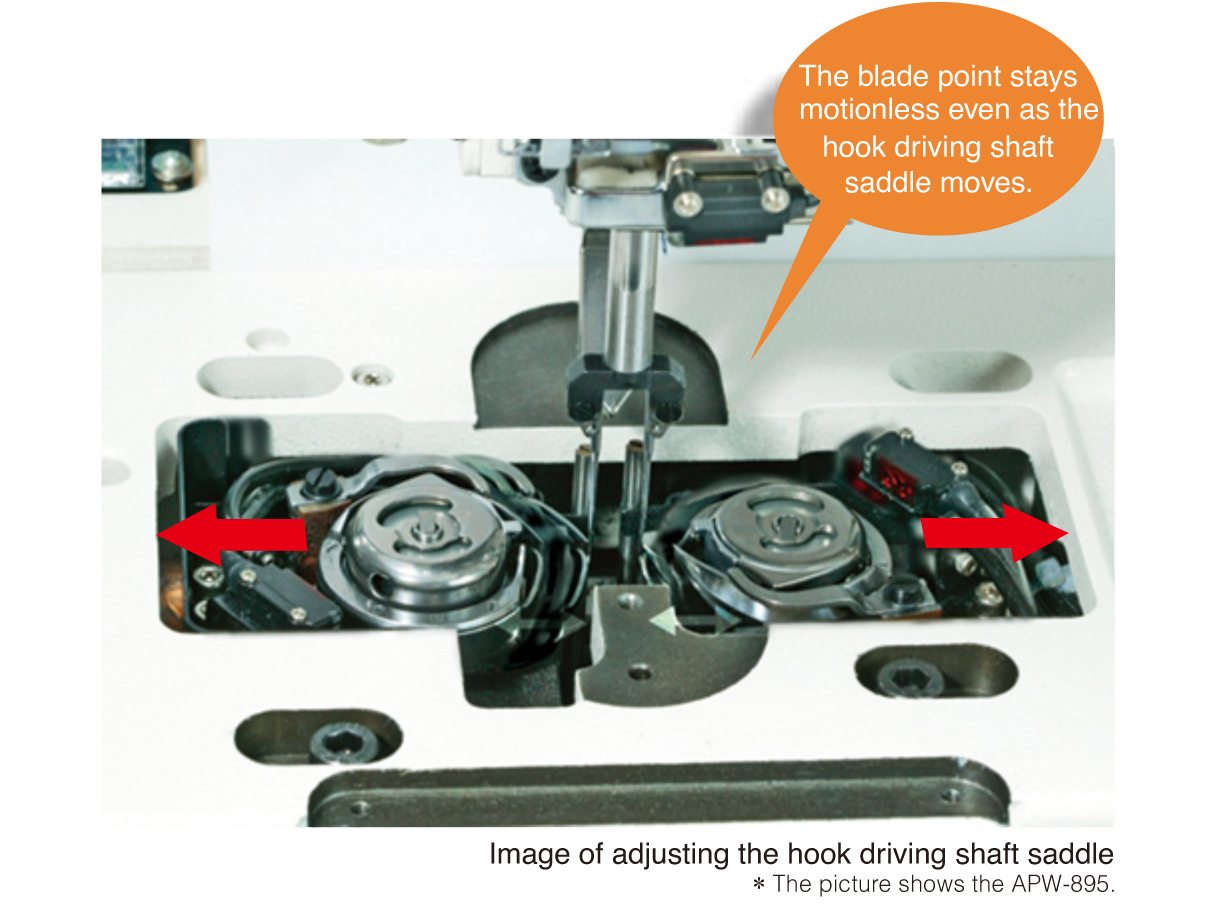

- The machine is equipped with a simple gauge changing mechanism which enables the changing and adjustment of the position of the hook driving shaft saddle from the top of the bed without tilting the machine head. The time required to change a needle gauge is less than a half of that required by conventional machines.
- The position of the folding plate and needle does not change even when double-/single-welt sewing is changed over. This means that the folding plate does not need any adjustment.
- The machine is provided as standard with a micro-adjusting function for adjusting the clamp foot position. This enables djboth accurate and quick adjustments of the welting width.ustments of the welting width.

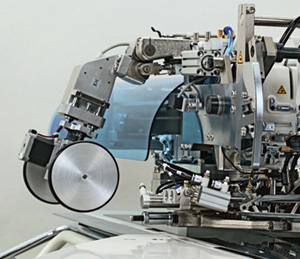

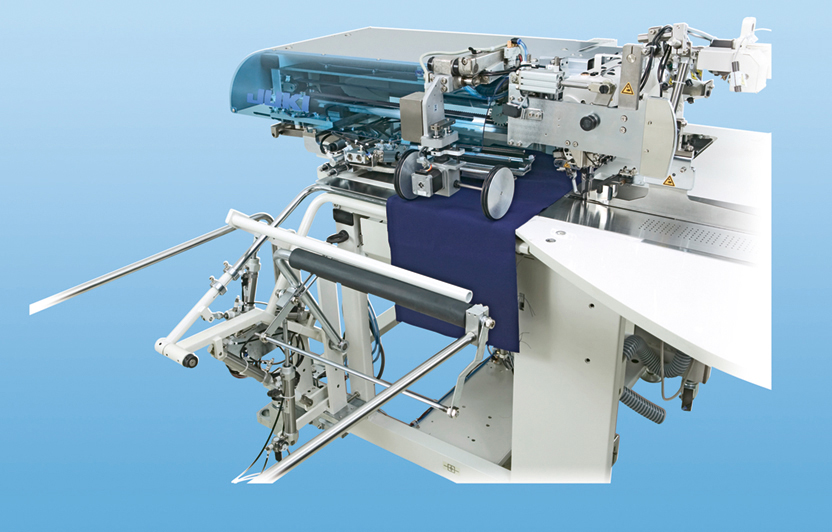

Newly developed stacker which is able to handle small articles
Two kinds of stackers are available; i.e., clamp bar stacker (SP-46) and roller stacker (SP-47). With the stacker, the machine is able to handle materials with a shortest distance of 250 mm from its edge to the pocket. A stacking sensor is also provided as ard to preventstandard to prevent stacking errors. stacking errors.

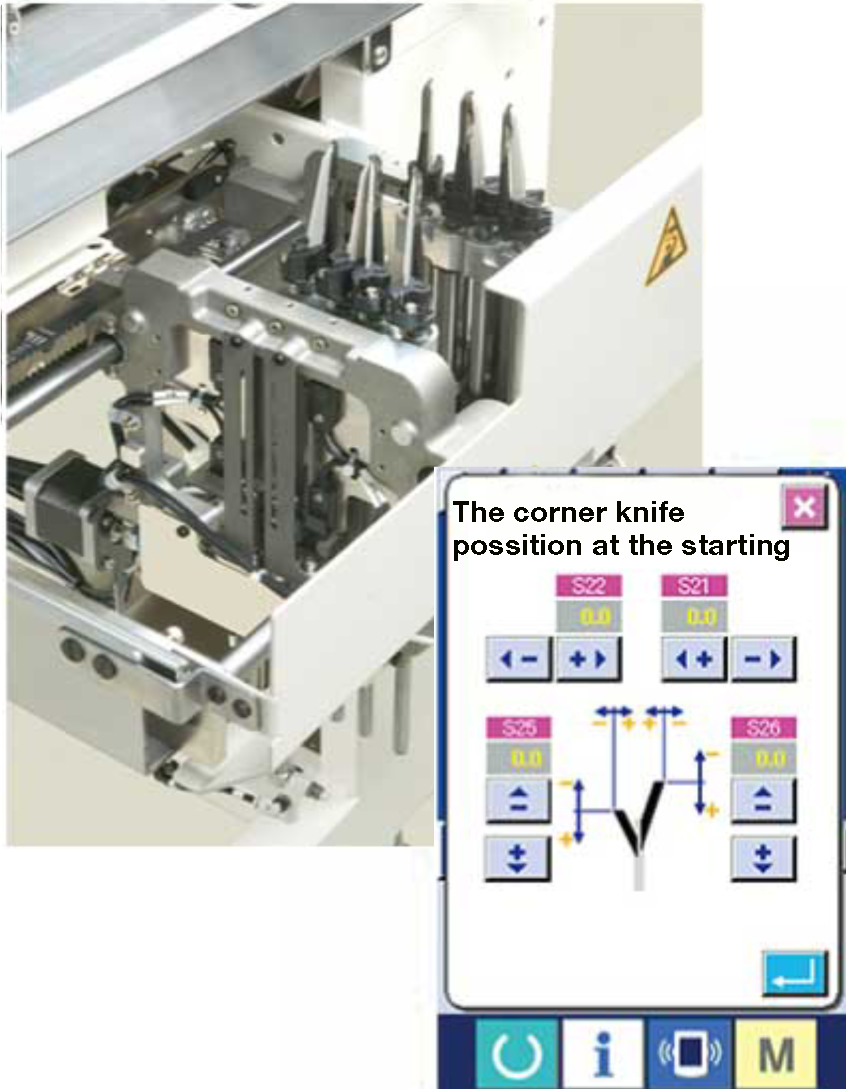

The world's first "corner-knife cutting adjustment" through the operation panel is achieved
There are many different kinds of welting patches in terms of specifications and materials. The corner knife cutting at the corner part of a welt needs fine adjustments. This can now be easily adjusted in 0.1 mm steps only through the operation panel since the corner knife comes with "computer control of the cutting position" and an "independent right- and left-blade lifting/lowering" mechanism. Fine adjustments of the amount of knife cutting to the stitch can be done both in the crosswise and lengthwise directions, not through the use of a tool, but simply by operating the operation panel. This substantially reduces the adjustment time and finishes high-quality welt.

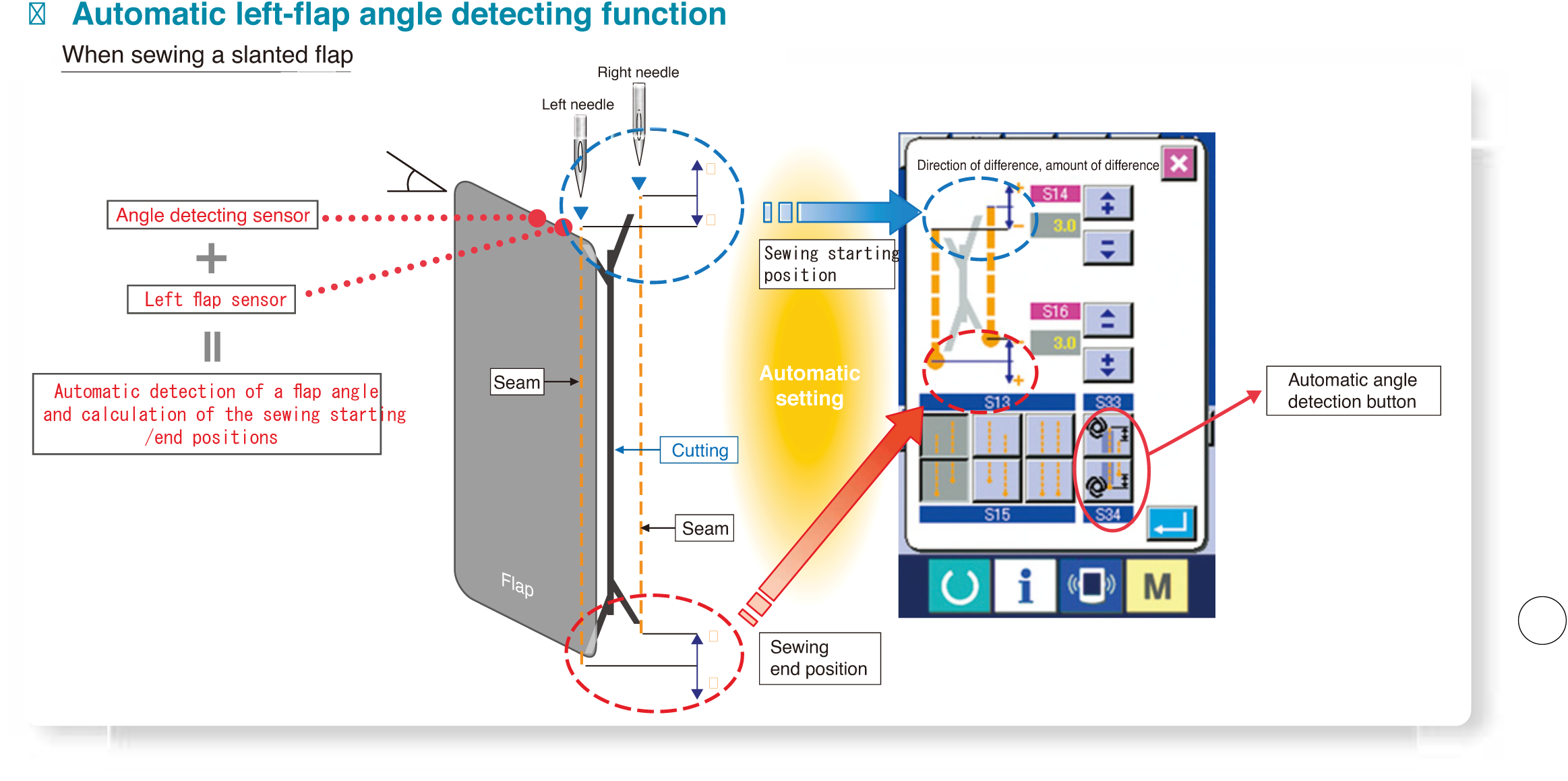

The machine is provided as standard with the "automatic left-flap angle detecting function"
By pressing the automatic angle detection button on the operation panel when sewing a left flap, the two sensors detect the flap angle to adjust the sewing starting (sewing end) position of the right and left needles when sewing a left flap.
* This function is provided as standard only on left-flap sewing.
* When automatic detection finds a difference of less than 0.5 mm, parallel stitching is performed.
* For the sewing of single welt, the flap-angle detecting sensors cannot be used. Only the flap sensor can be used.
* This function is provided as standard only on left-flap sewing.
* When automatic detection finds a difference of less than 0.5 mm, parallel stitching is performed.
* For the sewing of single welt, the flap-angle detecting sensors cannot be used. Only the flap sensor can be used.
Equal stitch-length right/left backtacking function is installed
The machine comes with an added function for equalizing the right and left backtack stitch length for the sewing of slanted pockets. This function helps improve the backtack seam quality.
Download files (1)
Apparel Sewing machines
APW-896N
Lockstitch, Automatic Welting Machine
This is the automatic sewing machine which is ideally suited for sewing slanted pockets
For slanted pockets
Sewing Speed
3.000
sti/min
2,5 mm
stitch length
Product overview
The machine supports the sewing of straight pockets (with flaps) on suits, jackets and pants.
Double-/single-welt sewing can be changed over by the simple touch of a key on the operation panel.
Increased adjustable range of sewing lengths
(min. 18mm to max. 220mm)
In addition to the APW-895's functions, the APW-896 supports
the sewing of slanted pockets (for sewing slanted flaps).
The world's first computer-controlled sidewise cutting position of the corner knives enables easy adjustments of the knives simply by operating the panel.
Double-/single-welt sewing can be changed over by the simple touch of a key on the operation panel.
Increased adjustable range of sewing lengths
(min. 18mm to max. 220mm)
In addition to the APW-895's functions, the APW-896 supports
the sewing of slanted pockets (for sewing slanted flaps).
The world's first computer-controlled sidewise cutting position of the corner knives enables easy adjustments of the knives simply by operating the panel.
Increased sharpness of the center knife
An independently driven (speed can be changed) stepping motor is adopted for the center knife.
The center knife therefore remains unaffected by the sewing speed and cuts more sharply and cleanly. In addition, the knife shape is improved to prevent bending and demonstrates increased sharpness when an elastic material is being sewn.
The center knife therefore remains unaffected by the sewing speed and cuts more sharply and cleanly. In addition, the knife shape is improved to prevent bending and demonstrates increased sharpness when an elastic material is being sewn.
Increased productivity
In addition to the high-speed machine head with a maximum speed of 3,000 sti/min, faster movement (jump and forwarding) of the clamp foot achieves a shorter machine time.
Power consumption is substantially reduced
The reduced energy consumption of the APW-895/896 ensures superior power-conservation and cost effectiveness. The adoption of a direct-drive system (compact AC servomotor) with superb energy-transfer properties cuts the average power consumption by 75% compared with the forerunner of the APW-895. The power consumption during standby is reduced by as much as 90%.
The corner knives are easily adjustable
The corner knives, which can be drawn out in the entire knife unit is adopted. The knives are easily adjusted and can also be changed with ease. The slim corner knife cover helps reduce material thrusting, thereby achieving material cutting with accuracy.
Time required for setup changing is substantially shortened
- The machine is equipped with a simple gauge changing mechanism which enables the changing and adjustment of the position of the hook driving shaft saddle from the top of the bed without tilting the machine head. The time required to change a needle gauge is less than a half of that required by conventional machines.
- The position of the folding plate and needle does not change even when double-/single-welt sewing is changed over. This means that the folding plate does not need any adjustment.
- The machine is provided as standard with a micro-adjusting function for adjusting the clamp foot position. This enables djboth accurate and quick adjustments of the welting width.ustments of the welting width.
Newly developed stacker which is able to handle small articles
Two kinds of stackers are available; i.e., clamp bar stacker (SP-46) and roller stacker (SP-47). With the stacker, the machine is able to handle materials with a shortest distance of 250 mm from its edge to the pocket. A stacking sensor is also provided as ard to preventstandard to prevent stacking errors. stacking errors.
The world's first "corner-knife cutting adjustment" through the operation panel is achieved
There are many different kinds of welting patches in terms of specifications and materials. The corner knife cutting at the corner part of a welt needs fine adjustments. This can now be easily adjusted in 0.1 mm steps only through the operation panel since the corner knife comes with "computer control of the cutting position" and an "independent right- and left-blade lifting/lowering" mechanism. Fine adjustments of the amount of knife cutting to the stitch can be done both in the crosswise and lengthwise directions, not through the use of a tool, but simply by operating the operation panel. This substantially reduces the adjustment time and finishes high-quality welt.
The machine is provided as standard with the "automatic left-flap angle detecting function"
By pressing the automatic angle detection button on the operation panel when sewing a left flap, the two sensors detect the flap angle to adjust the sewing starting (sewing end) position of the right and left needles when sewing a left flap.
* This function is provided as standard only on left-flap sewing.
* When automatic detection finds a difference of less than 0.5 mm, parallel stitching is performed.
* For the sewing of single welt, the flap-angle detecting sensors cannot be used. Only the flap sensor can be used.
* This function is provided as standard only on left-flap sewing.
* When automatic detection finds a difference of less than 0.5 mm, parallel stitching is performed.
* For the sewing of single welt, the flap-angle detecting sensors cannot be used. Only the flap sensor can be used.
Equal stitch-length right/left backtacking function is installed
The machine comes with an added function for equalizing the right and left backtack stitch length for the sewing of slanted pockets. This function helps improve the backtack seam quality.
