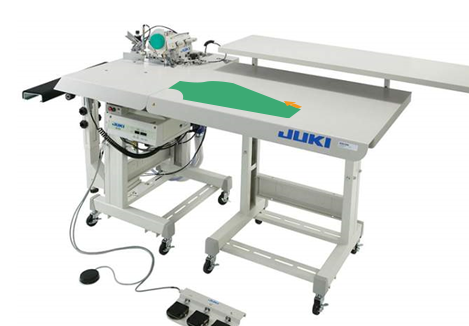

ASN-690L
Automatic Serging Machine Long-table Type
Super-high-speed serging machine developed to achieve a simple structure and ease of use.
Contact Agent
See Specification
Sewing Speed
8.000
sti/min
Stitch length
4
mm
Product overview
Increased productivity is required in the serging process. JUKI has launched its super-high speed machine developed in pursuit of simple-in-operation and ease-of-use. To fully support the operator so that he/she can carry out serging speedily, the machine comes in two different types; the long-table type and the short-table type which permits easy handling of the material.
Easy of Use.
Increased productivity is required in the serging process. JUKI has launched its super-high-speed machine developed in pursuit of simple-in-operation and ease-of-use. To fully support the operator so that he/she can carry out serging speedily, the machine comes in two different types: the long-table type and the short-table type which permits easy handling of the material.
The machine is equipped with the super-high speed overlock machine head MO-6904S.
The machine achieves the high-speed performance of up to 8.000 sti/min to promise increased productivity. The machine performs serging according to the material used, is capable of sewing with reduced thread tension and promises consistent seam quality free from slip-off seams at curved parts of the material.
Looper Cleaner
A dust extractor is equipped as standard in the upper looer arm section where dust is likely to gather. It helps prevent dust from accumulating inside the cloth chip cover.
Micro-lifter Device
The machine is provided as standard with a micro-lifter device which adjusts the lifting amount of the presser foot to the material thickness to achieve improved seam quality, while preventing puckering and material damage.

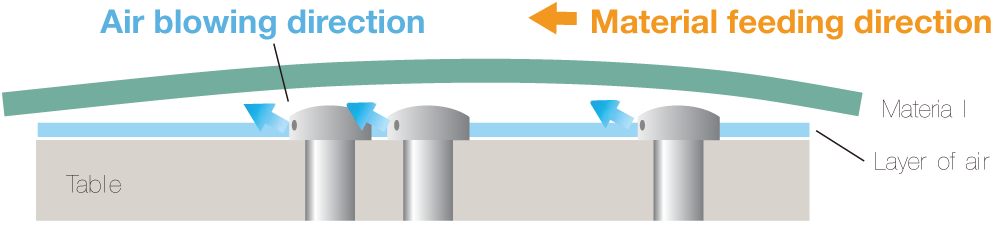

Air-blow table
The machine comes with an air-blow table, which issues a jet of air from its air nozzles at three locations to contribute to smoother handling of the material.
Download files (1)
Apparel Sewing machines
ASN-690L
Automatic Serging Machine Long-table Type
Super-high-speed serging machine developed to achieve a simple structure and ease of use.
Sewing Speed
8.000
sti/min
Stitch length
4
mm
Product overview
Increased productivity is required in the serging process. JUKI has launched its super-high speed machine developed in pursuit of simple-in-operation and ease-of-use. To fully support the operator so that he/she can carry out serging speedily, the machine comes in two different types; the long-table type and the short-table type which permits easy handling of the material.
Easy of Use.
Increased productivity is required in the serging process. JUKI has launched its super-high-speed machine developed in pursuit of simple-in-operation and ease-of-use. To fully support the operator so that he/she can carry out serging speedily, the machine comes in two different types: the long-table type and the short-table type which permits easy handling of the material.
The machine is equipped with the super-high speed overlock machine head MO-6904S.
The machine achieves the high-speed performance of up to 8.000 sti/min to promise increased productivity. The machine performs serging according to the material used, is capable of sewing with reduced thread tension and promises consistent seam quality free from slip-off seams at curved parts of the material.
Looper Cleaner
A dust extractor is equipped as standard in the upper looer arm section where dust is likely to gather. It helps prevent dust from accumulating inside the cloth chip cover.
Micro-lifter Device
The machine is provided as standard with a micro-lifter device which adjusts the lifting amount of the presser foot to the material thickness to achieve improved seam quality, while preventing puckering and material damage.
Air-blow table
The machine comes with an air-blow table, which issues a jet of air from its air nozzles at three locations to contribute to smoother handling of the material.
Specification
All Functions
Specification
Application
Serging of skirts, pants, jeans etc.
Max Sewing Speed
8000sti/min
Max Stitch Length
4 mm
Needle
DCx27 (#11) #9-14
Machine Head
MO-6904S (super-high-speed, 1-needle overlock machine)
Overedging Width
4.0, 4.8, 5.6 mm
Differential Feed Ratio
For gathering 1:2 (max. 1:4), For stretching 1:0,7 (max. 1:0,6)
Standard Accessories
