DDL-7000A
Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer
The DDL-7000A has servo-motor, operation panel and control box all as standard built into the machine head. These features lead to lower power consumption and better material responsiveness.
In-Built Control Box and Servo-Motor
Contact Agent
See Specification
"Internally Built Servo-Motor"
"Interanlly Built Control Box/Panel"
"Provide As Standard With a USB Slot"
Product overview
The DDL-7000A is a energy saving lockstitch machine with an internally built direct driver servo motor. With automatic thread trimming and the seam quality Juki is know for thid model while simple will deliver time and time again.
Energy-saving servomotor is installed in the direct-drive style.
The energy-saving and highly efficient servomotor is installed in the direct-drive style to transmit power without loss to the sewing machine, thereby providing improved responsiveness, quicker start-up and increased needle penetration force.
INTERGRATED SYSTEM

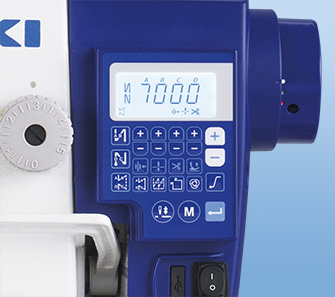

Both the compact-sized control box and the operation panel are integrated with the machine head. The machine is provided as standard with the operation panel.
The operation panel is equipped box with ease with many different functions.
The operation panel is equipped box with ease with many different functions.
SEW MANY TYPES OF MATERIALS
The thread take-up lever which provides a wider sewing range is adopted. Needle bar stroke is 35 mm,With this feature, the sewing machine is able to sew many different types of materials ranging from light-weight ones to medium-weight denim.

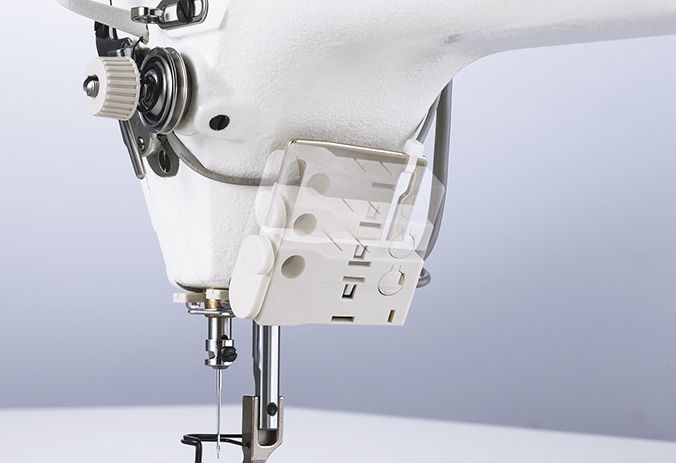

HIGHLY-FUNCTIONAL TOUCH-BACK SWITCH
JUKI's sewing machine which is provided with a thread trimmer is also provided as standard with the renowned needle breakage preventing function. The main shaft angle control works to prevent needle breakage even when the touch-back switch is used to perform reverse feed stitching. The height of the touch-back switch is adjustable according to the items to be sewn.

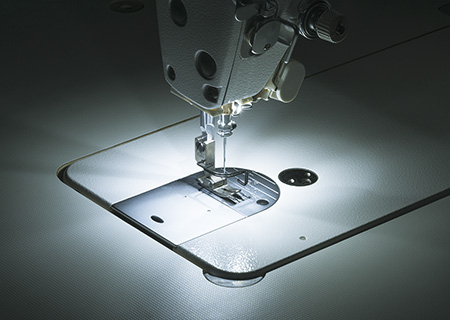

Provided as standard with LED lighting
Since the LED lights cast their light exactly downward to illuminate the needle entry area from the right and left sides of the needle bar, sewing work can be carried out more easily as compared with the use of light from one direction. In addition, the illuminance of the LED lights can be adjusted in five steps and can be used as an auxiliary light for work.
Download files (1)
Apparel Sewing machines
DDL-7000A
Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer
The DDL-7000A has servo-motor, operation panel and control box all as standard built into the machine head. These features lead to lower power consumption and better material responsiveness.
In-Built Control Box and Servo-Motor
"Internally Built Servo-Motor"
"Interanlly Built Control Box/Panel"
"Provide As Standard With a USB Slot"
Product overview
The DDL-7000A is a energy saving lockstitch machine with an internally built direct driver servo motor. With automatic thread trimming and the seam quality Juki is know for thid model while simple will deliver time and time again.
Energy-saving servomotor is installed in the direct-drive style.
The energy-saving and highly efficient servomotor is installed in the direct-drive style to transmit power without loss to the sewing machine, thereby providing improved responsiveness, quicker start-up and increased needle penetration force.
INTERGRATED SYSTEM
Both the compact-sized control box and the operation panel are integrated with the machine head. The machine is provided as standard with the operation panel.
The operation panel is equipped box with ease with many different functions.
The operation panel is equipped box with ease with many different functions.
SEW MANY TYPES OF MATERIALS
The thread take-up lever which provides a wider sewing range is adopted. Needle bar stroke is 35 mm,With this feature, the sewing machine is able to sew many different types of materials ranging from light-weight ones to medium-weight denim.
HIGHLY-FUNCTIONAL TOUCH-BACK SWITCH
JUKI's sewing machine which is provided with a thread trimmer is also provided as standard with the renowned needle breakage preventing function. The main shaft angle control works to prevent needle breakage even when the touch-back switch is used to perform reverse feed stitching. The height of the touch-back switch is adjustable according to the items to be sewn.
Provided as standard with LED lighting
Since the LED lights cast their light exactly downward to illuminate the needle entry area from the right and left sides of the needle bar, sewing work can be carried out more easily as compared with the use of light from one direction. In addition, the illuminance of the LED lights can be adjusted in five steps and can be used as an auxiliary light for work.
Specification
All Functions
Specification
Application
Light to medium-weight material, Heavy-weight material
Max Sewing Speed
5000sti/min
Max Stitch Length
5 mm
Needle
DBx1(#21)#20-23 (Nm125-160)
Presser Foot
By hand: 5.5mm, By knee: 13mm
Standard Accessories
