DDL-9000C-FMS PBN
Semi-dry head, Direct-drive, 1-needle Lockstitch Sewing System with Automatic Thread Trimmer (Bird’s nest prevention type)
The machine starts sewing with the needle thread clamped and held with its unique air & ball type clamp. High-quality seams, thereby, are promised without leaving bird's nests (thread tangling) on the wrong side of the material.
Digital Lockstitch With Birds Nest Prevention
Contact Agent
See Specification
"Anti Birds Nest"
"All Parameters Digitalized"
"Wireless Communication"
Product overview
A state-of-the-art sewing system that has revolutionizes the sewing industry. The ability to set parameters digitally in JUKI's DDL-9000C presents the best sewing conditions everywhere and anywhere with out a need for years of experience or countless hours of technical knowledge. Now with anti-brids nest function device.
NEW THREAD TRIMMING
The machine adopts a new thread trimming method where the newly-developed thread trimming mechanism trims the thread directly below the throat plate while the last stitch (or two stitches) at the end of sewing is (are) sewn with a smaller stitch length using condensation stitching. As a result, the length of thread remaining on the material is shortened, thereby eliminating thread nipping work.The machine starts sewing with the needle thread clamped and held with its unique air & ball type clamp. High-quality seams, thereby, are promised without leaving bird's nests (thread tangling) on the wrong side of the material.
DIGITAL ADJUSTMENT
Digital Adjustment of the Sewing Machine
Management, browsing and editing of sewing data can be carried out via the JUKI Smart App (Android) or directly on the machines touch screen interface. This enables quick checking for settings as well as ensuring that there is consistancy in the line set up. Techincal staff no longer need to speed time manually adjusting each sewing machine on a line - simply program one and then copy the same setting cross to the other machines. As sewing parameters such as thread tension, feed movement and stitch length are programed numberically you can be sure that each machine is performing in the right settings. Data management and software update can be carried out with ease using a USB thumb drive.
Management, browsing and editing of sewing data can be carried out via the JUKI Smart App (Android) or directly on the machines touch screen interface. This enables quick checking for settings as well as ensuring that there is consistancy in the line set up. Techincal staff no longer need to speed time manually adjusting each sewing machine on a line - simply program one and then copy the same setting cross to the other machines. As sewing parameters such as thread tension, feed movement and stitch length are programed numberically you can be sure that each machine is performing in the right settings. Data management and software update can be carried out with ease using a USB thumb drive.
Reliable grasping of thread by the clamping method
The sewing machine has adopted the thread clamping system that pneumatically draws the needle thread which remains after thread trimming and clamps it with the ball. As a result, the needle thread is clamped without fail while requiring no additional adjustment even when the type and count of thread is changed.

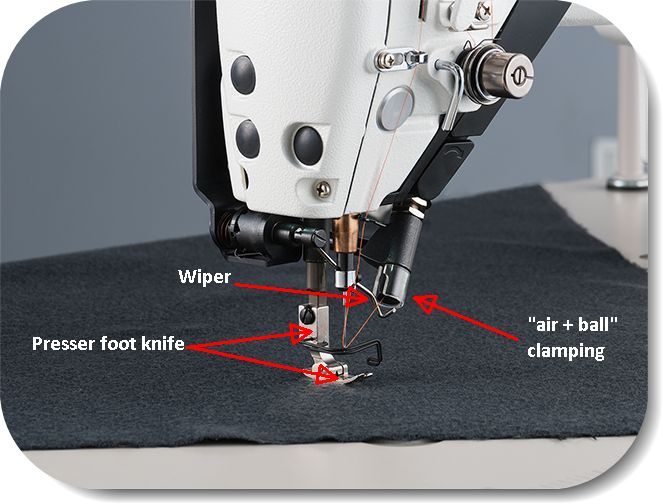

JUKI's unique "air + ball" clamping system
Not only the reliable thread clamping mechanism but also downsized needle-surrounding portion of the machine head are achieved by the thread clamp mechanism that combines the air cylinder with the ball. Due to its strong thread clamping force, the needle thread can also be trimmed without fail.
JUKI's unique "air + ball" clamping system
Not only the reliable thread clamping mechanism but also downsized needle-surrounding portion of the machine head are achieved by the thread clamp mechanism that combines the air cylinder with the ball. Due to its strong thread clamping force, the needle thread can also be trimmed without fail.
Download files (1)
Apparel Sewing machines
DDL-9000C-FMS PBN
Semi-dry head, Direct-drive, 1-needle Lockstitch Sewing System with Automatic Thread Trimmer (Bird’s nest prevention type)
The machine starts sewing with the needle thread clamped and held with its unique air & ball type clamp. High-quality seams, thereby, are promised without leaving bird's nests (thread tangling) on the wrong side of the material.
Digital Lockstitch With Birds Nest Prevention
"Anti Birds Nest"
"All Parameters Digitalized"
"Wireless Communication"
Product overview
A state-of-the-art sewing system that has revolutionizes the sewing industry. The ability to set parameters digitally in JUKI's DDL-9000C presents the best sewing conditions everywhere and anywhere with out a need for years of experience or countless hours of technical knowledge. Now with anti-brids nest function device.
NEW THREAD TRIMMING
The machine adopts a new thread trimming method where the newly-developed thread trimming mechanism trims the thread directly below the throat plate while the last stitch (or two stitches) at the end of sewing is (are) sewn with a smaller stitch length using condensation stitching. As a result, the length of thread remaining on the material is shortened, thereby eliminating thread nipping work.The machine starts sewing with the needle thread clamped and held with its unique air & ball type clamp. High-quality seams, thereby, are promised without leaving bird's nests (thread tangling) on the wrong side of the material.
DIGITAL ADJUSTMENT
Digital Adjustment of the Sewing Machine
Management, browsing and editing of sewing data can be carried out via the JUKI Smart App (Android) or directly on the machines touch screen interface. This enables quick checking for settings as well as ensuring that there is consistancy in the line set up. Techincal staff no longer need to speed time manually adjusting each sewing machine on a line - simply program one and then copy the same setting cross to the other machines. As sewing parameters such as thread tension, feed movement and stitch length are programed numberically you can be sure that each machine is performing in the right settings. Data management and software update can be carried out with ease using a USB thumb drive.
Management, browsing and editing of sewing data can be carried out via the JUKI Smart App (Android) or directly on the machines touch screen interface. This enables quick checking for settings as well as ensuring that there is consistancy in the line set up. Techincal staff no longer need to speed time manually adjusting each sewing machine on a line - simply program one and then copy the same setting cross to the other machines. As sewing parameters such as thread tension, feed movement and stitch length are programed numberically you can be sure that each machine is performing in the right settings. Data management and software update can be carried out with ease using a USB thumb drive.
Reliable grasping of thread by the clamping method
The sewing machine has adopted the thread clamping system that pneumatically draws the needle thread which remains after thread trimming and clamps it with the ball. As a result, the needle thread is clamped without fail while requiring no additional adjustment even when the type and count of thread is changed.
JUKI's unique "air + ball" clamping system
Not only the reliable thread clamping mechanism but also downsized needle-surrounding portion of the machine head are achieved by the thread clamp mechanism that combines the air cylinder with the ball. Due to its strong thread clamping force, the needle thread can also be trimmed without fail.
JUKI's unique "air + ball" clamping system
Not only the reliable thread clamping mechanism but also downsized needle-surrounding portion of the machine head are achieved by the thread clamp mechanism that combines the air cylinder with the ball. Due to its strong thread clamping force, the needle thread can also be trimmed without fail.
Specification
All Functions
Specification
Application
Medium-weight material
Max Sewing Speed
4000sti/min
Lubrication
Semi-dry
Max Stitch Length
4 mm
Needle
DBx1-DPX5(#11)#9-18 (Nm65-110)
Lift of the Presser Foot
Auto: 1 st stage 5.0 mm (0.1-8.5 mm), 2 nd stage 8.5 mm (8.5-13.5 mm), Adjustable on the operation panel
