DLD-5430N-7, DLD-5430N
1-needle, Differential-feed, Lockstitch Machine
With its highly reliable bottom-differential-feed mechanism, the machine promotes the production of upgraded-quality products while increasing efficiency.
Differential-feed Lockstich
Contact Agent
See Specification
02 Icons / 24x24 / ic24-download Created with Sketch.
13mm
Presser Foot height

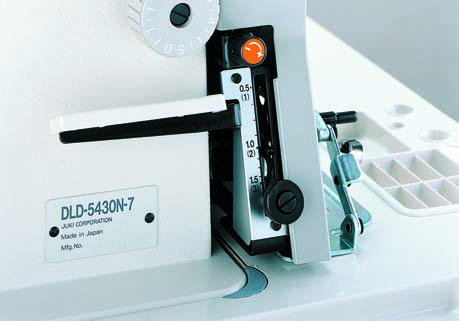

Differential-feed Lockstitch
Automatic Thread Trimming
Product overview
The diferenctial feed makes this moel suit to sewing garments that require an acurate needle position and increased penitrating strength. The automatic thread trimmer means the seam result is always flawless.

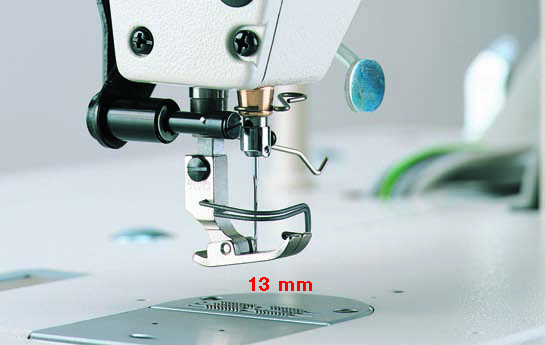

High Lift of the Presser Foot
This machine is equipped with various devices that reduce the operator's fatigue and allow the operator to easily operate the machine. The foot pedal needs only light preasure to be operated. The presser foot can be lifted as high a 13mm. The shape of the machine arm has been designed to allow the operaptr to handle material with ease.

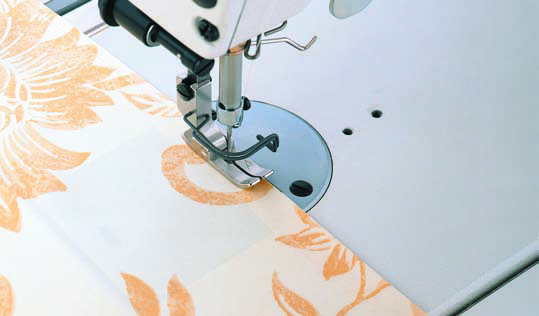

Sewing mechanism that demonstrates outstanding responsiveness to materials to be sew.

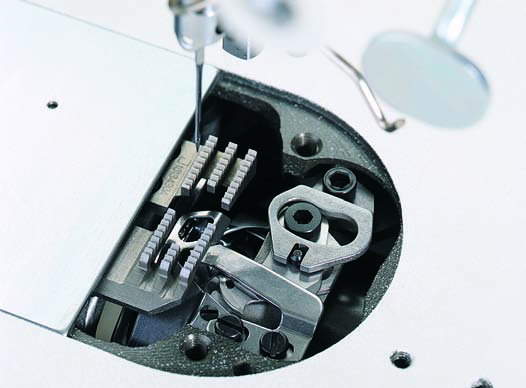

The thread take up mechanism, thread path components and different feed machanism have all been improved in this model. Thanks to this partial shirring can be carried out minium tension applied to the materials thus leading to greater flexibilty in responding to different types of material.
Sure thread trimming mechanism
The machine comes with thread trimming mechanism that performs speedy and sure thread trimming to achieve higly efficient sewing work.
Auto-lifter AK85 (pedal-driven)
Gathering attachment Q036
For high-quality gathering, both effectively and consistently.
Download files (1)
DLD-5430N-7, DLD-5430N
- Leaflet (pdf)
0.69 MB
02 Icons / 24x24 / ic24-download Created with Sketch.

Apparel Sewing machines

DLD-5430N-7, DLD-5430N

1-needle, Differential-feed, Lockstitch Machine

With its highly reliable bottom-differential-feed mechanism, the machine promotes the production of upgraded-quality products while increasing efficiency.

Differential-feed Lockstich

13mm
Presser Foot height
Differential-feed Lockstitch
Automatic Thread Trimming
Product overview
The diferenctial feed makes this moel suit to sewing garments that require an acurate needle position and increased penitrating strength. The automatic thread trimmer means the seam result is always flawless.
High Lift of the Presser Foot
This machine is equipped with various devices that reduce the operator's fatigue and allow the operator to easily operate the machine. The foot pedal needs only light preasure to be operated. The presser foot can be lifted as high a 13mm. The shape of the machine arm has been designed to allow the operaptr to handle material with ease.
Sewing mechanism that demonstrates outstanding responsiveness to materials to be sew.

The thread take up mechanism, thread path components and different feed machanism have all been improved in this model. Thanks to this partial shirring can be carried out minium tension applied to the materials thus leading to greater flexibilty in responding to different types of material.
Sure thread trimming mechanism
The machine comes with thread trimming mechanism that performs speedy and sure thread trimming to achieve higly efficient sewing work.
Auto-lifter AK85 (pedal-driven)
Gathering attachment Q036
For high-quality gathering, both effectively and consistently.
Specification
All Functions
Specification
Max Sewing Speed
4500sti/min
Max Stitch Length
5 mm
Needle
DBx1(#14), 134(Nm90)
Presser Foot
By knee: 13mm
Needle Bar Stroke
30.7 mm
Max. Top-Feed Amount
Shirring 1:1.5 (max. 1:3*), Stretching 1:0.5
Standard Accessories
