DLM-5400N-7
1-needle, Bottom-feed, Lockstitch Machine with Vertical Edge Trimmer and Automatic Thread Trimmer
The DLM head is available in a bottom feed (DLM-5400N-7) and needle feed (DMN-5420N-7) variants depending on your production needs.
Bottom Feed Machine With Material Knife
Contact Agent
See Specification
Material Edge Trimmer
Bottom Feed
Product overview
This lockstich machine comes as standard with a material knife for removing material on the edge of the garment and ensuring a clean finish within predefined seam allowances. The knife is sharp enough to cut a wide variety of material. The one-touch utility knife lever enhances the comfort of operation.

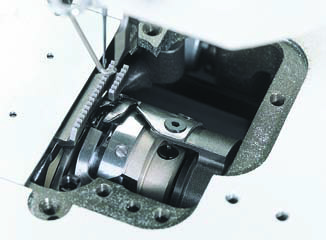

Sure thread trimming mechanism
The tread trimmer is designed to cut various threads of different thicknesses, so the range of the applicable thread thickness number has been widened. The thread trimmer can therefore cut even a thick thread with ease.
The one-touch utility knife lever enhances the comfort of the operation
Since the knife lever has been plasted so as to prevent rust, there is no need to worry about the material becoming soiled with rust.

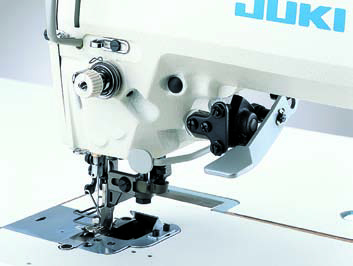

Adjustment of the position of the cloth trimming knife
The cloth trimming knife has been designed so that it can move as much as 5.5 mm toward you from the center of the needle.
The knife is sharp enough to cut any type of material
The knife is capable of cutting any kind of material regardless of its thickness or thoughness, including heavy-weight material, elastic mterial and brushing material.
Auto-lifter AK85 (pedal-driven)
Similar products (1)
Download files (1)
Apparel Sewing machines
DLM-5400N-7
1-needle, Bottom-feed, Lockstitch Machine with Vertical Edge Trimmer and Automatic Thread Trimmer
The DLM head is available in a bottom feed (DLM-5400N-7) and needle feed (DMN-5420N-7) variants depending on your production needs.
Bottom Feed Machine With Material Knife
Material Edge Trimmer
Bottom Feed
Product overview
This lockstich machine comes as standard with a material knife for removing material on the edge of the garment and ensuring a clean finish within predefined seam allowances. The knife is sharp enough to cut a wide variety of material. The one-touch utility knife lever enhances the comfort of operation.
Sure thread trimming mechanism
The tread trimmer is designed to cut various threads of different thicknesses, so the range of the applicable thread thickness number has been widened. The thread trimmer can therefore cut even a thick thread with ease.
The one-touch utility knife lever enhances the comfort of the operation
Since the knife lever has been plasted so as to prevent rust, there is no need to worry about the material becoming soiled with rust.
Adjustment of the position of the cloth trimming knife
The cloth trimming knife has been designed so that it can move as much as 5.5 mm toward you from the center of the needle.
The knife is sharp enough to cut any type of material
The knife is capable of cutting any kind of material regardless of its thickness or thoughness, including heavy-weight material, elastic mterial and brushing material.
Auto-lifter AK85 (pedal-driven)
Specification
All Functions
Specification
Max Sewing Speed
4500sti/min
Max Stitch Length
4 mm
Needle
Dbx1 (#14) #9-18, 134 (Nm90)
Presser Foot
By knee: 10mm
Standard Accessories
