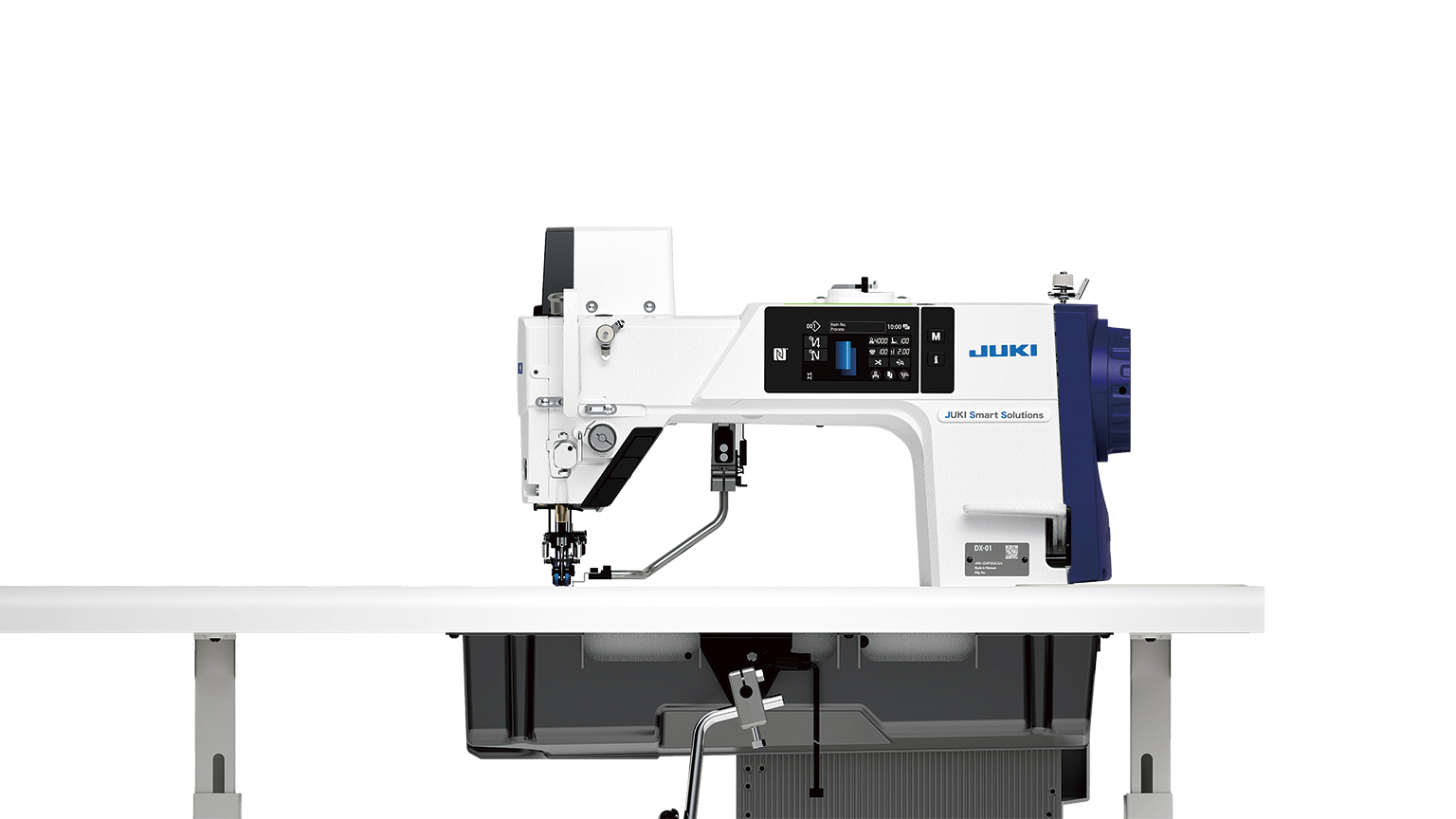

DX-01
1-Needle Lockstitch Sewing System with Electronic Belt Feed
The DX-01 has smooth feed adjustment and trial stitching with no unraveling. Significantly reduced setup times.
Comes with the knee presser lifting lever as standard. Familiar operation with new convenience.
Comes with the knee presser lifting lever as standard. Familiar operation with new convenience.
The World’s First! 6-belt feed-assist mechanism
Contact/Inquiry
See Specification
Sewing speed
4000
sti/min
Stitch length
9
mm
Hook
Dry
Number of standard patterns
99 + 20
patterns
Product overview

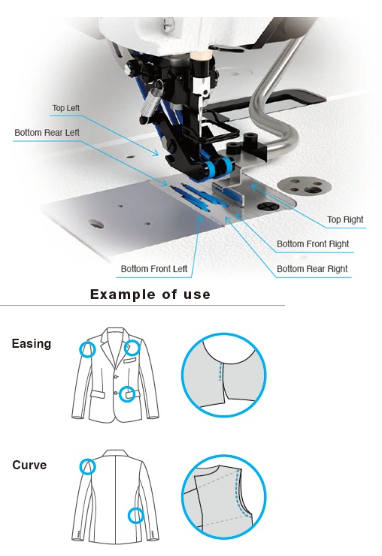

Curved processes like easing are completed efficiently and beautifully.
JUKI developed the 6-belt feed-assist mechanism as a unique “fabric handling” assist technology to streamline work and boost productivity. Automatic calculation and precise control of the optimal feed with six belts arranged above and below ensure the easy handling of difficult processes. The operation is achieved fast and simply by guiding the fabric by hand.
JUKI developed the 6-belt feed-assist mechanism as a unique “fabric handling” assist technology to streamline work and boost productivity. Automatic calculation and precise control of the optimal feed with six belts arranged above and below ensure the easy handling of difficult processes. The operation is achieved fast and simply by guiding the fabric by hand.

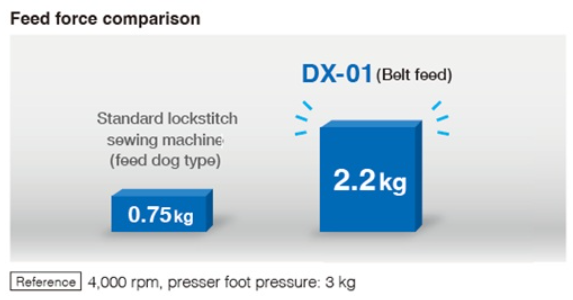

Stable feed force and consistent stitching even at high speeds
The upper and lower belts securely grip even hard-to-feed materials, ensuring strong feed force during high speeds and reducing defects such as skipped or jumping stitches.
The upper and lower belts securely grip even hard-to-feed materials, ensuring strong feed force during high speeds and reducing defects such as skipped or jumping stitches.

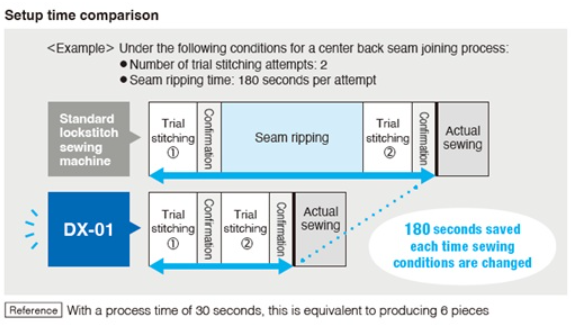

Reduced seam ripping during trial stitching
High-precision trial stitching with a minimal risk of fabric damage is achieved by operating only the feed mechanism while securely gripping the fabric between the upper and lower belts. This approach reduces the time spent on seam ripping, an operation that used to take up to three times longer than the actual sewing. J-DX F Technology (JUKI Digital transformation Feed Technology) : JUKI’s feed technology enables independent control of the feed mechanism and needle bar drive. This technology is the foundation of the 6-belt feed-assist mechanism and new value offered by the DX-01.
High-precision trial stitching with a minimal risk of fabric damage is achieved by operating only the feed mechanism while securely gripping the fabric between the upper and lower belts. This approach reduces the time spent on seam ripping, an operation that used to take up to three times longer than the actual sewing. J-DX F Technology (JUKI Digital transformation Feed Technology) : JUKI’s feed technology enables independent control of the feed mechanism and needle bar drive. This technology is the foundation of the 6-belt feed-assist mechanism and new value offered by the DX-01.
Versatile design : multiple functions in a single machine
With its interchangeable top feed belt and standard presser foot, the machine can also be used as a conventional bottom feed sewing machine. The wide-ranging processes handled ensure high rates of machine utilization.
With its interchangeable top feed belt and standard presser foot, the machine can also be used as a conventional bottom feed sewing machine. The wide-ranging processes handled ensure high rates of machine utilization.
Seamless continuous sewing with automatic step switching
Step switching supports both manual operation via the hand switch and automatic operation based on a preset number of stitches. Sewing continues without feed stoppage during step changes.
Step switching supports both manual operation via the hand switch and automatic operation based on a preset number of stitches. Sewing continues without feed stoppage during step changes.

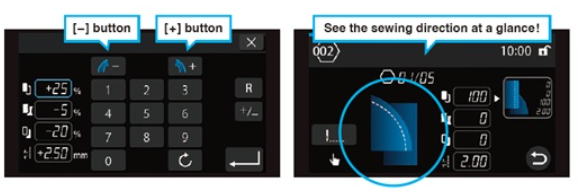

Ratio-based input for setting the optimal feed amount
Configure the optimal feed amount simply and automatically by entering the differential value between the upper/lower and left/right belts as a ratio (%) relative to the set stitch length. Fine-tuning the feed with the [–] and [+] buttons is as easy and intuitive as using a dial. The on-screen illustration changes in real time according to the input values.
Configure the optimal feed amount simply and automatically by entering the differential value between the upper/lower and left/right belts as a ratio (%) relative to the set stitch length. Fine-tuning the feed with the [–] and [+] buttons is as easy and intuitive as using a dial. The on-screen illustration changes in real time according to the input values.

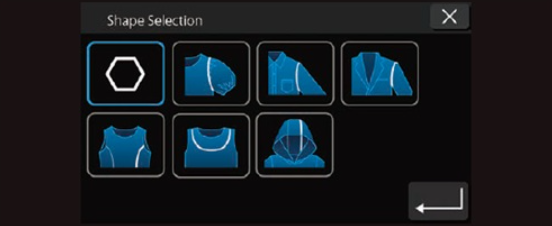

Customization of preregistered patterns
Common patterns like “sleeve attachment” and “hood” are preregistered, allowing you to customize the preset values according to your exact requirements.
Common patterns like “sleeve attachment” and “hood” are preregistered, allowing you to customize the preset values according to your exact requirements.

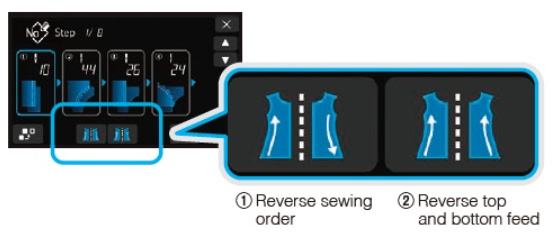

One-touch reversal of left /right sewing patterns
There’s no need for pattern re-entry when sewing the left side based on the right-side pattern: use function ①“Reverse sewing order” if the material position remains unchanged, or function ②“Reverse top and bottom feed” if the material is flipped upside down. (The differential amount must be readjusted.)
There’s no need for pattern re-entry when sewing the left side based on the right-side pattern: use function ①“Reverse sewing order” if the material position remains unchanged, or function ②“Reverse top and bottom feed” if the material is flipped upside down. (The differential amount must be readjusted.)
Original "JUKI SUSTAINABLE PRODUCTS” certification system is made to achieve carbon neutrality and the SDGs materialities that JUKI has set forth.
Apparel Sewing machines
DX-01
1-Needle Lockstitch Sewing System with Electronic Belt Feed
The DX-01 has smooth feed adjustment and trial stitching with no unraveling. Significantly reduced setup times.
Comes with the knee presser lifting lever as standard. Familiar operation with new convenience.
Comes with the knee presser lifting lever as standard. Familiar operation with new convenience.
The World’s First! 6-belt feed-assist mechanism
Sewing speed
4000
sti/min
Stitch length
9
mm
Hook
Dry
Number of standard patterns
99 + 20
patterns
Product overview
Curved processes like easing are completed efficiently and beautifully.
JUKI developed the 6-belt feed-assist mechanism as a unique “fabric handling” assist technology to streamline work and boost productivity. Automatic calculation and precise control of the optimal feed with six belts arranged above and below ensure the easy handling of difficult processes. The operation is achieved fast and simply by guiding the fabric by hand.
JUKI developed the 6-belt feed-assist mechanism as a unique “fabric handling” assist technology to streamline work and boost productivity. Automatic calculation and precise control of the optimal feed with six belts arranged above and below ensure the easy handling of difficult processes. The operation is achieved fast and simply by guiding the fabric by hand.
Stable feed force and consistent stitching even at high speeds
The upper and lower belts securely grip even hard-to-feed materials, ensuring strong feed force during high speeds and reducing defects such as skipped or jumping stitches.
The upper and lower belts securely grip even hard-to-feed materials, ensuring strong feed force during high speeds and reducing defects such as skipped or jumping stitches.
Reduced seam ripping during trial stitching
High-precision trial stitching with a minimal risk of fabric damage is achieved by operating only the feed mechanism while securely gripping the fabric between the upper and lower belts. This approach reduces the time spent on seam ripping, an operation that used to take up to three times longer than the actual sewing. J-DX F Technology (JUKI Digital transformation Feed Technology) : JUKI’s feed technology enables independent control of the feed mechanism and needle bar drive. This technology is the foundation of the 6-belt feed-assist mechanism and new value offered by the DX-01.
High-precision trial stitching with a minimal risk of fabric damage is achieved by operating only the feed mechanism while securely gripping the fabric between the upper and lower belts. This approach reduces the time spent on seam ripping, an operation that used to take up to three times longer than the actual sewing. J-DX F Technology (JUKI Digital transformation Feed Technology) : JUKI’s feed technology enables independent control of the feed mechanism and needle bar drive. This technology is the foundation of the 6-belt feed-assist mechanism and new value offered by the DX-01.
Versatile design : multiple functions in a single machine
With its interchangeable top feed belt and standard presser foot, the machine can also be used as a conventional bottom feed sewing machine. The wide-ranging processes handled ensure high rates of machine utilization.
With its interchangeable top feed belt and standard presser foot, the machine can also be used as a conventional bottom feed sewing machine. The wide-ranging processes handled ensure high rates of machine utilization.
Seamless continuous sewing with automatic step switching
Step switching supports both manual operation via the hand switch and automatic operation based on a preset number of stitches. Sewing continues without feed stoppage during step changes.
Step switching supports both manual operation via the hand switch and automatic operation based on a preset number of stitches. Sewing continues without feed stoppage during step changes.
Ratio-based input for setting the optimal feed amount
Configure the optimal feed amount simply and automatically by entering the differential value between the upper/lower and left/right belts as a ratio (%) relative to the set stitch length. Fine-tuning the feed with the [–] and [+] buttons is as easy and intuitive as using a dial. The on-screen illustration changes in real time according to the input values.
Configure the optimal feed amount simply and automatically by entering the differential value between the upper/lower and left/right belts as a ratio (%) relative to the set stitch length. Fine-tuning the feed with the [–] and [+] buttons is as easy and intuitive as using a dial. The on-screen illustration changes in real time according to the input values.
Customization of preregistered patterns
Common patterns like “sleeve attachment” and “hood” are preregistered, allowing you to customize the preset values according to your exact requirements.
Common patterns like “sleeve attachment” and “hood” are preregistered, allowing you to customize the preset values according to your exact requirements.
One-touch reversal of left /right sewing patterns
There’s no need for pattern re-entry when sewing the left side based on the right-side pattern: use function ①“Reverse sewing order” if the material position remains unchanged, or function ②“Reverse top and bottom feed” if the material is flipped upside down. (The differential amount must be readjusted.)
There’s no need for pattern re-entry when sewing the left side based on the right-side pattern: use function ①“Reverse sewing order” if the material position remains unchanged, or function ②“Reverse top and bottom feed” if the material is flipped upside down. (The differential amount must be readjusted.)
Original "JUKI SUSTAINABLE PRODUCTS” certification system is made to achieve carbon neutrality and the SDGs materialities that JUKI has set forth.
Specification
All Functions
Specification
Application
Medium-weight material
Max Sewing Speed
4000sti/min
Feed Type
Belt-feed
Lubrication
Fully-dry
Number of Needles
1-Needle
Max Stitch Length
9 mm
Type
Full Digital Type
Needle Bar Stroke
30.7 mm
Number of Independent Sewing Patterns
99 patterns (999 patterns when a CF memory card is used)
Number of Cycle Sewing Patterns
20 patterns
