JEUX AI-101-IRJ
Post-Bed, Seam Sealing Machine with Differential Speed, Memory Function, 3D Electronic Nozzle Positioning System and Tape Heating Temperature Controller.
Post-Bed, Seam Sealing Machine
Contact Agent
See Specification
02 Icons / 24x24 / ic24-download Created with Sketch.
Maximum Sealing Speed
18 m/min.
Maximum Temperature
800°C
Nozzle Unit
22 mm
Product overview
JEUX AI-101 with 3D electronic nozzle positioning system can additionally be equipped with Tape Heating Temperature Sensor, which ensures that the temperature of the tape is stable and eliminates the risk of tape overheating. Big arm (56 cm x 37 cm) and 4,5’’ color panel ensure comfort and better workability for the operator.
Key Features
• 3D Electronic Nozzle Positioning System
• Tape Heating Temperature Sensor
• Differential Speed Top/Bottom Roller
• Variable Speed Nozzle Positioning
• Color Touch Screen Interface
• Digital Tape Feeder (Tape Tension Control)
• Multi-Language Software

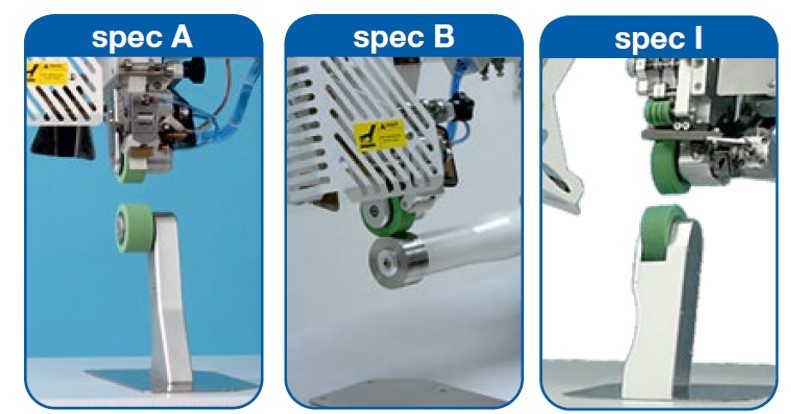

Possible Specification
A - Standard Offset Pedestal
B - Side Arm
I - Standard In Line Pedestal
See this machine in action
Download files (1)
Leaflet
- JEUX AI SERIES (pdf)
0.86 MB
02 Icons / 24x24 / ic24-download Created with Sketch.

Bonding machines

JEUX AI-101-IRJ

Post-Bed, Seam Sealing Machine with Differential Speed, Memory Function, 3D Electronic Nozzle Positioning System and Tape Heating Temperature Controller.

Post-Bed, Seam Sealing Machine

Maximum Sealing Speed
18 m/min.
Maximum Temperature
800°C
Nozzle Unit
22 mm
Product overview
JEUX AI-101 with 3D electronic nozzle positioning system can additionally be equipped with Tape Heating Temperature Sensor, which ensures that the temperature of the tape is stable and eliminates the risk of tape overheating. Big arm (56 cm x 37 cm) and 4,5’’ color panel ensure comfort and better workability for the operator.
Key Features
• 3D Electronic Nozzle Positioning System
• Tape Heating Temperature Sensor
• Differential Speed Top/Bottom Roller
• Variable Speed Nozzle Positioning
• Color Touch Screen Interface
• Digital Tape Feeder (Tape Tension Control)
• Multi-Language Software
Possible Specification
A - Standard Offset Pedestal
B - Side Arm
I - Standard In Line Pedestal
Specification
All Functions
Specification
Arm Type
Post-Bed
Nozzle Motion System
3D Electronic Positioning
Other
Tape Heating Temperature Controller, Memory Function, Differential Top/Bottom Speed, Color Touch Screen
Max. Temperature
800°C
Max. Speed
18 m/min.
