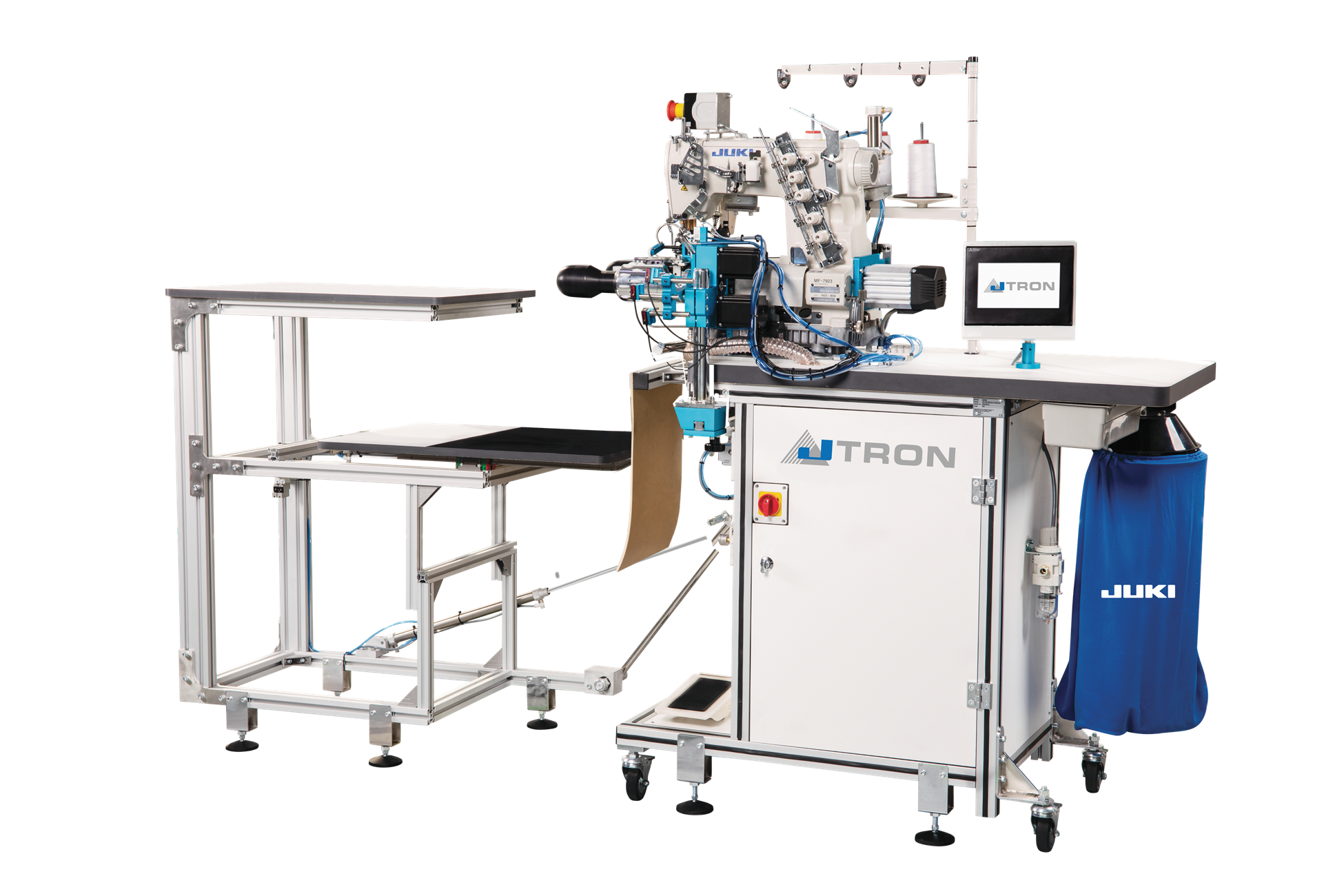

JTR-MF7523/PHA
2 or 3 Needle Jeans Pocket Hemming Automat (Chainstitch)
Machine is equipped with LCD touchscreen, photocell controlled thread trimming system and a special belt transport system. Hemming attachment provides 9 to 14 mm hemming marge. Three needle chainstitch sewing head with standard 6,4 mm gauge guarantees an excellent chainstitch quality. JTR-MF7523/PHA works well with fine or thick material.
Contact Agent
See Specification
02 Icons / 24x24 / ic24-download Created with Sketch.
Direct Drive Motor
Max. Sewing Speed
3500
sti./m.
LCD Touch Screen
Product overview
HIGHLIGHTS:
Excellent chainstitch quality
Operator friendly LCD touchscreen
Special hemming attachment provides 9 to 14 mm hemming marge
Step motor controlled special belt transport system adjustable
Photocell controlled thread trimming system
Three needle chainstitch sewing head with standard 6,4 mm gauge
Optionally, needle gauge can be chosen as: 4,8; 7,2 mm
Servo motor technology
Capacity: 15.000 - 18.000 pcs / 8 hour
Wide folder attachment between 18 - 24 mm (optional)
See this machine in action
Similar products (2)
JTR-DDL9000B/PPA
Differences
JTR-MF7923/BHA
Differences
Download files (1)
Leaflet
- JTR-MF7523/PHA (pdf)
0.64 MB
02 Icons / 24x24 / ic24-download Created with Sketch.
Related articles
You can read our articles where JTR-MF7523/PHA is mentioned:
NewsBlog
21/04/2022/
JTRON = J as JUKI & JAPAN, TRON as Tools & Equipment

High operability, productivity, reat functions and performance.

JTRON

JTR-MF7523/PHA

2 or 3 Needle Jeans Pocket Hemming Automat (Chainstitch)

Machine is equipped with LCD touchscreen, photocell controlled thread trimming system and a special belt transport system. Hemming attachment provides 9 to 14 mm hemming marge. Three needle chainstitch sewing head with standard 6,4 mm gauge guarantees an excellent chainstitch quality. JTR-MF7523/PHA works well with fine or thick material.

Direct Drive Motor
Max. Sewing Speed
3500
sti./m.
LCD Touch Screen
Product overview
HIGHLIGHTS:
Excellent chainstitch quality
Operator friendly LCD touchscreen
Special hemming attachment provides 9 to 14 mm hemming marge
Step motor controlled special belt transport system adjustable
Photocell controlled thread trimming system
Three needle chainstitch sewing head with standard 6,4 mm gauge
Optionally, needle gauge can be chosen as: 4,8; 7,2 mm
Servo motor technology
Capacity: 15.000 - 18.000 pcs / 8 hour
Wide folder attachment between 18 - 24 mm (optional)
Specification
All Functions
Specification
Application
Jeans and heavy-weight materials
Max Sewing Speed
3500sti/min
Max Stitch Length
4,5 mm
Needle
UY128GAS (#11), #14
Standard Accessories
