LBH-1790S
Computer-controlled, High-speed, Buttonholing Machine
The LBH-1790S is the newest Juki button holing machine and latest addition to the Juki Simply Smart Series line up. This model allows for the unrivaled quality one comes to expect with Juki but containing economical features. With a simple panel interface and powerful built-in motor it is one of the most reliable button holing machines available on the market today.
Contact Agent
See Specification
Product overview
The JUKI Simply Smart Series sewing machine LBH-1790S has been designed to have simplified and narrowed down capabilities that are essentially required to produce JUKI's established seam quality. This sewing machine achieves higher productivity with its improved capabilities such as the maximum sewing speed of 4,200 sti/min, quick acceleration at the beginning of sewing and quick deceleration at the end of sewing, increased thread trimming speed and the auto-lifter performance. Thanks to JUKI's unique multiple-times knife dropping function, the knife replacement is nolonger required even when the buttonholing size is changed.
JUKI's established quality is achieved with simplified functions
Higher productivity
This sewing machine achieves higher productivity with its improved capabilities such as the maximum sewing speed of 4,200 sti/min, quick acceleration at the beginning of sewing and quick deceleration at the end of sewing, increased thread trimming speed and the auto-lifter performance.
Multiple-times knife dropping
Thanks to JUKI's unique multiple-times knife dropping function, the knife replacement is no longer required even when the buttonholing size is changed. In the case of small-lot production, frequent change in the sewing size and / or sewing of different cycle sewing patterns with different sewing sizes are required. In such a case, the number of times to drop the cloth trimming knife are automatically set according to the buttonholing size.
Easy changeover of sewing settings
Changeover between purl stitching and whip stitching and between single stitching and double stitching can be carried out with ease.
Basting stitch on elastic materials
The basting stitch is effective on elastic materials such as knits.
Basting stitch : Since the needle thread is tucked in without fail, it will never jut out of the buttonhole seams. Basting stitch can be sewn by nine rounds.
Basting stitch : Since the needle thread is tucked in without fail, it will never jut out of the buttonhole seams. Basting stitch can be sewn by nine rounds.

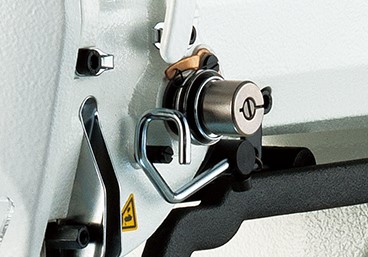

Main functions driven electrically
The electric-driven mechanism has been adopted for the work clamp foot lifter, needle / bobbin thread trimmers, work clamp foot pressure regulator, cloth trimming knife and thread tension controllers, thereby ensuring stable sewing that produces
beautiful seams with less operating noise.
beautiful seams with less operating noise.

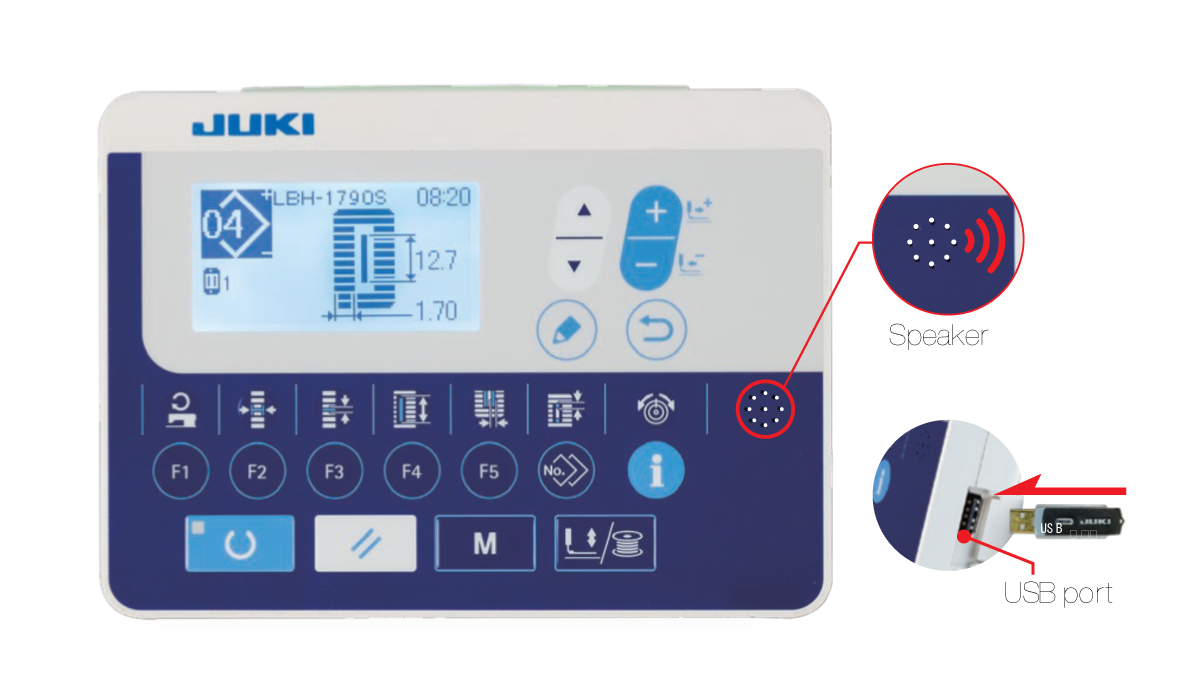

Standard operation panel (new model)
- Setting of functions such as the pattern number and the needle thread tension can be entered through the operation panel with ease. It is also possible to easily change the distance between buttonholes by means of the enlargement / reduction function.
- The operation panel is provided as standard with a USB port. This means that the sewing machine data management and software updating can be carried out with ease by means of the USB port.
Voice guidance for the operator
This sewing machine is provided as standard with the voice-guidance system with clock function.
The voice guidance can be used for the purpose of production support such as giving the operator information about the number of pieces produced, work progress management and the operation rate of sewing machine, though the initial setting is required.
As many as 31 different buttonholing shapes are provided as standard
As may as 99 different sewing patterns can be stored in memory.
The sewing patterns that are stored in memory can be selected as desired through the operation panel.
The sewing patterns that are stored in memory can be selected as desired through the operation panel.
Download files (1)
Apparel Sewing machines
LBH-1790S
Computer-controlled, High-speed, Buttonholing Machine
The LBH-1790S is the newest Juki button holing machine and latest addition to the Juki Simply Smart Series line up. This model allows for the unrivaled quality one comes to expect with Juki but containing economical features. With a simple panel interface and powerful built-in motor it is one of the most reliable button holing machines available on the market today.
Product overview
The JUKI Simply Smart Series sewing machine LBH-1790S has been designed to have simplified and narrowed down capabilities that are essentially required to produce JUKI's established seam quality. This sewing machine achieves higher productivity with its improved capabilities such as the maximum sewing speed of 4,200 sti/min, quick acceleration at the beginning of sewing and quick deceleration at the end of sewing, increased thread trimming speed and the auto-lifter performance. Thanks to JUKI's unique multiple-times knife dropping function, the knife replacement is nolonger required even when the buttonholing size is changed.
JUKI's established quality is achieved with simplified functions
Higher productivity
This sewing machine achieves higher productivity with its improved capabilities such as the maximum sewing speed of 4,200 sti/min, quick acceleration at the beginning of sewing and quick deceleration at the end of sewing, increased thread trimming speed and the auto-lifter performance.
Multiple-times knife dropping
Thanks to JUKI's unique multiple-times knife dropping function, the knife replacement is no longer required even when the buttonholing size is changed. In the case of small-lot production, frequent change in the sewing size and / or sewing of different cycle sewing patterns with different sewing sizes are required. In such a case, the number of times to drop the cloth trimming knife are automatically set according to the buttonholing size.
Easy changeover of sewing settings
Changeover between purl stitching and whip stitching and between single stitching and double stitching can be carried out with ease.
Basting stitch on elastic materials
The basting stitch is effective on elastic materials such as knits.
Basting stitch : Since the needle thread is tucked in without fail, it will never jut out of the buttonhole seams. Basting stitch can be sewn by nine rounds.
Basting stitch : Since the needle thread is tucked in without fail, it will never jut out of the buttonhole seams. Basting stitch can be sewn by nine rounds.
Main functions driven electrically
The electric-driven mechanism has been adopted for the work clamp foot lifter, needle / bobbin thread trimmers, work clamp foot pressure regulator, cloth trimming knife and thread tension controllers, thereby ensuring stable sewing that produces
beautiful seams with less operating noise.
beautiful seams with less operating noise.
Standard operation panel (new model)
- Setting of functions such as the pattern number and the needle thread tension can be entered through the operation panel with ease. It is also possible to easily change the distance between buttonholes by means of the enlargement / reduction function.
- The operation panel is provided as standard with a USB port. This means that the sewing machine data management and software updating can be carried out with ease by means of the USB port.
Voice guidance for the operator
This sewing machine is provided as standard with the voice-guidance system with clock function.
The voice guidance can be used for the purpose of production support such as giving the operator information about the number of pieces produced, work progress management and the operation rate of sewing machine, though the initial setting is required.
As many as 31 different buttonholing shapes are provided as standard
As may as 99 different sewing patterns can be stored in memory.
The sewing patterns that are stored in memory can be selected as desired through the operation panel.
The sewing patterns that are stored in memory can be selected as desired through the operation panel.
Specification
All Functions
Specification
Application
Standard
Max Sewing Speed
4200sti/min
Lubrication
Semi-dry
Needle
DPx5 (#11J) # 11J-14J
Size of Cloth Cutting Knife
6.4-31.8 mm (1/4"-1-1/4")
Buttonhole Length
Max. 41 mm
Lift of the Work Clamp
Max. 14 mm
Standard Accessories
