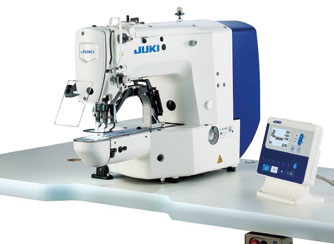

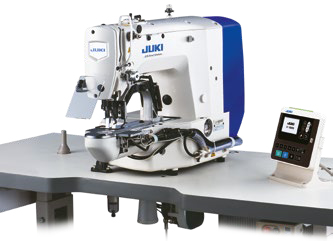

LK-1900C Series
Computer-controlled, High-speed, Bartacking Sewing System
The maximum sewing speed of 3,300 sti/mm and increased thread trimming speed help reduce the total cycle time to achieve increased production capacity. The LK-1900C is a computer-controlled high-speed bartacking machine with excellent seam quality. It is provided as standard with 100 different sewing patterns to support a wide range of stitching.
Inspire the Knowledge in Sewing Adjustment Epoch-making Sewing Systems in history
Contact Agent
See Specification
Sewing speed
Max. 3300
sti/min
Sewing area
30(L) x 40(W)
mm
Stitch length
0.1-10
mm
Needle bar stroke
41.2
mm
Lift of the work damp foot
Standard 14
mm
Hook
Standard
Number of stitches stored in memory
Max. 500,000
stitches
Number of standard patterns
100
patterns
Number of data to be input
999
patterns
Product overview
The LK-1900C has achieved the maximum sewing speed of 3,300 sti/min. The new mechanism contributes to increased rigidity of the machine driving section. In addition, greater speed is achieved through the reviewing of the Oiling System.
The "built-in LED marking light" facilitates positioning of bartacking to reduce unnecessary operation for placing the fabric. The irradiation width of the marking light is adjustable.
The control box integrated with the machine head, originally designed by JUKI, is adopted. Te number of standard patterns in memory. The new as 999 patterns (500,000 stitches) can be stored in memory. The new upright type operation panel is installed on the side face of the machine head to allow the operator to operate the machine without averting his/her eyes, during sewing, from the bartack being sewn. In addition, the table surface can be used widely. The operation panel can also be installed on the table as before.
The movable eye guard device protects eyes only during sewing. When the sewing machine is at rest, the eye guard automatically goes up to provide a clear view of the needle entry area. thereby allowing the operator to place the fabric smoothly.
The "built-in LED marking light" facilitates positioning of bartacking to reduce unnecessary operation for placing the fabric. The irradiation width of the marking light is adjustable.
The control box integrated with the machine head, originally designed by JUKI, is adopted. Te number of standard patterns in memory. The new as 999 patterns (500,000 stitches) can be stored in memory. The new upright type operation panel is installed on the side face of the machine head to allow the operator to operate the machine without averting his/her eyes, during sewing, from the bartack being sewn. In addition, the table surface can be used widely. The operation panel can also be installed on the table as before.
The movable eye guard device protects eyes only during sewing. When the sewing machine is at rest, the eye guard automatically goes up to provide a clear view of the needle entry area. thereby allowing the operator to place the fabric smoothly.
