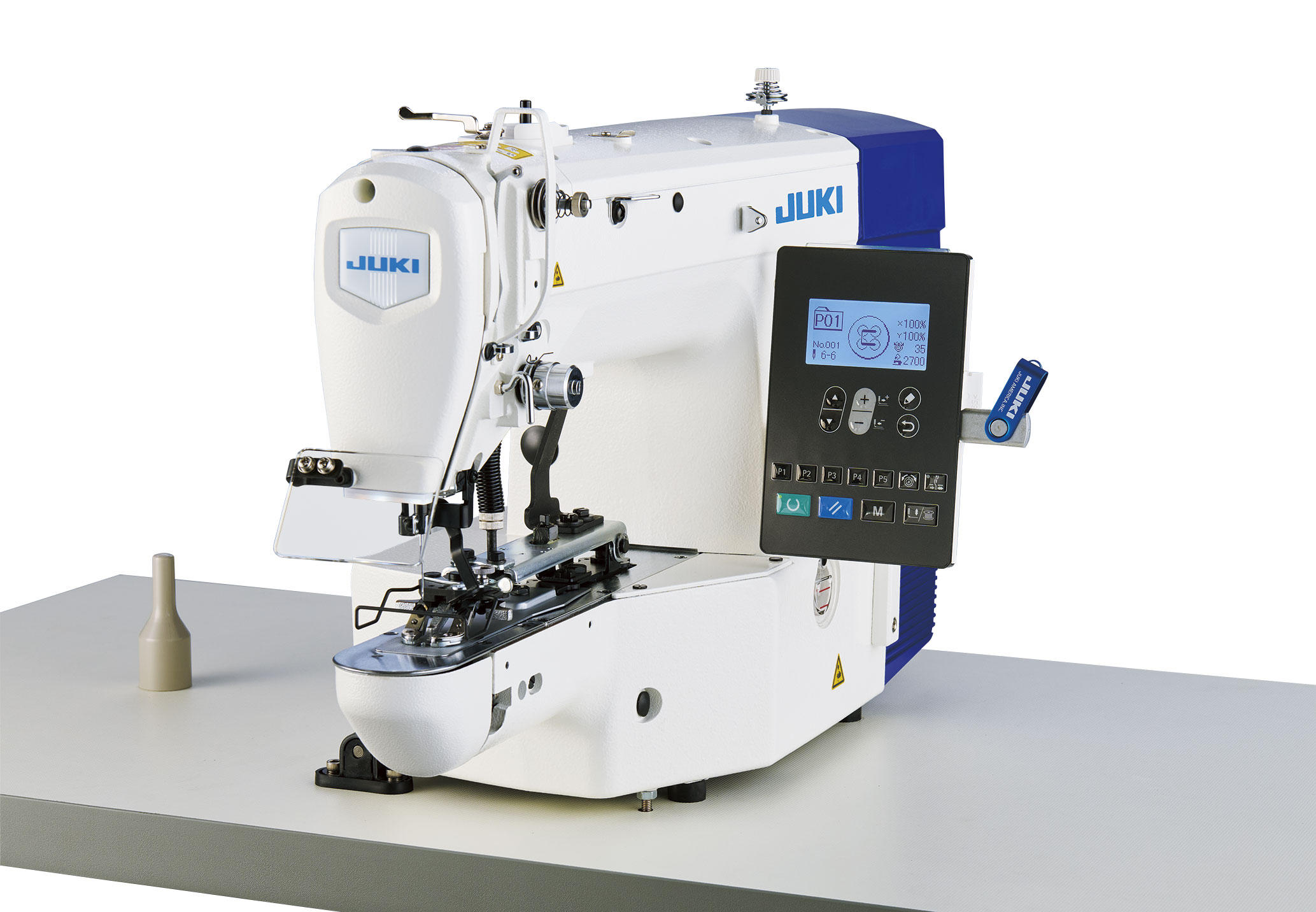

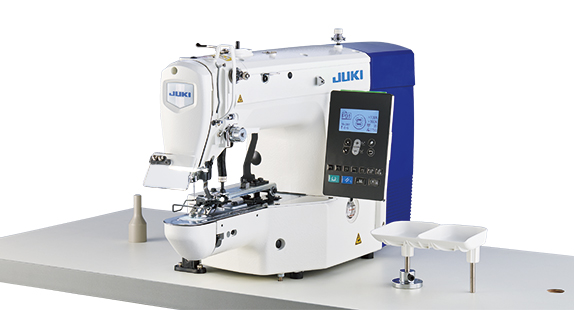

LK-1903CB
Computer-controlled, High-speed, Lockstitch, Button Sewing System (Bird's nest preventing / Shorter-thread remaining functions)
Users who are conscious about the finished quality of products manually nip, with scissors, the thread remaining on the material after thread trimming at the end of sewing.
Now, the button sewing machine with the bird's nest preventing/shorter thread remaining fucntions saves such users the trouble of nipping the thread, thereby preventing the sewing product from being damaged by manual thread-nipping with scissors.
Now, the button sewing machine with the bird's nest preventing/shorter thread remaining fucntions saves such users the trouble of nipping the thread, thereby preventing the sewing product from being damaged by manual thread-nipping with scissors.
Bird's nest preventing / Shorter-thread remaining functions
Contact Agent
See Specification
Sewing speed
Max. 2700
sti/min
Stitch length
0.1-10
Needle bar stroke
45.7
mm
Lift of the work clamp foot
Max. 10
mm
Hook
Standard
Number of stitches stored in memory
Max. 500,000
stitches
Number of standard patterns
34
patterns
Number of data to be input
999
patterns
Product overview
The thread is retained at the beggining of sewing and any excess thread is trimmed during sewing. As a result, the length of thread sewn in the seam is shortened, thereby achieving high-quality sewing performance while preventing thread from tangling on the wrong side of the material.
The newly-developed shorter-thread remaining mechanism trims the thread shorter after the reqular thread trimming operation. Additionally, thread waste produced by thead trimming is withdrawn by suction. Thanks to this mechainsm, the trouble of manual thread nipping is avoided.
Similar products (4)
Download files (1)
Apparel Sewing machines
LK-1903CB
Computer-controlled, High-speed, Lockstitch, Button Sewing System (Bird's nest preventing / Shorter-thread remaining functions)
Users who are conscious about the finished quality of products manually nip, with scissors, the thread remaining on the material after thread trimming at the end of sewing.
Now, the button sewing machine with the bird's nest preventing/shorter thread remaining fucntions saves such users the trouble of nipping the thread, thereby preventing the sewing product from being damaged by manual thread-nipping with scissors.
Now, the button sewing machine with the bird's nest preventing/shorter thread remaining fucntions saves such users the trouble of nipping the thread, thereby preventing the sewing product from being damaged by manual thread-nipping with scissors.
Bird's nest preventing / Shorter-thread remaining functions
Sewing speed
Max. 2700
sti/min
Stitch length
0.1-10
Needle bar stroke
45.7
mm
Lift of the work clamp foot
Max. 10
mm
Hook
Standard
Number of stitches stored in memory
Max. 500,000
stitches
Number of standard patterns
34
patterns
Number of data to be input
999
patterns
Product overview
The thread is retained at the beggining of sewing and any excess thread is trimmed during sewing. As a result, the length of thread sewn in the seam is shortened, thereby achieving high-quality sewing performance while preventing thread from tangling on the wrong side of the material.
The newly-developed shorter-thread remaining mechanism trims the thread shorter after the reqular thread trimming operation. Additionally, thread waste produced by thead trimming is withdrawn by suction. Thanks to this mechainsm, the trouble of manual thread nipping is avoided.
