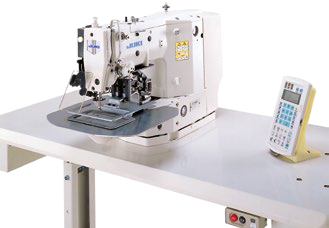

LK-1920 (with intermediate)Series
Computer controlled, High-speed Shape-tracking
The machine is fully equipped with state-of-the-art features such as a higher presser foot lift, a double capacity shuttle hook and a direct-control machine head that ensures quick response and accurate stop position.
Evveerry pry proodduct in the LK lineuct in the LK lineup is prup is proovvideided wd with higith high-h-spspeeeed sewd sewing capabiliting capability and ady and advancvanceed fed featuratureses
Contact Agent
See Series Specification (2)
EXCELLENT OPERABILITY
Sewing speed
2.500
sti/min
Product overview
The machine runs at a sewing speed of 2,500sti/min –––– Faster than any other shape-tacking machine anywhere in the world. In addition, the machine is fully equipped with state-of-the-art features such as a higher presser foot lift, a double-capacity shuttle hook, and a direct-control machine head that ensures quick response and an accurate stop position. The top model in the LK series, the LK-1930 is JUKI’s first shape-tacking machine to incorporate a main unit input function equivalent to that equipped in our automatic sewing machines. These rich features support the machine’s high-speed sewing performance and increased productivity. With its large sewing area that matches a wider range of use, its hand pulley, and its highly operable and easy-to-understand operation panel, the machine delivers to the user dramatically improved operability.
The LK-1910 Series shape tacking lineup is on the cutting edge –––– a pioneer in a new era of shape tacking.
The LK-1910 Series shape tacking lineup is on the cutting edge –––– a pioneer in a new era of shape tacking.
EXCELLENT OPERABILITY

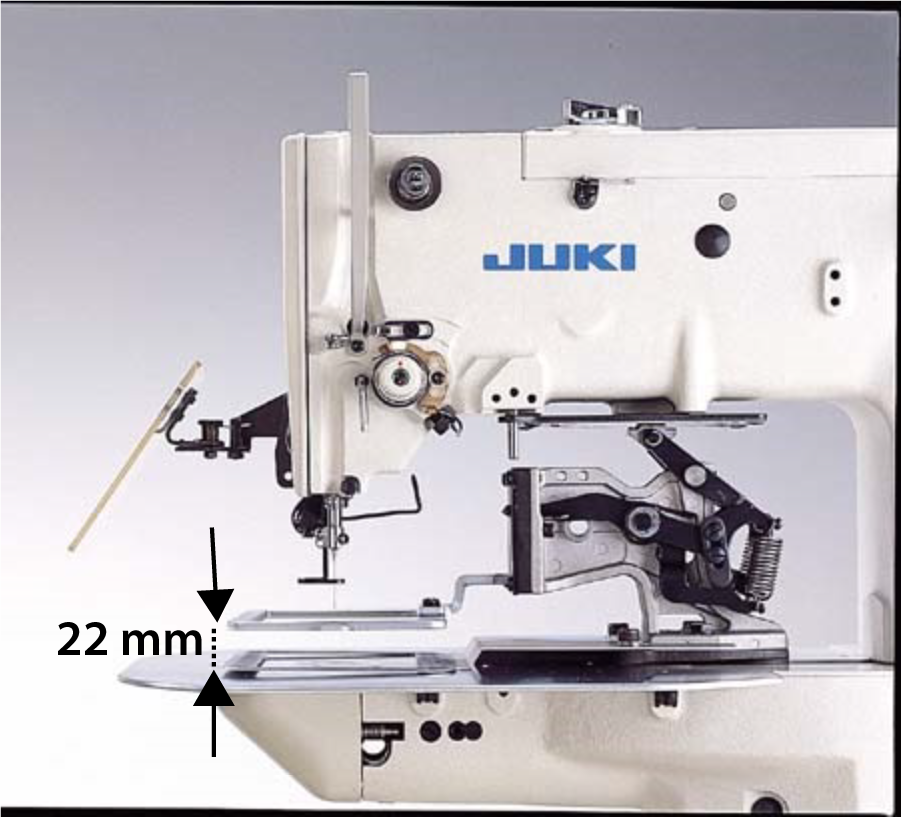

Higher lift of the presser foot
With an increased maximum lift of the feeding frame (22mm for the magnet driven feeding frame and 25 mm for the pneumatic-driven feeding frame), the machine ensures easy placement of heavy-weight materials.

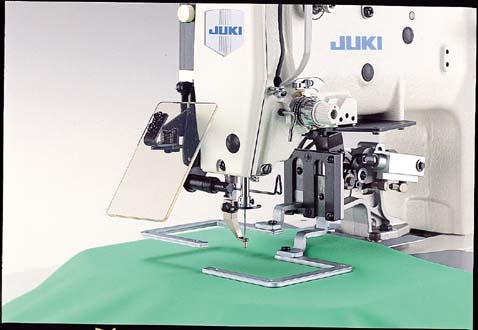

The feeding frame type can be selected to match the use of the machine in your work.
Two different feeding frame types are pepared: the monolithic type (maget-driven) and the separately driven type (pnematic-driven). Select the type which best suits your work and the machine application. With the onolithic type you can loft/lower the feeding frame using a manual pedal by controling the pedal pressure.
The machine head is designed for improved operability.
- The hand pulley is located at the machine arm unit to allow the operator to visually check the needle entry and needle-to-hook timing with ease.
- The machine is provided with a needle bar reverse rotating function. This permits the machine to stop with the needle rested at the highest dead point to allow a heavy-weight material to be placed on the machine easily.

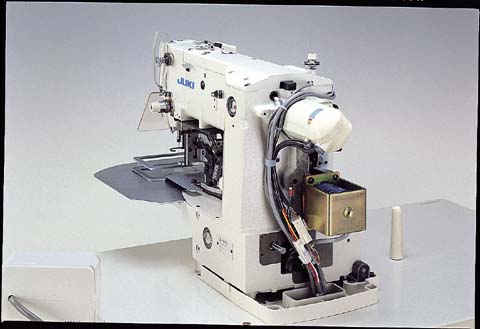

With its direct-drive machine head (with no belt) directly joined to a compact AC servomotor, the machine provides improved resposiveness and upgraded stop accuracy. Vibration and noise are reduced even during high-speed operation, thereby achieving a comfortable working environment.
IMPROVED RESPONSIVENESS AND OPERABILITY

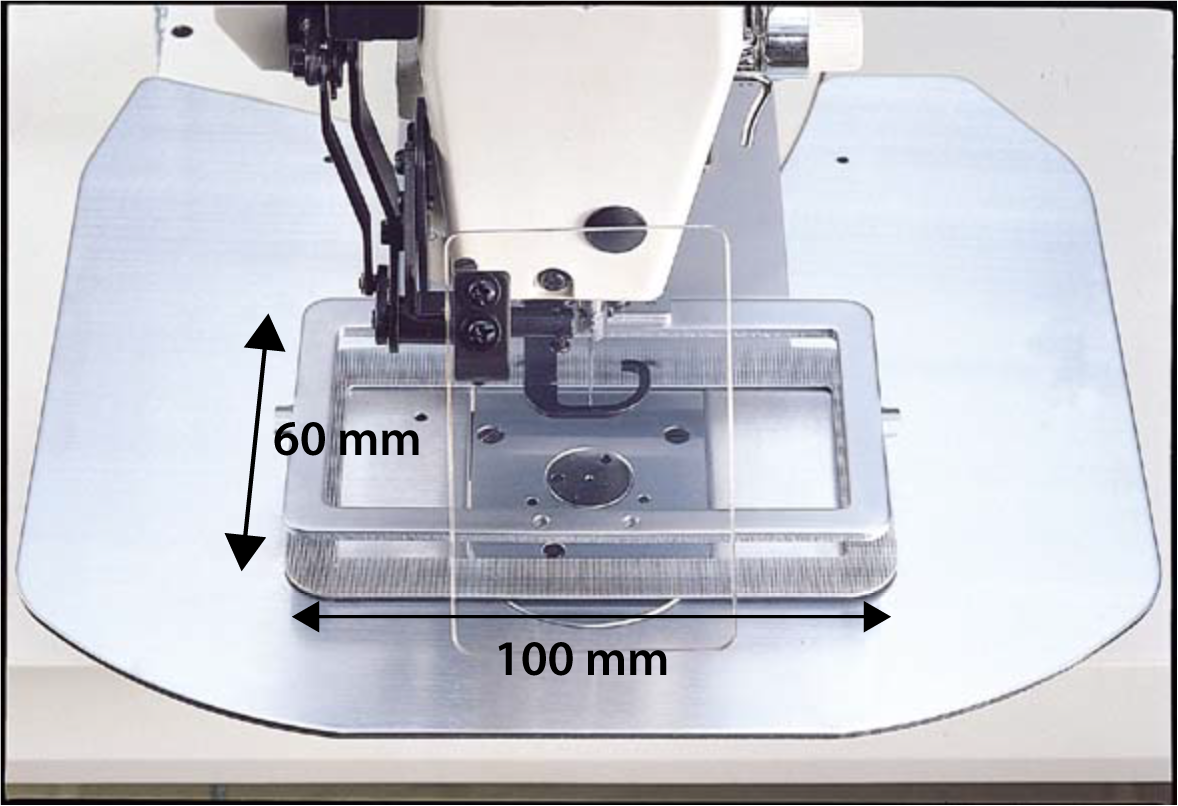

Sewing area that matches a wider range of applications
The machine has a wide sewing area: 60 mm (length) by 100 mm (width). With this large sewing area, the machine easily adapts to the sewing of curtain pleats, the finishing of waistband ends for jeans, label attachment, and many other sewing works.

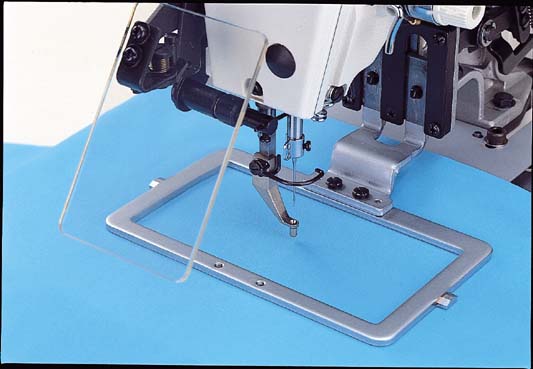

Intermediate presser that securely clamps the material
The machine is provided as standard with an intermediate presser to prevent the material from flopping, thereby promising beautiful seams. Since height and stroke of the intermediate presser can be adjusted, quick responsiveness to changes in material thickness or the number of layers of materials is ensured.
Download files (1)
Apparel Sewing machines
LK-1920 (with intermediate)Series
Computer controlled, High-speed Shape-tracking
The machine is fully equipped with state-of-the-art features such as a higher presser foot lift, a double capacity shuttle hook and a direct-control machine head that ensures quick response and accurate stop position.
Evveerry pry proodduct in the LK lineuct in the LK lineup is prup is proovvideided wd with higith high-h-spspeeeed sewd sewing capabiliting capability and ady and advancvanceed fed featuratureses
EXCELLENT OPERABILITY
Sewing speed
2.500
sti/min
Product overview
The machine runs at a sewing speed of 2,500sti/min –––– Faster than any other shape-tacking machine anywhere in the world. In addition, the machine is fully equipped with state-of-the-art features such as a higher presser foot lift, a double-capacity shuttle hook, and a direct-control machine head that ensures quick response and an accurate stop position. The top model in the LK series, the LK-1930 is JUKI’s first shape-tacking machine to incorporate a main unit input function equivalent to that equipped in our automatic sewing machines. These rich features support the machine’s high-speed sewing performance and increased productivity. With its large sewing area that matches a wider range of use, its hand pulley, and its highly operable and easy-to-understand operation panel, the machine delivers to the user dramatically improved operability.
The LK-1910 Series shape tacking lineup is on the cutting edge –––– a pioneer in a new era of shape tacking.
The LK-1910 Series shape tacking lineup is on the cutting edge –––– a pioneer in a new era of shape tacking.
EXCELLENT OPERABILITY
Higher lift of the presser foot
With an increased maximum lift of the feeding frame (22mm for the magnet driven feeding frame and 25 mm for the pneumatic-driven feeding frame), the machine ensures easy placement of heavy-weight materials.
The feeding frame type can be selected to match the use of the machine in your work.
Two different feeding frame types are pepared: the monolithic type (maget-driven) and the separately driven type (pnematic-driven). Select the type which best suits your work and the machine application. With the onolithic type you can loft/lower the feeding frame using a manual pedal by controling the pedal pressure.
The machine head is designed for improved operability.
- The hand pulley is located at the machine arm unit to allow the operator to visually check the needle entry and needle-to-hook timing with ease.
- The machine is provided with a needle bar reverse rotating function. This permits the machine to stop with the needle rested at the highest dead point to allow a heavy-weight material to be placed on the machine easily.
With its direct-drive machine head (with no belt) directly joined to a compact AC servomotor, the machine provides improved resposiveness and upgraded stop accuracy. Vibration and noise are reduced even during high-speed operation, thereby achieving a comfortable working environment.
IMPROVED RESPONSIVENESS AND OPERABILITY
Sewing area that matches a wider range of applications
The machine has a wide sewing area: 60 mm (length) by 100 mm (width). With this large sewing area, the machine easily adapts to the sewing of curtain pleats, the finishing of waistband ends for jeans, label attachment, and many other sewing works.
Intermediate presser that securely clamps the material
The machine is provided as standard with an intermediate presser to prevent the material from flopping, thereby promising beautiful seams. Since height and stroke of the intermediate presser can be adjusted, quick responsiveness to changes in material thickness or the number of layers of materials is ensured.
