LS-2328V-7
Contact Agent
See Specification
LS-2328V-7
Semi-Dry Direct-drive, Cylinder-bed, 1-needle, Unisonfeed, Lockstitch Sewing System with Vertical-axis Hook
This model is the world's first digital cylinder bed machine. With the operational benefits of easy parameter adjustments, NFC communication and sewing profiles this is the industries leading solution for its segment. The wide cylinder bed allow for improved workability.
Digitally Smart Solution
Contact Agent
See Specification
Stitch Length
9
mm
Sewing Speed
3.500
sti./min.
Presser Foot Lift
20
mm
Product overview
The LS-2328V-7 comes as standard with a 6 position programable switch. 3 buttons can be programed how you need allowing for the best settings needed for your production. The final buttons are programed to assist with easy operation in mind. Automatic reverse feeding can be triggered by the 4th button. Needle entry alignment is on the 5th position, vital inleather sewing. The final button activates the thread clamp again. The easy access to these functions during sewing allows for increased productivity and higher quality seams vital in leather or heavy fabric sewing.

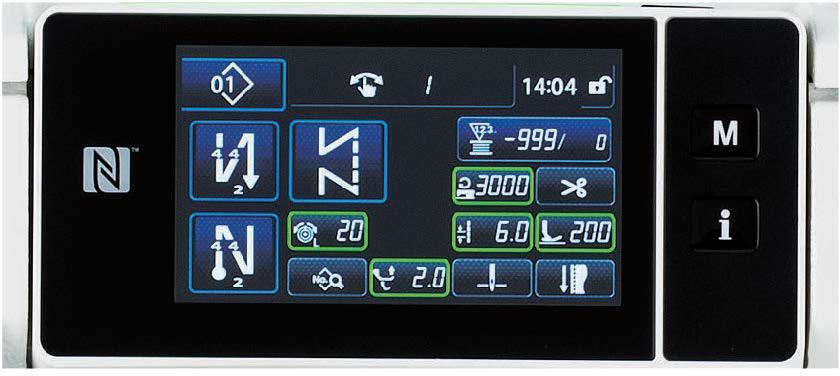

Sewing conditions such as thread tension, stitch length, presser foot pressure, alternate vertical movement amount, etc. are displayed on one screen and can be set easily.

Non-Apparel Sewing machines

LS-2328V-7

Semi-Dry Direct-drive, Cylinder-bed, 1-needle, Unisonfeed, Lockstitch Sewing System with Vertical-axis Hook

This model is the world's first digital cylinder bed machine. With the operational benefits of easy parameter adjustments, NFC communication and sewing profiles this is the industries leading solution for its segment. The wide cylinder bed allow for improved workability.

Digitally Smart Solution

Stitch Length
9
mm
Sewing Speed
3.500
sti./min.
Presser Foot Lift
20
mm
Product overview
The LS-2328V-7 comes as standard with a 6 position programable switch. 3 buttons can be programed how you need allowing for the best settings needed for your production. The final buttons are programed to assist with easy operation in mind. Automatic reverse feeding can be triggered by the 4th button. Needle entry alignment is on the 5th position, vital inleather sewing. The final button activates the thread clamp again. The easy access to these functions during sewing allows for increased productivity and higher quality seams vital in leather or heavy fabric sewing.
Sewing conditions such as thread tension, stitch length, presser foot pressure, alternate vertical movement amount, etc. are displayed on one screen and can be set easily.
Specification
All Functions
Specification
Application
Heavy-weight material
Max. Sewing Speed
2500 sti./min.
Feed Type
Unison-feed
Hook Type
Vertical-axis hook (large)
Lubrication
Semi-dry
Number of Needles
1-Needle
Other
Active Tension, Digital Sewing Adjustment
Max. Stitch Length
9 mm
Presser Foot Lift
20 mm
Standard Accessories
