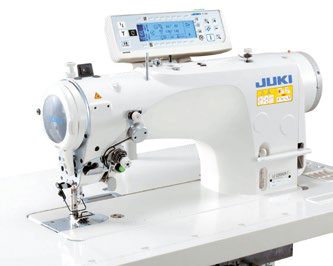

LZ-2290A-SS-7
Computer-controlled, Direct-drive, High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine
The machine is built around the newly developed LZ-2290A-7 machine head. In addition to the conventional types of stitching, the machine is able to perform T-shape stitching and zigzag pattern stitching to broaden its range of applications.
Contact Agent
See Series Specification (1)
Product overview
The machine comes provided as standard with twenty different zigzag stitching, T-stitch and covering stitch patterns grouped into fourteen different types. The feed mechanism is controlled with a stepping motor, enabling continuous sewing at a high speed. stitching, standard zigzag stitching, 2-step zigzag stitching, 3-step zigzag stitching, scallop stitching and blind stitching. As a result, the system is available for a far wider range of applications.
It comes in two different models, one with standard specifications and the other with an anti-material slip capability. For both models, there are two subclass models, i.e., the "minute-quantity lubrication type" and the "dry-head type", which eliminates oil stains on sewing products. You may select the best-suited model from the diversified subclasses according to your applications.
The machine is also provided with a newly-developed operation panel, the IT-100. With this operation panel, you can easily establish settings for stitch shapes and stitches, as well as conduct setup changing, thereby achieving further increased availability.
It comes in two different models, one with standard specifications and the other with an anti-material slip capability. For both models, there are two subclass models, i.e., the "minute-quantity lubrication type" and the "dry-head type", which eliminates oil stains on sewing products. You may select the best-suited model from the diversified subclasses according to your applications.
The machine is also provided with a newly-developed operation panel, the IT-100. With this operation panel, you can easily establish settings for stitch shapes and stitches, as well as conduct setup changing, thereby achieving further increased availability.
The machine is provided with many different stitching patterns
- The machine is provided as standard with fourteen different basic zigzag stitching patterns grouped into eight different types. You can choose the zigzag stitching pattern you want directly on the operation panel (IT-100) of the machine body. The zigzag width, needle throw position and number of blind stitches can also be easily adjusted on the operation panel.
- A single unit is extremely versatile and can perform straight stitching, standard zigzag stitching, 2-step zigzag stitching, 3-step zigzag stitching, scallop stitching, and blind stitching. As a result, the system is available for a far wider range of applications.

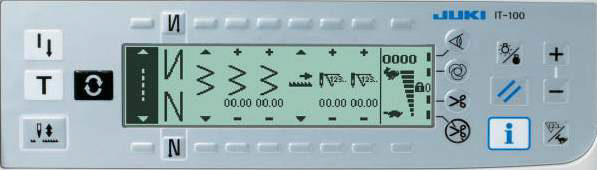

Advanced operation panel IT-100
- A liquid crystal display has been adopted. It displays stitch shapes, zigzag width and standard lines with pictographs and settings all together on one screen to improve operability of the panel.
- The machine has added capabilities that make the most out of the computer-controlled sewing machine functions, such as program stitching (constant-dimension sewing), cycle sewing and continuous sewing. With these capabilities, the machine is able to respond to sewing in various processes.
- Custom pattern data can be stored using the same USB memory.This enables the sharing of custom patterns, not only in one plant, but also among two or more sewing plants, by exchanging data via e-mail systems.
Newly developed larger-size machine head with a long arm
- Wider space under the arm
JUKI has developed a new high-long arm machine head one size larger than the head for the conventional lockstitch machine. With its wider area under the arm, the machine permits easy handling of the sewing material for improved operability. The shape of the jaw gives the operator a clear view of the area around the needle. - Reduced noise and vibration
The machine comes with a more rigid and well-balanced machine head frame. This, coupled with the direct-drive method, dramatically reduces the noise and vibration of the machine and helps reduce operator fatigue.
Thread trimming mechanism notable for its simple structure and extremely reliable performance
- The knife-sliding method employed by the thread trimmer guarantees that the thread is cut regardless of the needle throw position.
- The knife unit is installed under the bed slide to offer easier maintenance.
