LZ-2290C
Semi-Dry head, Digital Zigzag Stitching Sewing System
Digital sewing system proposes the production process added with a computerized new value to all the people who engage in production.
Digital Zig-Zag Machine
Contact Agent
See Series Specification (2)
Sewing speed
5.000
sti/min
Rotary Type Active Tension
Wireless Communication
Product overview
The LZ-2290C series has two specifications of full digital and digital. In the full digital specification, Vertical, Horizontal feeding mechanism are motorized to allow simplified parameter adjustments via the control panel. Feed timing which traditionally requires long duration of adjustment can now be simply changed via the control panel. System also allows changes from (Soft Standard Hard) settings based on the process suitability. Also, fabric slip prevention feeding locus can be changed to further increase range of workable material.
Horizontal-/vertical-drive digital feed mechanism
The horizontal-/vertical-feed mechanism is controlled by motor.
The sewing machine can be adjusted with ease by operating the operation panel.
The sewing machine provides the best-suited sewing performance according to the process and material.
Change in feed timing has been a time-consuming operation. For the
LZ-2290C, however, feed timing can be changed with ease by
operating the operation panel. It is therefore possible to set the feed
timing so as to produce the seam quality (soft⇔standard⇔hard) that
is suited to the process.
In addition, the feed locus can be changed to that for preventing
material slippage. With these improvement, the sewing machine
The sewing machine can be adjusted with ease by operating the operation panel.
The sewing machine provides the best-suited sewing performance according to the process and material.
Change in feed timing has been a time-consuming operation. For the
LZ-2290C, however, feed timing can be changed with ease by
operating the operation panel. It is therefore possible to set the feed
timing so as to produce the seam quality (soft⇔standard⇔hard) that
is suited to the process.
In addition, the feed locus can be changed to that for preventing
material slippage. With these improvement, the sewing machine
Rotary-type active tension has been adopted

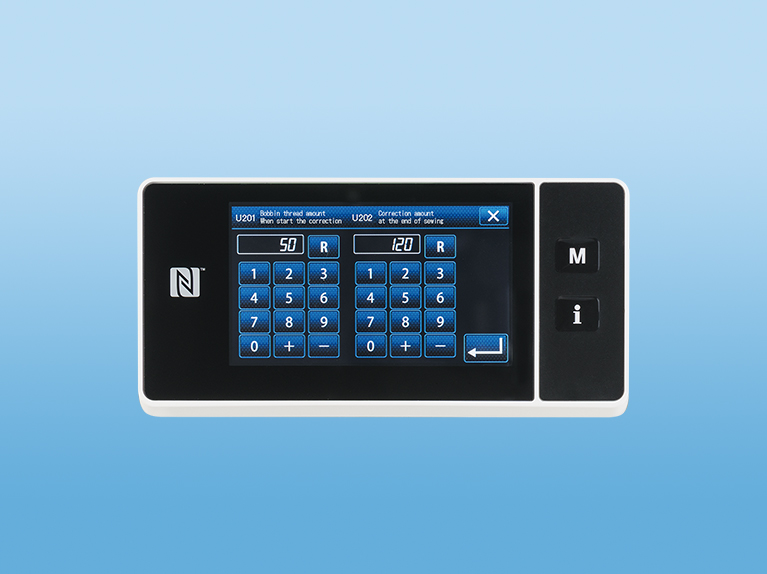

The LZ-2290C is the world's first sewing machine that comes with the rotary-type active tension. Conventionally, it has been difficult to adjust the thread tension when the remaining amount of bobbin thread has reduced. This sewing machine, however, is able to correct and stabilize the thread tension by means of the active tension.
In addition, the thread tension can be corrected according
to the sewing speed, thereby contributing to improved
seam quality.
In addition, the thread tension can be corrected according
to the sewing speed, thereby contributing to improved
seam quality.
Multi-layered portion detection device is provided
The LZ-2290C is provided with the multi-layered portion detection device. Sewing conditions on a flat portion and that on a multi-layered portion of material can be respectively set. As a result, conventional problems that are likely to occur when sewing a multi-layered portion of material such as stitch gathering and loose stitches can be prevented.
Sewing of diversified patterns is possible
The sewing machine is provided as standard with 11 types/20 patterns of basic stitch shapes. Sewing patterns such as zigzag stitching, T stitching and pattern sewing can be selected on the new operation panel of the main body, thereby substantially increasing the facility operation rate.
In addition, a sewing pattern can be created for the brassiere sewing process for sewing a brassiere while skipping its bone portions. This also helps increase productivity.
For men's garments, the machine is used in processes such as topstitching for welt pockets, sewing collar cloths and sewing labels. For ladies' garments, it can perform pattern stitching for the collars and front bodies of jackets and blouses. In addition, original patterns can be created using the custom pattern feature, enabling the machine to be utilized for a broader range of uses.
In addition, a sewing pattern can be created for the brassiere sewing process for sewing a brassiere while skipping its bone portions. This also helps increase productivity.
For men's garments, the machine is used in processes such as topstitching for welt pockets, sewing collar cloths and sewing labels. For ladies' garments, it can perform pattern stitching for the collars and front bodies of jackets and blouses. In addition, original patterns can be created using the custom pattern feature, enabling the machine to be utilized for a broader range of uses.
Download files (1)
Apparel Sewing machines
LZ-2290C
Semi-Dry head, Digital Zigzag Stitching Sewing System
Digital sewing system proposes the production process added with a computerized new value to all the people who engage in production.
Digital Zig-Zag Machine
Sewing speed
5.000
sti/min
Rotary Type Active Tension
Wireless Communication
Product overview
The LZ-2290C series has two specifications of full digital and digital. In the full digital specification, Vertical, Horizontal feeding mechanism are motorized to allow simplified parameter adjustments via the control panel. Feed timing which traditionally requires long duration of adjustment can now be simply changed via the control panel. System also allows changes from (Soft Standard Hard) settings based on the process suitability. Also, fabric slip prevention feeding locus can be changed to further increase range of workable material.
Horizontal-/vertical-drive digital feed mechanism
The horizontal-/vertical-feed mechanism is controlled by motor.
The sewing machine can be adjusted with ease by operating the operation panel.
The sewing machine provides the best-suited sewing performance according to the process and material.
Change in feed timing has been a time-consuming operation. For the
LZ-2290C, however, feed timing can be changed with ease by
operating the operation panel. It is therefore possible to set the feed
timing so as to produce the seam quality (soft⇔standard⇔hard) that
is suited to the process.
In addition, the feed locus can be changed to that for preventing
material slippage. With these improvement, the sewing machine
The sewing machine can be adjusted with ease by operating the operation panel.
The sewing machine provides the best-suited sewing performance according to the process and material.
Change in feed timing has been a time-consuming operation. For the
LZ-2290C, however, feed timing can be changed with ease by
operating the operation panel. It is therefore possible to set the feed
timing so as to produce the seam quality (soft⇔standard⇔hard) that
is suited to the process.
In addition, the feed locus can be changed to that for preventing
material slippage. With these improvement, the sewing machine
Rotary-type active tension has been adopted
The LZ-2290C is the world's first sewing machine that comes with the rotary-type active tension. Conventionally, it has been difficult to adjust the thread tension when the remaining amount of bobbin thread has reduced. This sewing machine, however, is able to correct and stabilize the thread tension by means of the active tension.
In addition, the thread tension can be corrected according
to the sewing speed, thereby contributing to improved
seam quality.
In addition, the thread tension can be corrected according
to the sewing speed, thereby contributing to improved
seam quality.
Multi-layered portion detection device is provided
The LZ-2290C is provided with the multi-layered portion detection device. Sewing conditions on a flat portion and that on a multi-layered portion of material can be respectively set. As a result, conventional problems that are likely to occur when sewing a multi-layered portion of material such as stitch gathering and loose stitches can be prevented.
Sewing of diversified patterns is possible
The sewing machine is provided as standard with 11 types/20 patterns of basic stitch shapes. Sewing patterns such as zigzag stitching, T stitching and pattern sewing can be selected on the new operation panel of the main body, thereby substantially increasing the facility operation rate.
In addition, a sewing pattern can be created for the brassiere sewing process for sewing a brassiere while skipping its bone portions. This also helps increase productivity.
For men's garments, the machine is used in processes such as topstitching for welt pockets, sewing collar cloths and sewing labels. For ladies' garments, it can perform pattern stitching for the collars and front bodies of jackets and blouses. In addition, original patterns can be created using the custom pattern feature, enabling the machine to be utilized for a broader range of uses.
In addition, a sewing pattern can be created for the brassiere sewing process for sewing a brassiere while skipping its bone portions. This also helps increase productivity.
For men's garments, the machine is used in processes such as topstitching for welt pockets, sewing collar cloths and sewing labels. For ladies' garments, it can perform pattern stitching for the collars and front bodies of jackets and blouses. In addition, original patterns can be created using the custom pattern feature, enabling the machine to be utilized for a broader range of uses.
Specification
All Functions
Specification
Standard Accessories
