MB-1800B (wiper unit)
Computer-controlled, Dry-head, High-speed, Single-thread, Chainstitch Button Sewing Machine
A new button sewing machine that supports many different button sewing specifications independently.
It comes with direct-drive electronic feed driven by a compact AC servomotor to guarantee excellent seam quality and dramatically improve flexibility and maintainability.
It comes with direct-drive electronic feed driven by a compact AC servomotor to guarantee excellent seam quality and dramatically improve flexibility and maintainability.
Contact Agent
See Series Specification (3)
Product overview

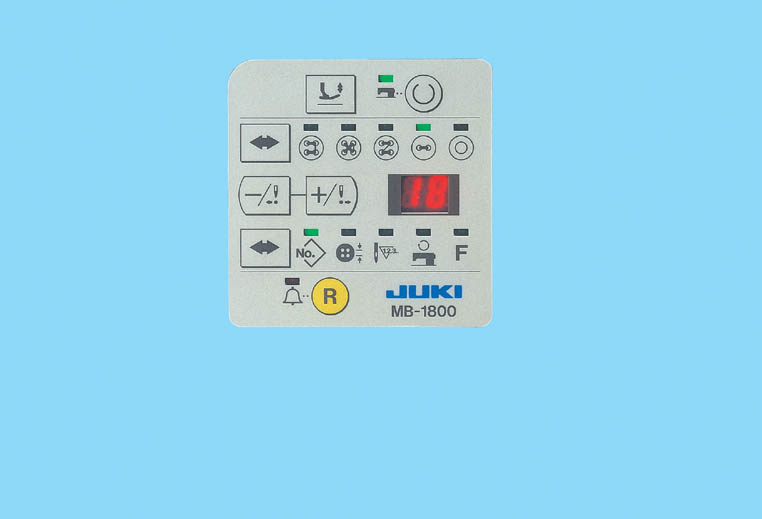

The machine is able to independently sew various stitching shapes such as U-shaped stitching, X-shaped stitching and Z-shaped stitching. The machine has 55 different stitching patterns as standard. In addition to the sewing shapes, the buttonhole intervals and number of stitches can also be changed on the operation panel.
Excellent seam quality and improved flexibility
The machine is able to independently sew various stitching shapes such as U-shaped stitching, X-shaped stitching and Z-shaped stitching
- The machine has 55 different stitching patterns as standard. In addition to the sewing shapes, the buttonhole intervals and number of stitches can also be changed on the operation panel. The machine completely supports many different button specifications to increase its range of applicability, reduce costs associated with changes in specifications, and save the operator from having to adapt the machine to different specifications.
- Custom patterns can be created on the PGM-20 and then used on the sewing machine.

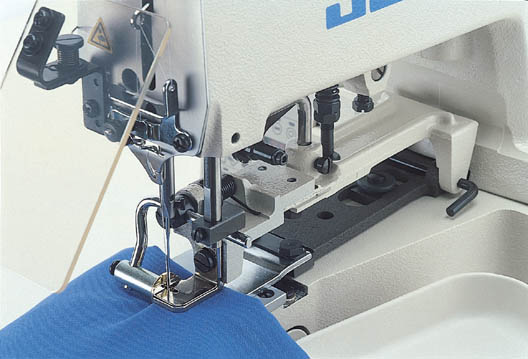

Shorter lengths of thread remain after thread trimming
The machine performs thread trimming at the optimal position by correcting the button position with respect to the needle entry of the last stitch. This shortens the thread remaining on the material after thread trimming to approx. 3.5 mm.
The dry-head eliminates oil stains
The machine head is a non-lubricating type. With this type, the operator never has to add oil, and staining of the sewing product with oil is an impossibility.

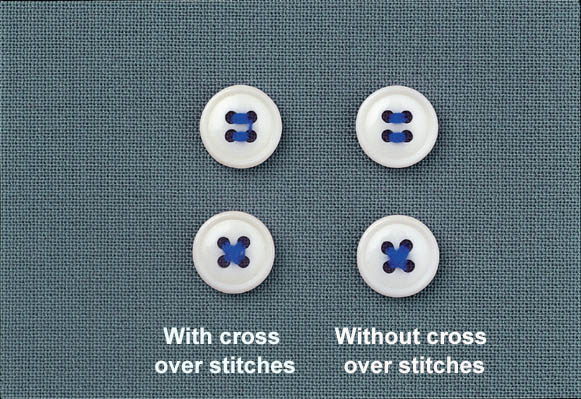

The machine sews buttons with beautifully finished seams
- The machine adopts a stitching pattern with the tying stitch only at the final stitch. This ideal stitching pattern optimizes single thread chainstitching to produce beautiful seams on the wrong side of the material, thereby guaranteeing excellent seam quality.
- Moreovers, since the machine uses significantly fewer mechanical parts, troubles caused by excessive play in the feed such as needle breakage and button breakage occur for less often.

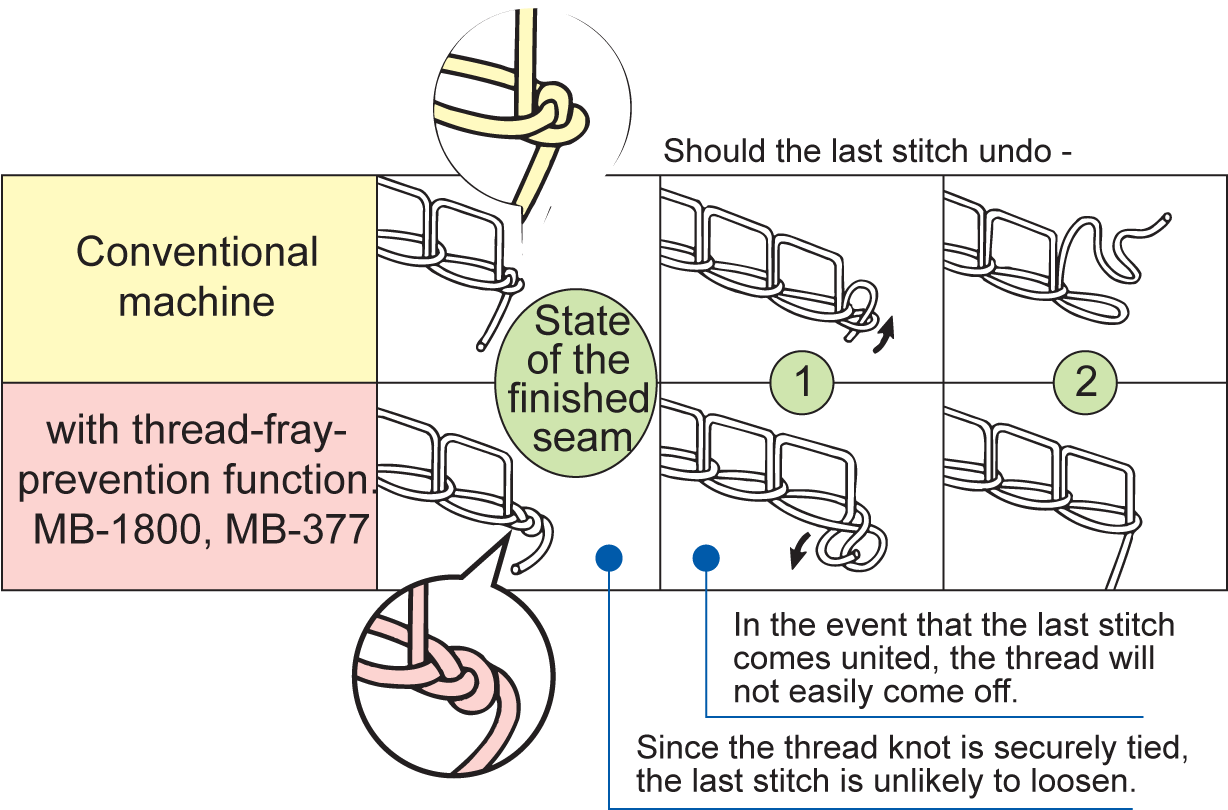

The machine is equipped as standard with thread-fray-prevention function

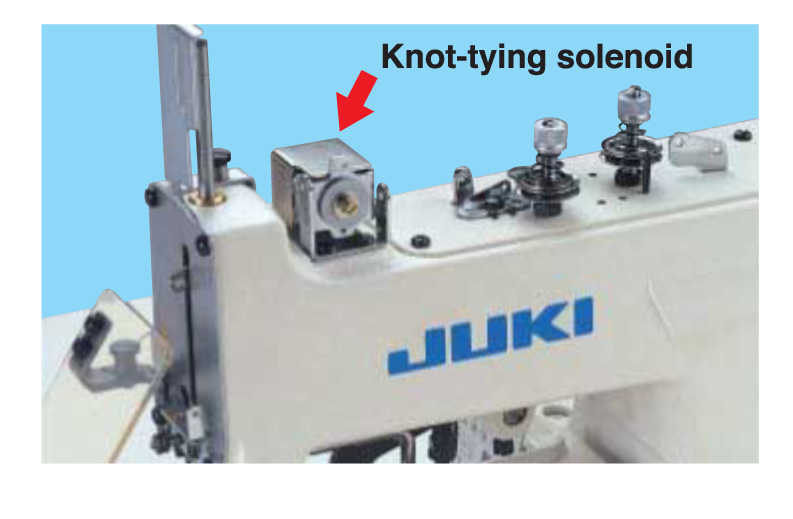

- The machine comes as standard with the solenoid-operated, thread-tension-changeover “thread-fray-prevention function.” Since the machine is designed to use a long needle (TQ×7), the “thread-fray-prevention function” can be used for sewing shank buttons.
- The “thread-fray-prevention mechanism” can be rendered ON or OFF as required by setting the solenoid drive ON or OFF.
The machine offers outstanding productivity
The machine runs at a maximum sewing speed of 1,800 rpm and comes with a direct-drive system supported by a compact AC servomotor that offers excellent stopping accuracy and responsiveness. Working in combination, these features shorten the machine time by 10 % or more compared with our conventional machine.
Needless to say, the single-thread, chainstitch, button sewing machine does not need bobbin thread changing.
Needless to say, the single-thread, chainstitch, button sewing machine does not need bobbin thread changing.

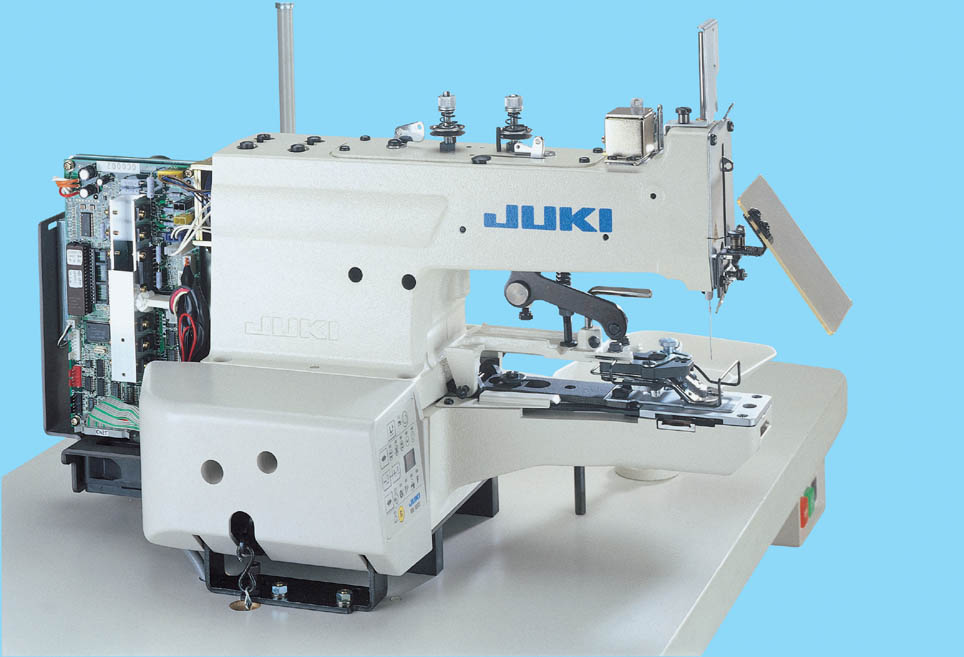

Excellent maintainability and operability
- Thanks to the elimination of the mechanical structures such as the stop-motion mechanism and feed cam, the machine operates with less vibration and noise and requires no maintenance.
- The foot pedal can be operated with reduced pressure from the operator's foot. This helps reduce operator fatigue by allowing the operator to operate the machine more rhythmically.
The machine responds to many different button sewing specifications
Download files (1)
Apparel Sewing machines
MB-1800B (wiper unit)
Computer-controlled, Dry-head, High-speed, Single-thread, Chainstitch Button Sewing Machine
A new button sewing machine that supports many different button sewing specifications independently.
It comes with direct-drive electronic feed driven by a compact AC servomotor to guarantee excellent seam quality and dramatically improve flexibility and maintainability.
It comes with direct-drive electronic feed driven by a compact AC servomotor to guarantee excellent seam quality and dramatically improve flexibility and maintainability.
Product overview
The machine is able to independently sew various stitching shapes such as U-shaped stitching, X-shaped stitching and Z-shaped stitching. The machine has 55 different stitching patterns as standard. In addition to the sewing shapes, the buttonhole intervals and number of stitches can also be changed on the operation panel.
Excellent seam quality and improved flexibility
The machine is able to independently sew various stitching shapes such as U-shaped stitching, X-shaped stitching and Z-shaped stitching
- The machine has 55 different stitching patterns as standard. In addition to the sewing shapes, the buttonhole intervals and number of stitches can also be changed on the operation panel. The machine completely supports many different button specifications to increase its range of applicability, reduce costs associated with changes in specifications, and save the operator from having to adapt the machine to different specifications.
- Custom patterns can be created on the PGM-20 and then used on the sewing machine.
Shorter lengths of thread remain after thread trimming
The machine performs thread trimming at the optimal position by correcting the button position with respect to the needle entry of the last stitch. This shortens the thread remaining on the material after thread trimming to approx. 3.5 mm.
The dry-head eliminates oil stains
The machine head is a non-lubricating type. With this type, the operator never has to add oil, and staining of the sewing product with oil is an impossibility.
The machine sews buttons with beautifully finished seams
- The machine adopts a stitching pattern with the tying stitch only at the final stitch. This ideal stitching pattern optimizes single thread chainstitching to produce beautiful seams on the wrong side of the material, thereby guaranteeing excellent seam quality.
- Moreovers, since the machine uses significantly fewer mechanical parts, troubles caused by excessive play in the feed such as needle breakage and button breakage occur for less often.
The machine is equipped as standard with thread-fray-prevention function
- The machine comes as standard with the solenoid-operated, thread-tension-changeover “thread-fray-prevention function.” Since the machine is designed to use a long needle (TQ×7), the “thread-fray-prevention function” can be used for sewing shank buttons.
- The “thread-fray-prevention mechanism” can be rendered ON or OFF as required by setting the solenoid drive ON or OFF.
The machine offers outstanding productivity
The machine runs at a maximum sewing speed of 1,800 rpm and comes with a direct-drive system supported by a compact AC servomotor that offers excellent stopping accuracy and responsiveness. Working in combination, these features shorten the machine time by 10 % or more compared with our conventional machine.
Needless to say, the single-thread, chainstitch, button sewing machine does not need bobbin thread changing.
Needless to say, the single-thread, chainstitch, button sewing machine does not need bobbin thread changing.
Excellent maintainability and operability
- Thanks to the elimination of the mechanical structures such as the stop-motion mechanism and feed cam, the machine operates with less vibration and noise and requires no maintenance.
- The foot pedal can be operated with reduced pressure from the operator's foot. This helps reduce operator fatigue by allowing the operator to operate the machine more rhythmically.
The machine responds to many different button sewing specifications
