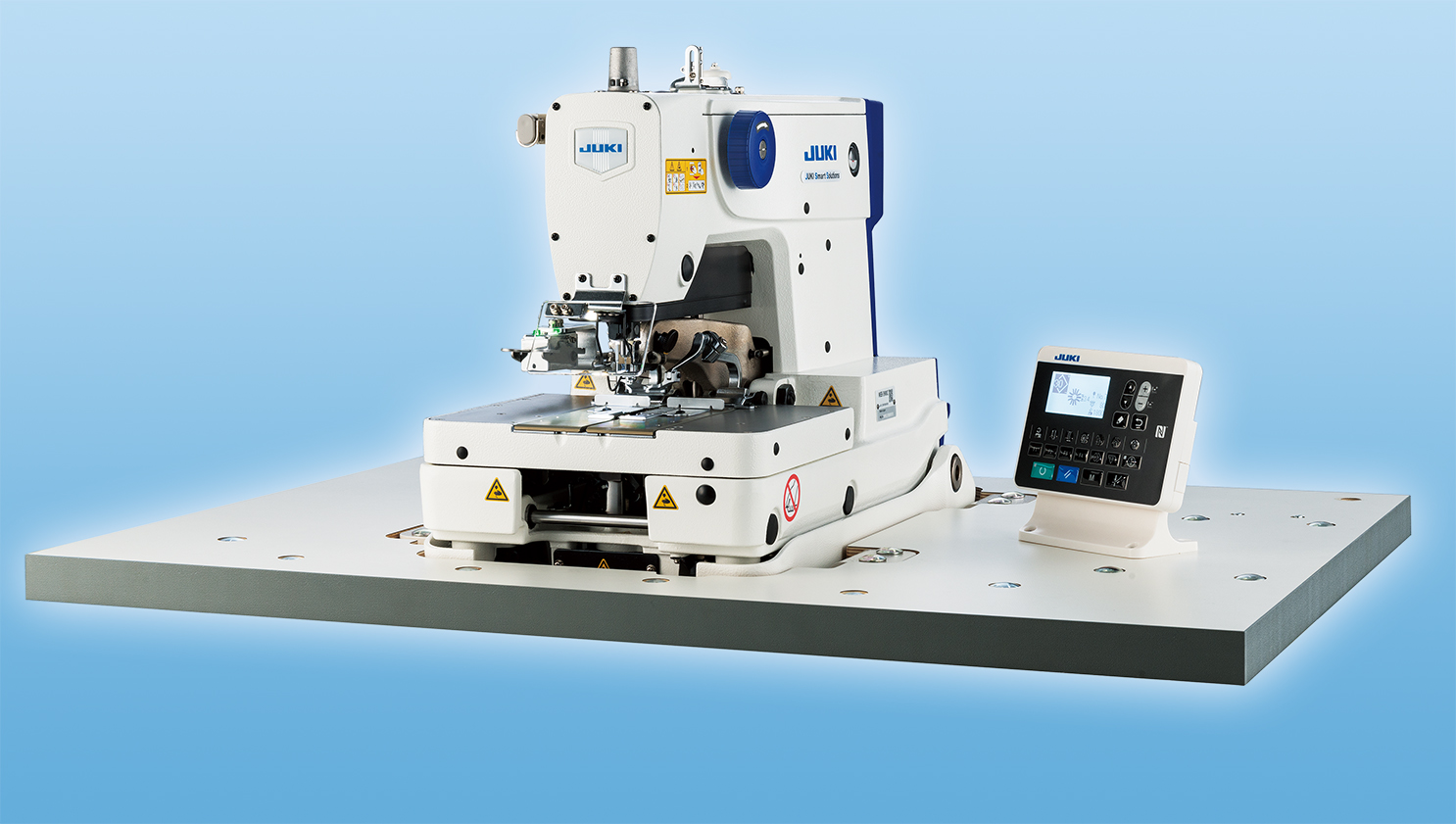

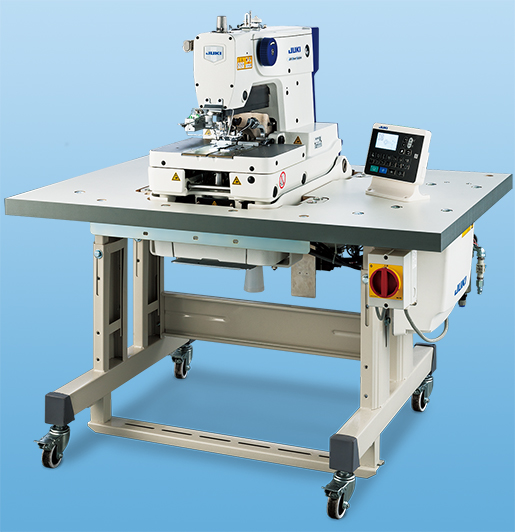

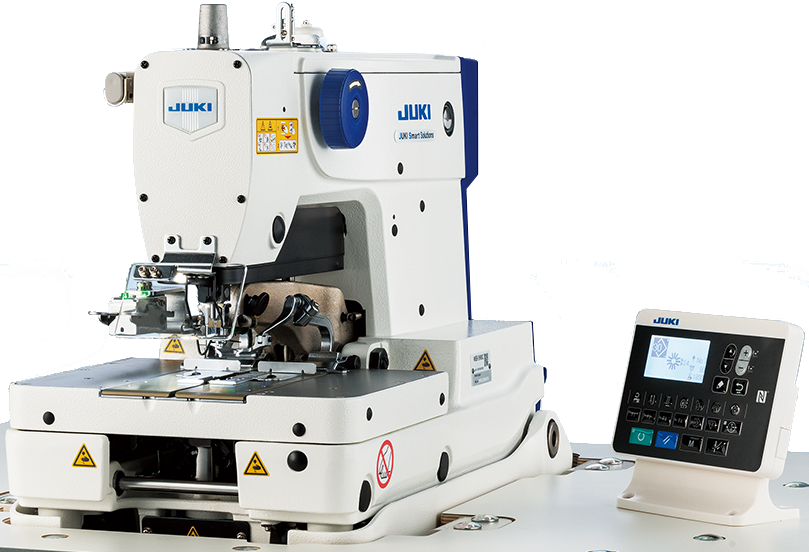

MEB-3900 Series
Computer controlled, Eyelet Buttonholing Sewing System
Then newly adopted direct-driven main shaft by means of a compact AC servomotor not only achieves enhanced responsiveness, but also achives both reduced noise and reduced vibration. The MEB -3900 has been digitalized allowing for the easy programing and transfer of sewing perimeters. Specifications that were normally ensure accurate adjustmen and exact either via the control panel or in the Juki Smart App for Android via NFC.
Contact Agent
See Series Specification (2)
Product overview

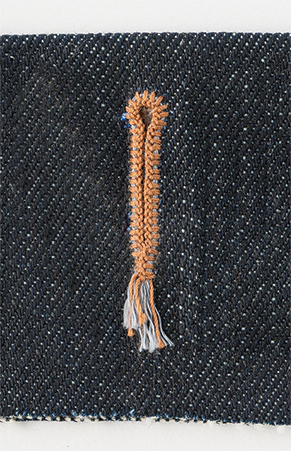

The MEB-3000 has a maximum sewing speed of 2.500 sti/min which enables it to finish eyelet button holes faster than the conventional models. Then newly adopted direct-driven main shaft by means of a compact AC servomotor not only achieves enhanced responsiveness, but also achieves both reduced noise and reduced vibration. Based on demands from the market Juki has introduced reliable overall thread-trimming and needle thread-trimming mechanisms into the MEB-3900 Series. The MEB-3900 has been digitalized allowing for the easy programing and transfer of sewing perimeters. Specifications that were normally manually adjusted can now be set numerically ensure accurate adjustment and exact reproduction across a machine line. Data can be edited either via the control panel or in the Juki Smart App for Android via NFC.
Increased productivity
Machine time is substantially reduced
The MEB-3900 reduces the machine time due to its maximum sewing speed of 2,500 sti/min and its speed-up cloth cuting knife, thereby demonstrating increased productivity. Then nevly adopted direct-driven main shaft by means of a compact AC servomotor not only achives enhanced responsiveness, but also achieves both reduced noise and reduced vibration.In addition, the machine has adopted an air-driven cloth cutting knife which promises excellent responsiveness and operates faster than the conventional knife.

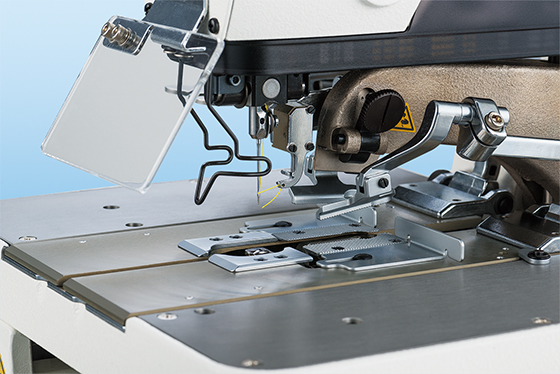

Reliable overall thread-trimming and needle
thread-trimming mechanism
Two different thread trimmers are prepared.
One of them can be selected according to the customer's needs.
The overall thread trimmer has been putting importance on productivity.
It promises thread trimming without fail and trims the thread in a short time. The operator is no longer required to carry out fine adjustments of the thread trimmer when changing the sewing length.
A sewing machine with a needle thread trimmer (Needle thread trimming type) has been the MEB Series in response to customer needs.
One of them can be selected according to the customer's needs.
The overall thread trimmer has been putting importance on productivity.
It promises thread trimming without fail and trims the thread in a short time. The operator is no longer required to carry out fine adjustments of the thread trimmer when changing the sewing length.
A sewing machine with a needle thread trimmer (Needle thread trimming type) has been the MEB Series in response to customer needs.

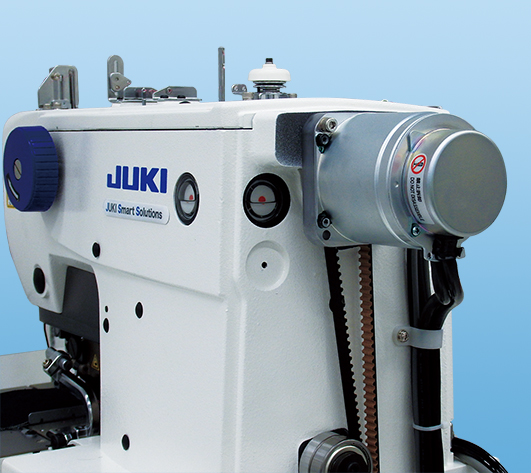

Direct-drive motor is adopted
The machine has adopted a direct-drive method that connects a compact AC servomotor directly to the main shaft. The quick startup and increased stopping accuracy obtained as a results guarantees outstanding responsiveness. In addition, the direct-drive motor does not use a V-belt to reduce power consumption.
Quality improvement
An active tension mechanism that electronically controls the needle thread tensions
Needle thread tensions can be digitally established on the operation panel according to sewing conditions. Data can be registered on a pattern-by-pattern basis to easily reproduce the same sewing conditions.
Using conventional machines, it's often quite difficult to
reproduce the same sewing conditions. This machine does it
with ease. With this capability, the MEB-3900 responds
immediately to material changes, significantly reducing the
time required for setup changes or adjustments. The machine
also ensures the consistent production of high-quality seams.
Using conventional machines, it's often quite difficult to
reproduce the same sewing conditions. This machine does it
with ease. With this capability, the MEB-3900 responds
immediately to material changes, significantly reducing the
time required for setup changes or adjustments. The machine
also ensures the consistent production of high-quality seams.
Needle thread tension can be separately established for various
sections of a buttonhole such as eyelet sections and parallel sections
The machine promises high-quality seams by smoothly responding to changes in stitch formation and allowing the operator to set a separate thread tension for the bartacking sections of buttonholes.
Thread tensions for the beginning and end of sewing can also be separately established. This helps prevent loose stitches or slip-off or raveling of thread at the beginning of sewing.
Thread tensions for the beginning and end of sewing can also be separately established. This helps prevent loose stitches or slip-off or raveling of thread at the beginning of sewing.

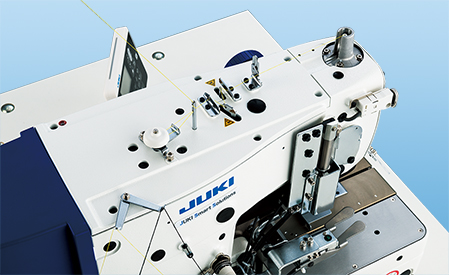

Threading work can be more easily
Since fewer parts need to be threaded, the machine can be threaded more quickly and easily than conventional buttonholing machines.

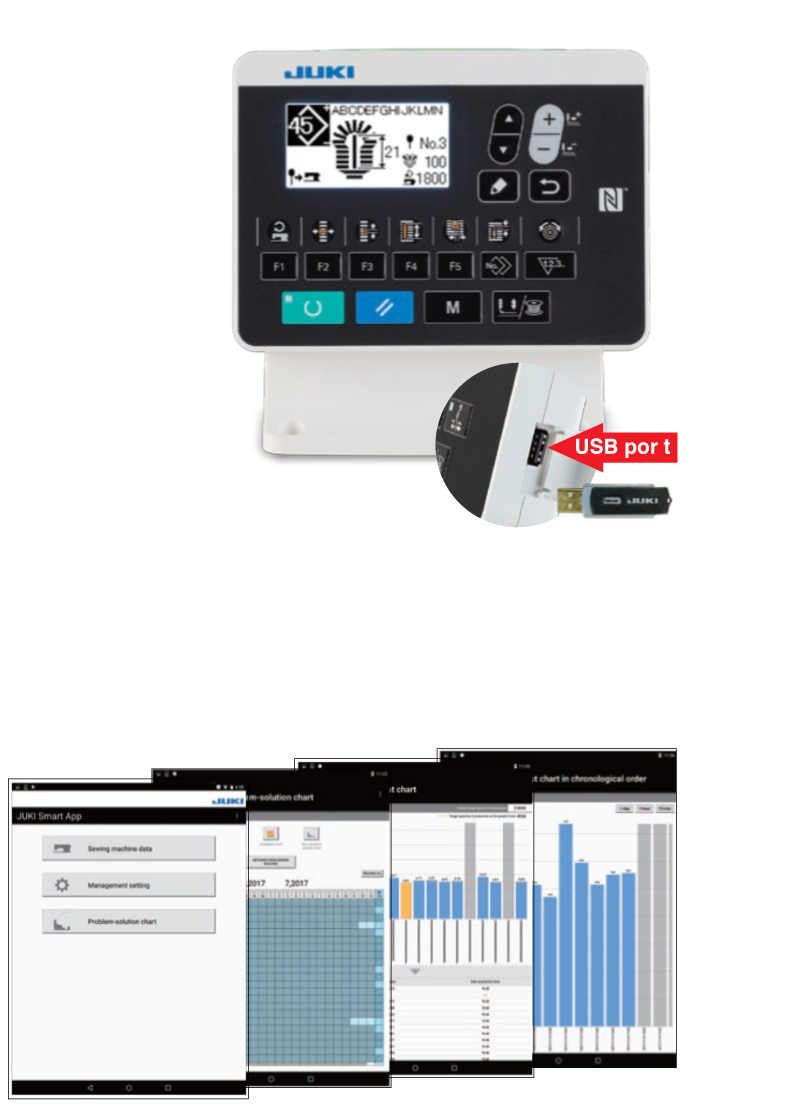

Management of sewing performance and sewing machine by the utilization of IoT (Internet of Things)
Management, browsing and editing of data can be carried out on the application software
Data on sewing machine adjustments made according to the product to be sewn can be transferred to a commercially-available Android tablet in contactless mode. This enables quick check for uniform settings as well as confirmation of conditions of sewing machines in a sewing line, thereby facilitating setup changes. The operation panel is also provided as standard with a USB port. Data management and software update can be carried out with ease using a USB thumb drive.
Improved workability and operability
Corresponds to that efficiently sews longitudinal buttonholes
- The machine head has a wider space under the work clamps to permit easy placement of a sewing product, thereby improving workability.
- The semi-sunken machine head promises easy placement and smooth handling of sewing products. Pistol pocket sewing of finished product became easier.

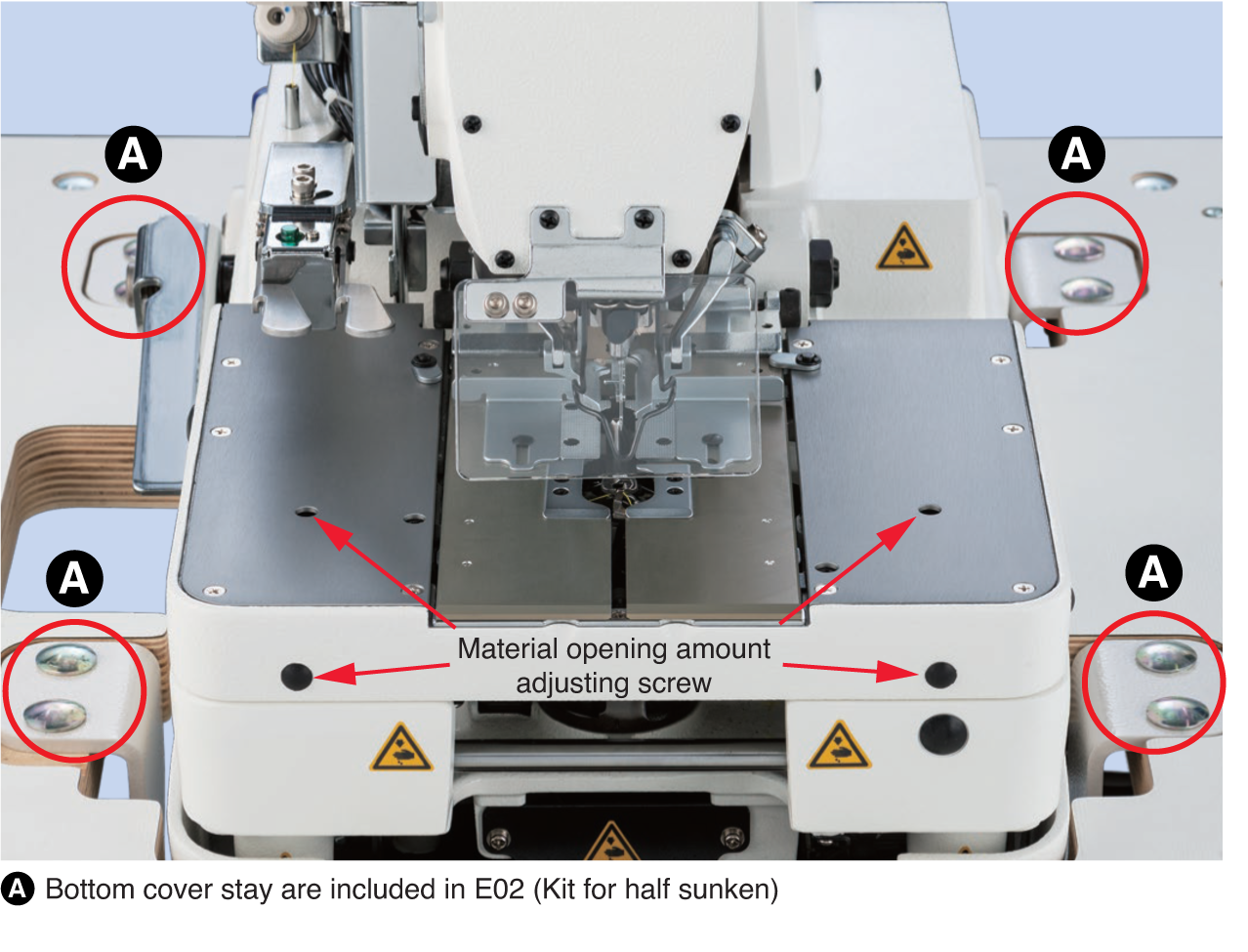

- The amount of material opened can be easily adjusted using the screw mounted outside the machine head.

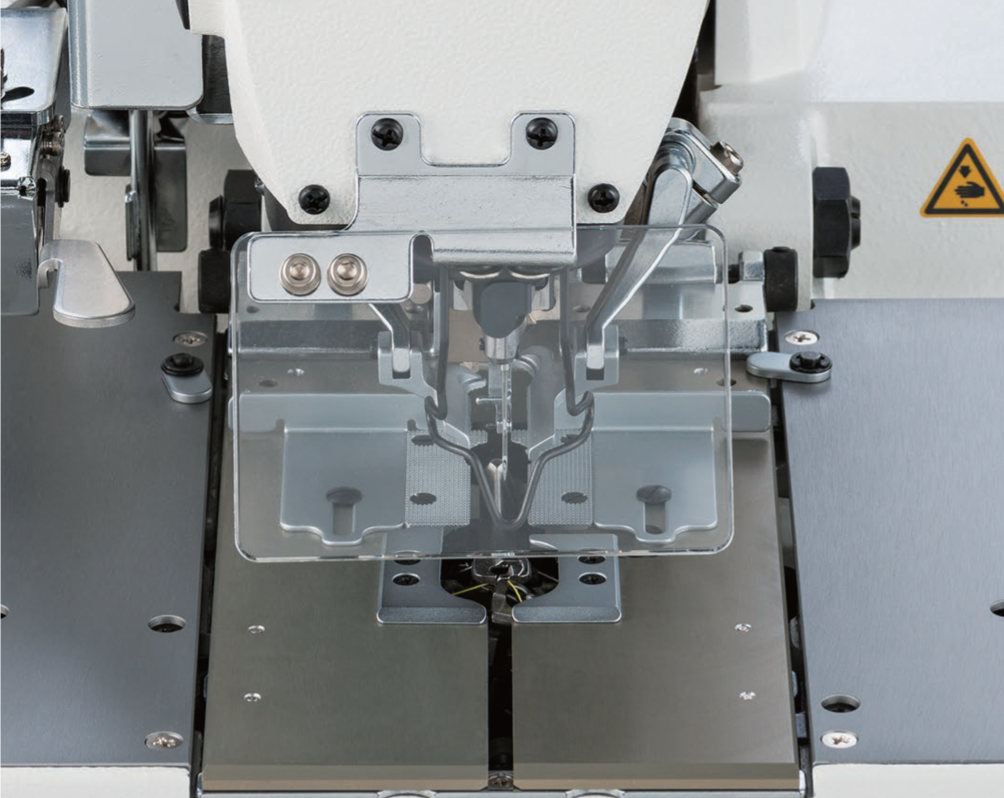

Improved viewability around the
needle entry
Projection of the arm frame of the machine head has been reduced. In addition, the cloth cutting knife is located closer to the operator side as compared with the conventional model. Viewability, when placing the material on the sewing machine, is improved, thereby contributing to improved workability. In addition, the thread clamp mechanism of the needle thread clamp
(optional) has been improved for better viewability.
(optional) has been improved for better viewability.

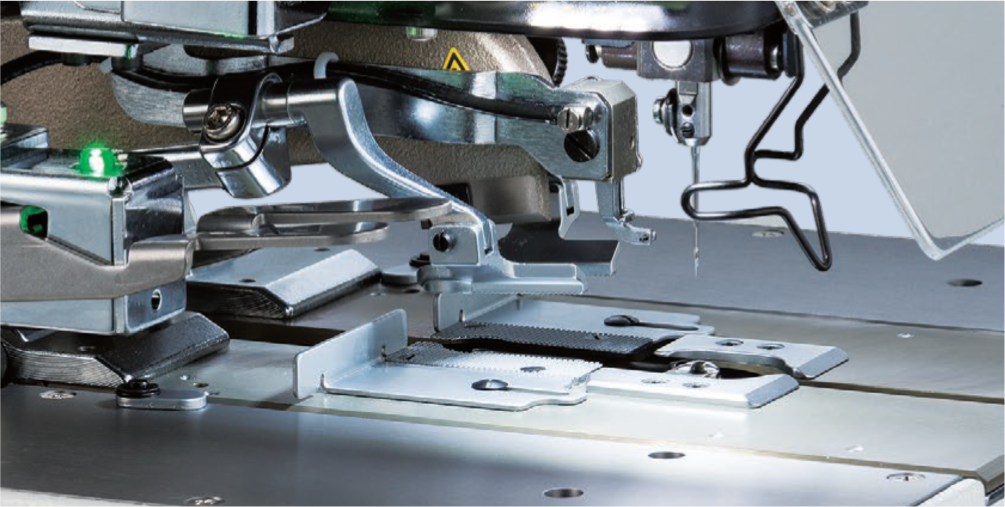

Adjustment of Cloth Cutting knife
When the blade of the cloth cutting knife wears, It can be adjusted by changing the height of the spacer.

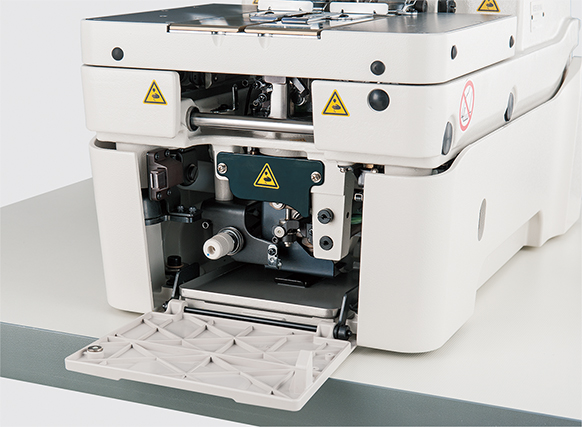

Latch type bottom cover
A latch type bottom cover is adopted. Daily maintenance (threading, adjustment of the looper thread, cleaning, etc.) can be carried out without raising the machine head.
The machine is provided as
standard with an LED light
An LED light is provided as standard on the underside of the jaw of the machine head.
The area around the needle entry is this brightened to improve workability.
The brightness of LED can be adjusted to 20 levels.
The area around the needle entry is this brightened to improve workability.
The brightness of LED can be adjusted to 20 levels.
Excellent maintainability
The computer controlled design eliminates most of the complicated mechanisms.
This dramatically improves maintainability.
The machine head is supported by a gas-spring that makes it easy to raise for smoother cleaning and threading. The tilted up machine head can safely take down thanks to the mechanical loc
This dramatically improves maintainability.
The machine head is supported by a gas-spring that makes it easy to raise for smoother cleaning and threading. The tilted up machine head can safely take down thanks to the mechanical loc
Improvements of working environment.
Adoption of a direct-driven main shaft and a revamping of the curve sections of the thread take-up cam and looper cam contribute to remarkably reduced vibration and noise.
The machine automatically reclaims cloth chips after cloth cutting action to keep the working environment cleaner.
The machine automatically reclaims cloth chips after cloth cutting action to keep the working environment cleaner.
