MH-486-5
1-needle, Double Chainstitch, Bottom and Variable Top-feed Machine with Automatic Thread Trimmer
The machine comes with a silicon oil lubricating unit, thread spreading mechanism and thread trimming mechanism whic trims the thread without fail, thereby consistently ensuring beautifully-finished seams for light- to medium-weight
materials. The appearance of the machine is restyled, and it is now colored in a refreshing urban white.
materials. The appearance of the machine is restyled, and it is now colored in a refreshing urban white.
Contact Agent
See Specification
Sewing Speed
4500
sti/min
Double chainstitch
Product overview
The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitching skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slipp-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
The machine is provided with mechanisms to enable upgraded sewing
The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
Safety stitching or reverse feed stitching with a simple lever operation.
Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.
Beautifully finished seams
Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.
Thread spreading mechanism
The thread spreader is for reverse feed stitching. It also plays an important role during normal feed stitching, helping create finished seams with higher consistency and preventing stitch skipping.
Change of sewing method with a simple lever operation.
The sewing method can be alternated between stretch stitching and shirr stitching with the simple operation of a lever. This lever is also used to adjust the differential-feed ratio.
The machine is best-suited for sewing elastic materials.
The differential-feed is the best-suited feeding device when sewing elastic materials including double-jersey or light-weight materials such as satin or georgette. Beautiful, elastic seams are created, while puckering, thread breakage and thread fraying are all prevented.
Using a lever, the differential-feed ratio for stretch stitching or gathering stitching can be easily adjusted.
Using a lever, the differential-feed ratio for stretch stitching or gathering stitching can be easily adjusted.
The machine is capable of gathering and partial shirring
A gathering attachment (S060), intermittent gathering attachment (S061) and partial shirring device (PF5) are optionally available to enable the machine to perform consistent gathering and partial shirring.
Replaceable gauges such as the gauge for light-weight materials and the urethane feed dog are prepared in accordance with the applications of the machine.
Replaceable gauges such as the gauge for light-weight materials and the urethane feed dog are prepared in accordance with the applications of the machine.

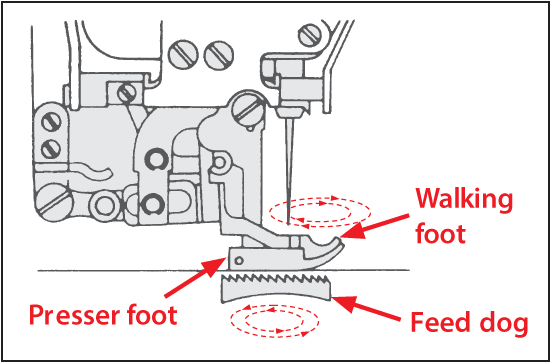

Bottom and variable top-feed mechanism
An easy-to-operate, high-precision presser foot, feed dog and thread draw-out mechanism have been developed for this sewing machine so that any operator can finish seams of the highest quality. The machine flexibly adapts to a wider range of light- to heavy-weight materials, process changes, and sewing specifications, including partial shirring.
The top-feed amount can be adjusted independently of the bottom-feed. The maximum lift of the walking foot is 3mm.
The top-feed amount can be adjusted independently of the bottom-feed. The maximum lift of the walking foot is 3mm.
Similar products (1)
Download files (1)
Apparel Sewing machines
MH-486-5
1-needle, Double Chainstitch, Bottom and Variable Top-feed Machine with Automatic Thread Trimmer
The machine comes with a silicon oil lubricating unit, thread spreading mechanism and thread trimming mechanism whic trims the thread without fail, thereby consistently ensuring beautifully-finished seams for light- to medium-weight
materials. The appearance of the machine is restyled, and it is now colored in a refreshing urban white.
materials. The appearance of the machine is restyled, and it is now colored in a refreshing urban white.
Sewing Speed
4500
sti/min
Double chainstitch
Product overview
The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitching skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slipp-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
The machine is provided with mechanisms to enable upgraded sewing
The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
Safety stitching or reverse feed stitching with a simple lever operation.
Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.
Beautifully finished seams
Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.
Thread spreading mechanism
The thread spreader is for reverse feed stitching. It also plays an important role during normal feed stitching, helping create finished seams with higher consistency and preventing stitch skipping.
Change of sewing method with a simple lever operation.
The sewing method can be alternated between stretch stitching and shirr stitching with the simple operation of a lever. This lever is also used to adjust the differential-feed ratio.
The machine is best-suited for sewing elastic materials.
The differential-feed is the best-suited feeding device when sewing elastic materials including double-jersey or light-weight materials such as satin or georgette. Beautiful, elastic seams are created, while puckering, thread breakage and thread fraying are all prevented.
Using a lever, the differential-feed ratio for stretch stitching or gathering stitching can be easily adjusted.
Using a lever, the differential-feed ratio for stretch stitching or gathering stitching can be easily adjusted.
The machine is capable of gathering and partial shirring
A gathering attachment (S060), intermittent gathering attachment (S061) and partial shirring device (PF5) are optionally available to enable the machine to perform consistent gathering and partial shirring.
Replaceable gauges such as the gauge for light-weight materials and the urethane feed dog are prepared in accordance with the applications of the machine.
Replaceable gauges such as the gauge for light-weight materials and the urethane feed dog are prepared in accordance with the applications of the machine.
Bottom and variable top-feed mechanism
An easy-to-operate, high-precision presser foot, feed dog and thread draw-out mechanism have been developed for this sewing machine so that any operator can finish seams of the highest quality. The machine flexibly adapts to a wider range of light- to heavy-weight materials, process changes, and sewing specifications, including partial shirring.
The top-feed amount can be adjusted independently of the bottom-feed. The maximum lift of the walking foot is 3mm.
The top-feed amount can be adjusted independently of the bottom-feed. The maximum lift of the walking foot is 3mm.
Specification
All Functions
Specification
Max Sewing Speed
4500sti/min
Max Stitch Length
5 mm
Needle
TVx7 (#11) #9-21
Presser Foot
By knee: 7mm
Standard Accessories
