MO-6700DA Series
Semi-dry head, High-speed, Overlock / Safety Stitch Machine
The Juki MO-6700DA is a dry head type overlock that is suitable for a hug amount of different products. This model is available in 1-needle, 2-needle and safety stitch types.
Industry Leading Overlock
Contact Agent
See Series Specification (3)
Industry Leading Overlock
Sewing speed
7.000
sti/min
Material Edge Knife
Product overview
Maximum sewing speed is increased to 7.000 sti/min. The needle bar mechanism and upper looper mechanism have been redesigned to require no lubrication. The frequency of stain removal or re-sewing is reduced. The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use.
Anti-Material-Slip Type
The sewing machine is fully equipped with adjusting devices and provisions to effectively prevent puckering of difficult-to-sew materials or new-generation materials. The operator is able to produce beautifully finished highquality seams without conducting difficult adjustments.
● The locus of feed and feed timing are selected to offer optimum conditions for sewing light-weight materials.
● The machine comes as standard with a low-pressure presser foot that is exclusively designed for light-weight materials and is able to remarkably handle small curves of the material. The presser foot helps the operator control lighter-weight material smoothly on the machine.

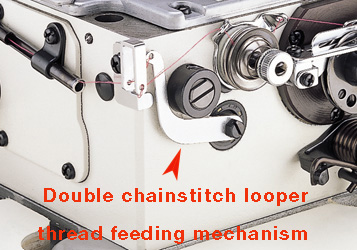

The feed mechanism feeds double chainstitch looper thread with consistency, even under a low tension. (Safety stitch machine)
● The locus of feed and feed timing are selected to offer optimum conditions for sewing light-weight materials.
● The machine comes as standard with a low-pressure presser foot that is exclusively designed for light-weight materials and is able to remarkably handle small curves of the material. The presser foot helps the operator control lighter-weight material smoothly on the machine.
The feed mechanism feeds double chainstitch looper thread with consistency, even under a low tension. (Safety stitch machine)
Oil stains on the sewing product are eliminated.
● Oil splashes are substantially reduced to eliminate oil stains on sewing products, thereby upgrading the finished quality.
● The frequency of stain removal or re-sewing is reduced.
● The machine achieves a practical maximum sewing speed of 6,000rpm.
● The frequency of stain removal or re-sewing is reduced.
● The machine achieves a practical maximum sewing speed of 6,000rpm.
Cutting-edge dry technology for achieving a lubrication-free mechanism.
● The needle bar mechanism and upper looper mechanism have been re-designed to require no lubrication.
● The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use. The grease filler openings are newly provided for the sewing machine on two locations, i.e., one on the upper looper component and the other on the sewing machine frame, thereby improving maintainability.
● The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use. The grease filler openings are newly provided for the sewing machine on two locations, i.e., one on the upper looper component and the other on the sewing machine frame, thereby improving maintainability.
JUKI’s dry-head technology eliminates oil stains on the sewing product
MO-6100D Series is the world’s first complete dry-head overlock machine.
This cutting-edge dry-head technology has been introduced to the MO-6700S,
which has an established reputation for its excellent seam quality and higher productivity. Only the parts which mainly contribute to oil splashes are improved to have dry mechanisms. This reduces cost and makes a practical dry-head machine, the MO-6700D Series.
This cutting-edge dry-head technology has been introduced to the MO-6700S,
which has an established reputation for its excellent seam quality and higher productivity. Only the parts which mainly contribute to oil splashes are improved to have dry mechanisms. This reduces cost and makes a practical dry-head machine, the MO-6700D Series.
Download files (1)
Apparel Sewing machines
MO-6700DA Series
Semi-dry head, High-speed, Overlock / Safety Stitch Machine
The Juki MO-6700DA is a dry head type overlock that is suitable for a hug amount of different products. This model is available in 1-needle, 2-needle and safety stitch types.
Industry Leading Overlock
Industry Leading Overlock
Sewing speed
7.000
sti/min
Material Edge Knife
Product overview
Maximum sewing speed is increased to 7.000 sti/min. The needle bar mechanism and upper looper mechanism have been redesigned to require no lubrication. The frequency of stain removal or re-sewing is reduced. The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use.
Anti-Material-Slip Type
The sewing machine is fully equipped with adjusting devices and provisions to effectively prevent puckering of difficult-to-sew materials or new-generation materials. The operator is able to produce beautifully finished highquality seams without conducting difficult adjustments.
● The locus of feed and feed timing are selected to offer optimum conditions for sewing light-weight materials.
● The machine comes as standard with a low-pressure presser foot that is exclusively designed for light-weight materials and is able to remarkably handle small curves of the material. The presser foot helps the operator control lighter-weight material smoothly on the machine.
The feed mechanism feeds double chainstitch looper thread with consistency, even under a low tension. (Safety stitch machine)
● The locus of feed and feed timing are selected to offer optimum conditions for sewing light-weight materials.
● The machine comes as standard with a low-pressure presser foot that is exclusively designed for light-weight materials and is able to remarkably handle small curves of the material. The presser foot helps the operator control lighter-weight material smoothly on the machine.
The feed mechanism feeds double chainstitch looper thread with consistency, even under a low tension. (Safety stitch machine)
Oil stains on the sewing product are eliminated.
● Oil splashes are substantially reduced to eliminate oil stains on sewing products, thereby upgrading the finished quality.
● The frequency of stain removal or re-sewing is reduced.
● The machine achieves a practical maximum sewing speed of 6,000rpm.
● The frequency of stain removal or re-sewing is reduced.
● The machine achieves a practical maximum sewing speed of 6,000rpm.
Cutting-edge dry technology for achieving a lubrication-free mechanism.
● The needle bar mechanism and upper looper mechanism have been re-designed to require no lubrication.
● The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use. The grease filler openings are newly provided for the sewing machine on two locations, i.e., one on the upper looper component and the other on the sewing machine frame, thereby improving maintainability.
● The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use. The grease filler openings are newly provided for the sewing machine on two locations, i.e., one on the upper looper component and the other on the sewing machine frame, thereby improving maintainability.
JUKI’s dry-head technology eliminates oil stains on the sewing product
MO-6100D Series is the world’s first complete dry-head overlock machine.
This cutting-edge dry-head technology has been introduced to the MO-6700S,
which has an established reputation for its excellent seam quality and higher productivity. Only the parts which mainly contribute to oil splashes are improved to have dry mechanisms. This reduces cost and makes a practical dry-head machine, the MO-6700D Series.
This cutting-edge dry-head technology has been introduced to the MO-6700S,
which has an established reputation for its excellent seam quality and higher productivity. Only the parts which mainly contribute to oil splashes are improved to have dry mechanisms. This reduces cost and makes a practical dry-head machine, the MO-6700D Series.
Specification
All Functions
Specification
Standard Accessories
