MO-6800S/DD Series
Direct-drive, High-speed, Overlock, Safety Stitch Machine
The sewing machine is a direct drive type in which a control box and an operation panel are integrated with the machine head.
Contact Agent
See Series Specification (4)
Sewing Speed
7000
sti/min
Needle bar stroke
24,5
mm
Product overview
The sewing machine is a direct drive type in which a control box and an operation panel are integrated with the machine head.
The machine achieves a practical maximum sewing speed of 7,000sti/min The MO-6800D/DD series are eliminated oil stains on the sewing product with “dry” technology.
FEATURES:
The machine achieves a practical maximum sewing speed of 7,000sti/min The MO-6800D/DD series are eliminated oil stains on the sewing product with “dry” technology.
FEATURES:
- The direct drive system has been adopted.
- Both the control box and the operation panel are integrated with the machine head.
Automatic thread trimmer with a material sensor
The MO-6800S(D) / DD Series of sewing machine is provided as standard with the side cutter with 2-point material sensor (DD22) and the Chain-off the thread trimming device with a 3-point material sensor (DD23). Under the full-automatic mode, the material sensor detects the presence / absence of the material to prevent the operator from erroneously operate the side cutter etc. In addition to the full-automatic mode, the manual mode and the semi-automatic mode can be selected.
Operator fatigue reduction ( LED light)
Standard equipment with all series
For the LED light, the improved toning function with two additional colors (white / light bulb color) is provided. Illuminance of the LED light is adjustable in five levels. This LED light helps reduce the operator’s eye fatigue who is engaged in sewing work for a long time.
Operation panel and control box are integrated with the machine head
USB port
The energy-saving and highly efficient servomotor is installed in the direct-drive style. The sewing machine quick lystarts up and stops with increased accuracy, thereby demonstrating improved responsiveness.
The USB port is standard on the control panel and You can easily upgrade the software. The MO-6800S (D) /DD22, 23 has another one USB port for charging a smartphone, etc.
The USB port is standard on the control panel and You can easily upgrade the software. The MO-6800S (D) /DD22, 23 has another one USB port for charging a smartphone, etc.
Smart Devices

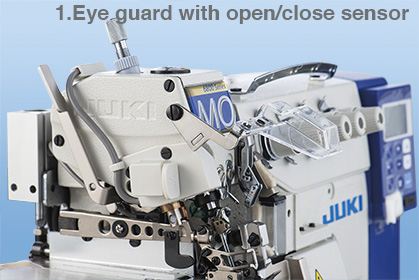

The cover sensor unit and cover microswitch unit
The cover sensor unit and cover micros-witch unit that detect 1, 2 and 3 (shown right) are closed tightly during sewing, thereby preventing the sewing machine from starting up unexpectedly.
Download files (1)
Apparel Sewing machines
MO-6800S/DD Series
Direct-drive, High-speed, Overlock, Safety Stitch Machine
The sewing machine is a direct drive type in which a control box and an operation panel are integrated with the machine head.
Sewing Speed
7000
sti/min
Needle bar stroke
24,5
mm
Product overview
The sewing machine is a direct drive type in which a control box and an operation panel are integrated with the machine head.
The machine achieves a practical maximum sewing speed of 7,000sti/min The MO-6800D/DD series are eliminated oil stains on the sewing product with “dry” technology.
FEATURES:
The machine achieves a practical maximum sewing speed of 7,000sti/min The MO-6800D/DD series are eliminated oil stains on the sewing product with “dry” technology.
FEATURES:
- The direct drive system has been adopted.
- Both the control box and the operation panel are integrated with the machine head.
Automatic thread trimmer with a material sensor
The MO-6800S(D) / DD Series of sewing machine is provided as standard with the side cutter with 2-point material sensor (DD22) and the Chain-off the thread trimming device with a 3-point material sensor (DD23). Under the full-automatic mode, the material sensor detects the presence / absence of the material to prevent the operator from erroneously operate the side cutter etc. In addition to the full-automatic mode, the manual mode and the semi-automatic mode can be selected.
Operator fatigue reduction ( LED light)
Standard equipment with all series
For the LED light, the improved toning function with two additional colors (white / light bulb color) is provided. Illuminance of the LED light is adjustable in five levels. This LED light helps reduce the operator’s eye fatigue who is engaged in sewing work for a long time.
Operation panel and control box are integrated with the machine head
USB port
The energy-saving and highly efficient servomotor is installed in the direct-drive style. The sewing machine quick lystarts up and stops with increased accuracy, thereby demonstrating improved responsiveness.
The USB port is standard on the control panel and You can easily upgrade the software. The MO-6800S (D) /DD22, 23 has another one USB port for charging a smartphone, etc.
The USB port is standard on the control panel and You can easily upgrade the software. The MO-6800S (D) /DD22, 23 has another one USB port for charging a smartphone, etc.
Smart Devices
The cover sensor unit and cover microswitch unit
The cover sensor unit and cover micros-witch unit that detect 1, 2 and 3 (shown right) are closed tightly during sewing, thereby preventing the sewing machine from starting up unexpectedly.
Specification
All Functions
Specification
Standard Accessories
