MS-1261A/DWS
High-speed, feed-off-the-arm, 3-needle double chainstitch sewing system (Digital workstation)
Thorough our commitment to the seam quality, the MS-1261A/DWS has achieved low-tension sewing.
As a result, this sewing system produces high-quality beautiful seams with consistency while preventing puckering, stitch skipping and uneven material feed.
As a result, this sewing system produces high-quality beautiful seams with consistency while preventing puckering, stitch skipping and uneven material feed.
Achievement of high-quality seams at a high speed
Contact Agent
See Series Specification (2)
High Quality Seams
Best for sewing multi-layered part
Sewing speed
5.500
sti/min
Capable of sewing Medium - to Extra - heavy materials
Product overview
JUKI MS-1261A/DWS machine with low-tension sewing system produces high-quality seams with ease and consistency. Multiple features guarantee production of stitches free of puckering and uneven material feed on medium to extra heavy materials. Through improvements to the feed locus bending of the needle can be prevented. Machine is equipped with belt-type digital cloth puller, chain-off thread cutter, needle cooler, LED hand light as standard and an energy-saving high-powered direct-drive motor. Management of machine parameters can be carried out via the Juki Smart App and NFC.
The MS-1261A is provided with digital functions for preventing stitch skipping and stitch gathering as well as for supporting smooth feed of multi-layered parts of materials that are considerably heavier in weight than the other parts of materials. These capabilities are highly required in sewing jeans.

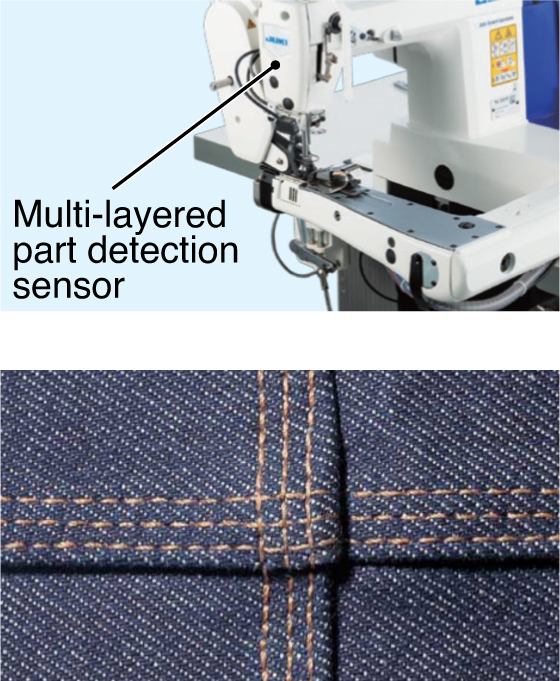

The newly-developed machine head is provided as standard with the presser foot pressure control function that has the multi-layered part detection sensor. In combination with the belt-type digital cloth puller which enables digital setting of the belt presser foot pressure and feed length, the sewing machine achieves "more beautifully-finished seams". Support to the digital control facilitates the adjustment of sewing for various kinds of materials. Even when sewing heavy-weight materials, the sewing system produces soft and beautiful seams.
The newly-developed machine head is provided as standard with the presser foot pressure control function that has the multi-layered part detection sensor. In combination with the belt-type digital cloth puller which enables digital setting of the belt presser foot pressure and feed length, the sewing machine achieves "more beautifully-finished seams". Support to the digital control facilitates the adjustment of sewing for various kinds of materials. Even when sewing heavy-weight materials, the sewing system produces soft and beautiful seams.

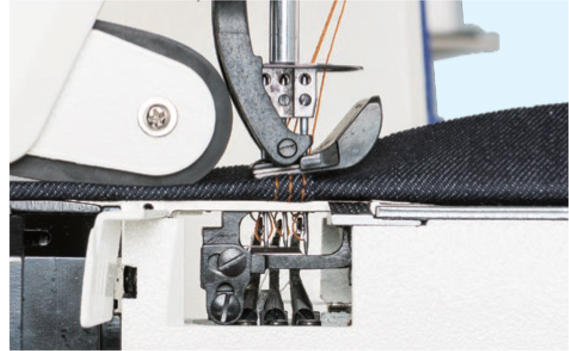

Prevention of stitch skipping
Through the improvement to the feed locus, needle bending is prevented by decreasing the feed amount when the needle penetrates the material. As a result, the looper thread is securely retained to ensure stable loop formation, thereby allowing the looper to catch the needle thread appropriaately to produce seams without fail. In addition, the backward-moving type needle guard helps feed heavy-weight materials smoothly, thereby preventing the occurrence of stitch skipping.
The sewing system offers improved operability for the operator and promotes energy savings.

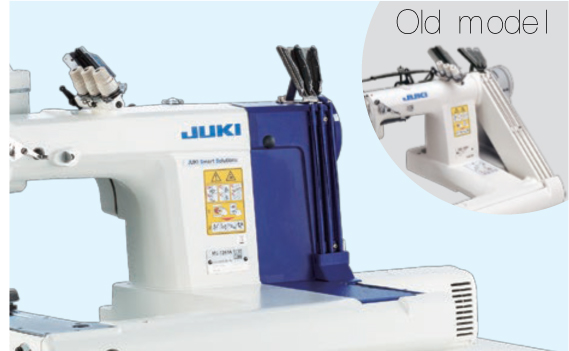

The conventional feed-off-the-arm chainstitch machines have Old model specially-shaped machine head due to its stitch type. In pursuit of ease of sewing and ease of handling of materials the, MS-1261A/DWS has adopted newly-developed machine head the shape of which is like of the general-purpose sewing machines. The MS-1261A/DWS is the first sewing system that comes with an energy-saving high-powered direct-drive motor. As a result, workability maintainability are improved.
Belt-type digital cloth puller
This belt-type digital cloth puller prevents stitch skipping and stitch gathering that are likely to occur at multi-layered parts of material. The "belt presser foot pressure" and "feed length" can be set on the operation panel of the sewing machine. This digital cloth puller is provided with both the roller surface that is soft to the materials and strong feeding force.

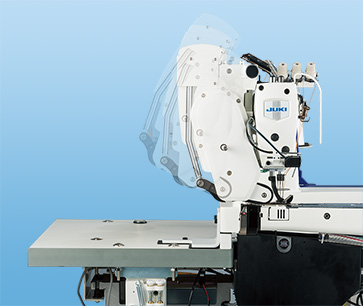

The digital cloth puller can be lifted up only by operating the lever. This promises easier maintenance.
The digital cloth puller can be lifted up only by operating the lever. This promises easier maintenance.

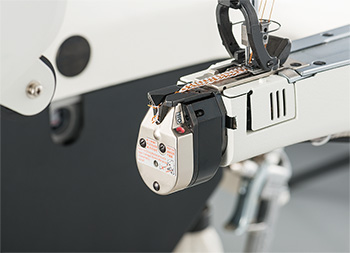

Chain-off thread cutter
This chain-off thread cutter is provided with a sensor. As a result, the cutter can be operated only when it is necessary.
The operation of the cutter and that of the vacuum can be separately set to ON and OFF on the operation panel.
The cutter only operates at the beginning and end of sewing, thereby contributing to improved durability.
The operation of the cutter and that of the vacuum can be separately set to ON and OFF on the operation panel.
The cutter only operates at the beginning and end of sewing, thereby contributing to improved durability.

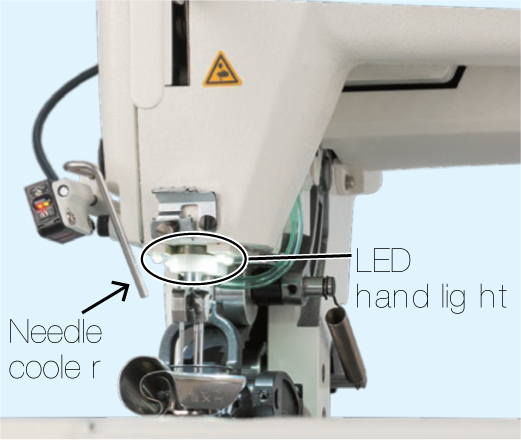

Needle cooler
The needle becomes hot during high-speed sewing.
The needle cooler blows air to the needle during high-speed sewing to prevent the needle from becoming so hot as to cut the thread by its heat.
The needle cooler blows air to the needle during high-speed sewing to prevent the needle from becoming so hot as to cut the thread by its heat.
LED hand light
Light quantity of the L
The LED hand light can also be turned OFF. With the LED hand light, the brightness can be adjusted to allow the operator to carry out sewing work with ease, thereby improving work efficiency.
Auto-lifter is also included in the standard equipment
Auto-lifter is also included in the standard equipment
Download files (1)
Apparel Sewing machines
MS-1261A/DWS
High-speed, feed-off-the-arm, 3-needle double chainstitch sewing system (Digital workstation)
Thorough our commitment to the seam quality, the MS-1261A/DWS has achieved low-tension sewing.
As a result, this sewing system produces high-quality beautiful seams with consistency while preventing puckering, stitch skipping and uneven material feed.
As a result, this sewing system produces high-quality beautiful seams with consistency while preventing puckering, stitch skipping and uneven material feed.
Achievement of high-quality seams at a high speed
High Quality Seams
Best for sewing multi-layered part
Sewing speed
5.500
sti/min
Capable of sewing Medium - to Extra - heavy materials
Product overview
JUKI MS-1261A/DWS machine with low-tension sewing system produces high-quality seams with ease and consistency. Multiple features guarantee production of stitches free of puckering and uneven material feed on medium to extra heavy materials. Through improvements to the feed locus bending of the needle can be prevented. Machine is equipped with belt-type digital cloth puller, chain-off thread cutter, needle cooler, LED hand light as standard and an energy-saving high-powered direct-drive motor. Management of machine parameters can be carried out via the Juki Smart App and NFC.
The MS-1261A is provided with digital functions for preventing stitch skipping and stitch gathering as well as for supporting smooth feed of multi-layered parts of materials that are considerably heavier in weight than the other parts of materials. These capabilities are highly required in sewing jeans.
The newly-developed machine head is provided as standard with the presser foot pressure control function that has the multi-layered part detection sensor. In combination with the belt-type digital cloth puller which enables digital setting of the belt presser foot pressure and feed length, the sewing machine achieves "more beautifully-finished seams". Support to the digital control facilitates the adjustment of sewing for various kinds of materials. Even when sewing heavy-weight materials, the sewing system produces soft and beautiful seams.
The newly-developed machine head is provided as standard with the presser foot pressure control function that has the multi-layered part detection sensor. In combination with the belt-type digital cloth puller which enables digital setting of the belt presser foot pressure and feed length, the sewing machine achieves "more beautifully-finished seams". Support to the digital control facilitates the adjustment of sewing for various kinds of materials. Even when sewing heavy-weight materials, the sewing system produces soft and beautiful seams.
Prevention of stitch skipping
Through the improvement to the feed locus, needle bending is prevented by decreasing the feed amount when the needle penetrates the material. As a result, the looper thread is securely retained to ensure stable loop formation, thereby allowing the looper to catch the needle thread appropriaately to produce seams without fail. In addition, the backward-moving type needle guard helps feed heavy-weight materials smoothly, thereby preventing the occurrence of stitch skipping.
The sewing system offers improved operability for the operator and promotes energy savings.
The conventional feed-off-the-arm chainstitch machines have Old model specially-shaped machine head due to its stitch type. In pursuit of ease of sewing and ease of handling of materials the, MS-1261A/DWS has adopted newly-developed machine head the shape of which is like of the general-purpose sewing machines. The MS-1261A/DWS is the first sewing system that comes with an energy-saving high-powered direct-drive motor. As a result, workability maintainability are improved.
Belt-type digital cloth puller
This belt-type digital cloth puller prevents stitch skipping and stitch gathering that are likely to occur at multi-layered parts of material. The "belt presser foot pressure" and "feed length" can be set on the operation panel of the sewing machine. This digital cloth puller is provided with both the roller surface that is soft to the materials and strong feeding force.
The digital cloth puller can be lifted up only by operating the lever. This promises easier maintenance.
The digital cloth puller can be lifted up only by operating the lever. This promises easier maintenance.
Chain-off thread cutter
This chain-off thread cutter is provided with a sensor. As a result, the cutter can be operated only when it is necessary.
The operation of the cutter and that of the vacuum can be separately set to ON and OFF on the operation panel.
The cutter only operates at the beginning and end of sewing, thereby contributing to improved durability.
The operation of the cutter and that of the vacuum can be separately set to ON and OFF on the operation panel.
The cutter only operates at the beginning and end of sewing, thereby contributing to improved durability.
Needle cooler
The needle becomes hot during high-speed sewing.
The needle cooler blows air to the needle during high-speed sewing to prevent the needle from becoming so hot as to cut the thread by its heat.
The needle cooler blows air to the needle during high-speed sewing to prevent the needle from becoming so hot as to cut the thread by its heat.
LED hand light
Light quantity of the L
The LED hand light can also be turned OFF. With the LED hand light, the brightness can be adjusted to allow the operator to carry out sewing work with ease, thereby improving work efficiency.
Auto-lifter is also included in the standard equipment
Auto-lifter is also included in the standard equipment
