MS-3580 Series
Feed-off-the-arm, 3-needle Double Chainstitch Machine
This machine demonstrates increased feed efficiency to handle extra heavy weight 16-ply denim. Engineered with extra feeding strength for seaming the inside of jeans. The machine is best suited for lap seaming jeans, denim jackets, work uniforms, etc. constructed of heavy weight materials.
Smooth, efficient feeding of extra heavy weight 16-Ply
Contact Agent
See Series Specification (2)
Product overview
This machine demonstrates increased feed efficiency to handle extra heavy weight 16-ply denim.  Engineered with extra feeding strength for seaming the inside of jeans. The machine is best suited for lap seaming jeans, denim jackets, work uniforms, etc. constructed of heavy weight materials.

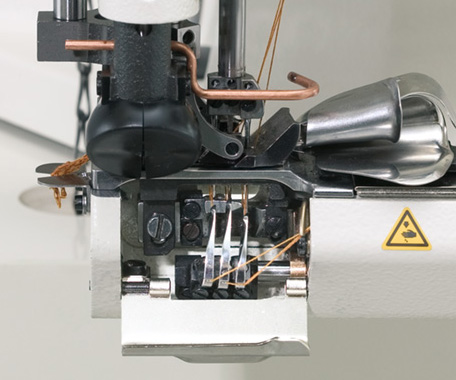

Strong feeding mechanism of the puller
The puller incorporates a one-way clutch mechanism which contributes to consistent feeding of the material. (The mechanical part is protected by a cover for added safety).

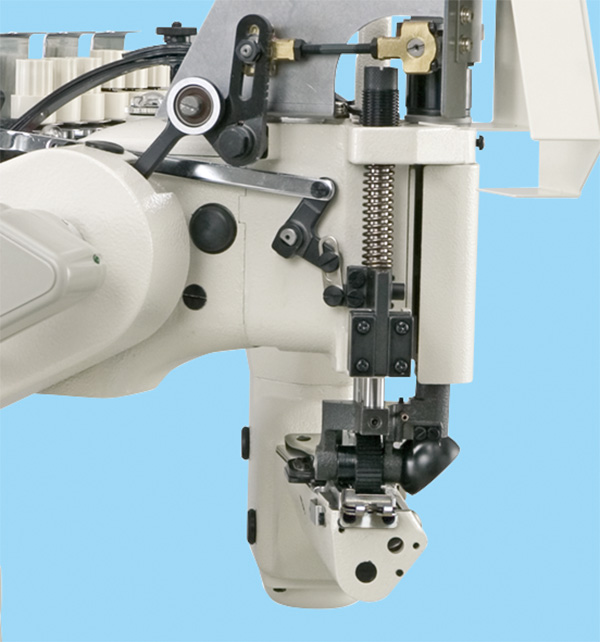

Thread take-up device which helps produce even stitches with consistency
The feeding amount of needle thread is automatically adjusted to the pressure foot height during sewing. Thereby producing even stitches with consistency.

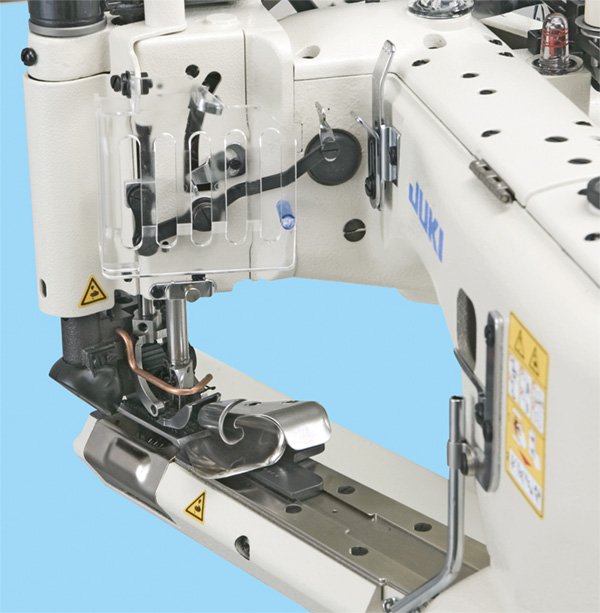

The machine has been designed to achieve the best possible ease of threading
When the looper pushbutton (*) located on the operator side of the top of the machine head is pushed, the tip of the looper moves down and allow the operator to thread the machine head with ease.

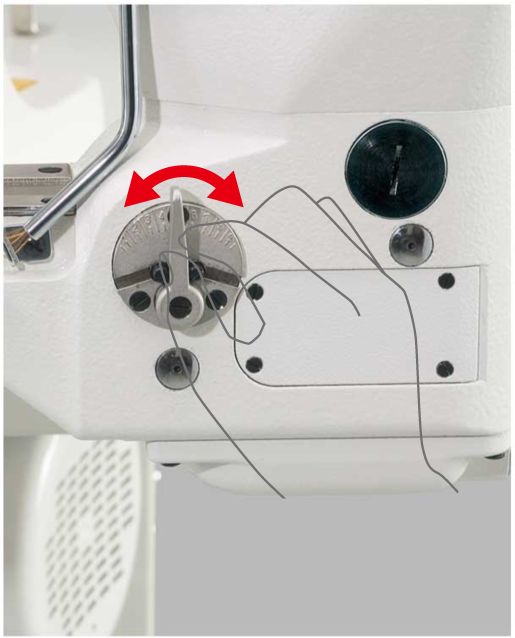

The differential feed adjusting lever is located on the front face of the machine head
The differential feed adjusting lever can be adjusted even during sewing, thereby effectively preventing cloth slippage between two plies.

Apparel Sewing machines

MS-3580 Series

Feed-off-the-arm, 3-needle Double Chainstitch Machine

This machine demonstrates increased feed efficiency to handle extra heavy weight 16-ply denim. Engineered with extra feeding strength for seaming the inside of jeans. The machine is best suited for lap seaming jeans, denim jackets, work uniforms, etc. constructed of heavy weight materials.

Smooth, efficient feeding of extra heavy weight 16-Ply

Product overview
This machine demonstrates increased feed efficiency to handle extra heavy weight 16-ply denim.  Engineered with extra feeding strength for seaming the inside of jeans. The machine is best suited for lap seaming jeans, denim jackets, work uniforms, etc. constructed of heavy weight materials.
Strong feeding mechanism of the puller
The puller incorporates a one-way clutch mechanism which contributes to consistent feeding of the material. (The mechanical part is protected by a cover for added safety).
Thread take-up device which helps produce even stitches with consistency
The feeding amount of needle thread is automatically adjusted to the pressure foot height during sewing. Thereby producing even stitches with consistency.
The machine has been designed to achieve the best possible ease of threading
When the looper pushbutton (*) located on the operator side of the top of the machine head is pushed, the tip of the looper moves down and allow the operator to thread the machine head with ease.
The differential feed adjusting lever is located on the front face of the machine head
The differential feed adjusting lever can be adjusted even during sewing, thereby effectively preventing cloth slippage between two plies.
