PLC-2700 Series
Post-bed, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook

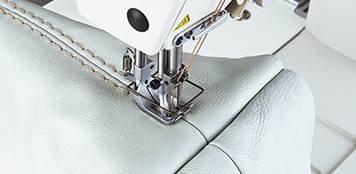

It is the most-advanced sewing machine which is best-suited to the sewing of heavy weight materials sewing processes such as car-seats, sofas and sports goods.
Most-advanced machine best suited to the stitching of heavy weight materials
Contact Agent
See Series Specification (6)
Stitch Length
12
mm
Direct-Drive Motor
Sewing Speed
2,500
sti./min.
Product overview
The sewing machine has adopted a feed mechanism whic keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the machine.
The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.

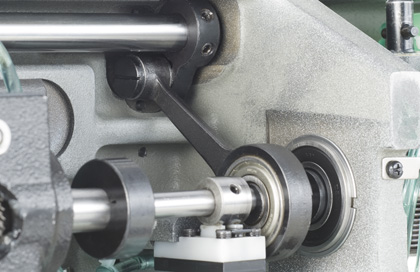

Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best-suited to the material and thread used. It is no longer necessary to prepare other subclass model.

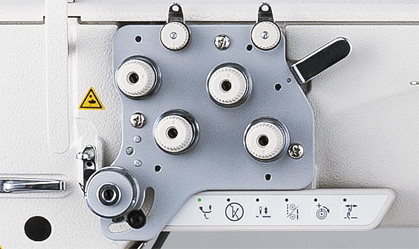

Single or Double can be set easy through Multi-functional 6-string switch, regarding the machine with trimmer. Changeover of
the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one push. The machine is able to perform sewing with low-count thread under a higher tension, which is difficult for the conventional single-tension method, with ease. The machine comes with a dual-tension thread system.
the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one push. The machine is able to perform sewing with low-count thread under a higher tension, which is difficult for the conventional single-tension method, with ease. The machine comes with a dual-tension thread system.
Reduce weight by using resin parts for surface of vibration point. Noise and vibration decrease by changing the gear of an Hook into a bevel gear.
Download files (1)
Non-Apparel Sewing machines
PLC-2700 Series
Post-bed, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook
It is the most-advanced sewing machine which is best-suited to the sewing of heavy weight materials sewing processes such as car-seats, sofas and sports goods.
Most-advanced machine best suited to the stitching of heavy weight materials
Stitch Length
12
mm
Direct-Drive Motor
Sewing Speed
2,500
sti./min.
Product overview
The sewing machine has adopted a feed mechanism whic keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the machine.
The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best-suited to the material and thread used. It is no longer necessary to prepare other subclass model.
Single or Double can be set easy through Multi-functional 6-string switch, regarding the machine with trimmer. Changeover of
the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one push. The machine is able to perform sewing with low-count thread under a higher tension, which is difficult for the conventional single-tension method, with ease. The machine comes with a dual-tension thread system.
the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one push. The machine is able to perform sewing with low-count thread under a higher tension, which is difficult for the conventional single-tension method, with ease. The machine comes with a dual-tension thread system.
Reduce weight by using resin parts for surface of vibration point. Noise and vibration decrease by changing the gear of an Hook into a bevel gear.
Specification
All Functions
Specification
Standard Accessories
