LX5-871-M0
1-needle, Lockstitch Machine

LX models come with Powerful and high-performance Limiservo XC-G Series for simple sequence function. The reverse needle raising enables easy insertion and removal of materials. The fabric stop function ensures proper needle drop location. Machines guarantee maintenance-free operation with no-wear part. Additionally, it’s energy-saving with noise-resistant design. Single stitching, continuous stitching, continuous variable stitching and more. Perform basting work quickly and conveniently.

Improved stable basting quality and operability
Contact Agent
See Specification
Sewing speed
650
sti/min.
Hook
Vertical-axis
Post-bed system
178
mm
Product overview

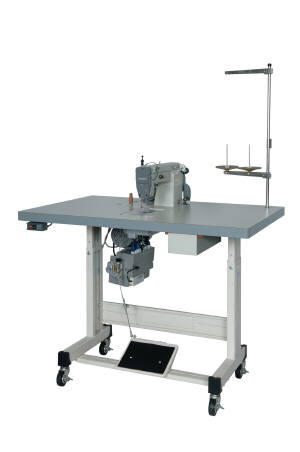

Equipped with a presser bar, needle bar, impact rubber and pedal operation to easily switch between single-stitch sewing and continuous sewing. The impact rubber absorbs the vertical movement of the presser bar. Sufficient presser foot lift of 16mm guarantees smooth movement even on thick materials. The G motor (basting function) of Limiservo X is used to securely stop the needle bar at a fixed location. An electronic control system maximizes the properties of the G motor of Limiservo X. The post shape bed is perfect for sewing rounded collars, shoulders, and sleeves.

See this machine in action
Similar products (1)
LX2-630-M1
1-Needle, Lockstitch Machine
Differences

Apparel Sewing machines

LX5-871-M0

1-needle, Lockstitch Machine

LX models come with Powerful and high-performance Limiservo XC-G Series for simple sequence function. The reverse needle raising enables easy insertion and removal of materials. The fabric stop function ensures proper needle drop location. Machines guarantee maintenance-free operation with no-wear part. Additionally, it’s energy-saving with noise-resistant design. Single stitching, continuous stitching, continuous variable stitching and more. Perform basting work quickly and conveniently.

Improved stable basting quality and operability

Sewing speed
650
sti/min.
Hook
Vertical-axis
Post-bed system
178
mm
Product overview

Equipped with a presser bar, needle bar, impact rubber and pedal operation to easily switch between single-stitch sewing and continuous sewing. The impact rubber absorbs the vertical movement of the presser bar. Sufficient presser foot lift of 16mm guarantees smooth movement even on thick materials. The G motor (basting function) of Limiservo X is used to securely stop the needle bar at a fixed location. An electronic control system maximizes the properties of the G motor of Limiservo X. The post shape bed is perfect for sewing rounded collars, shoulders, and sleeves.

Specification
All Functions
Specification
Application
Light to medium-weight material
Max Sewing Speed
650sti/min
Hook Type
Vertical-axis
Number of Needles
1-Needle
Needle Bar Stroke
35.00 mm
Standard Accessories
