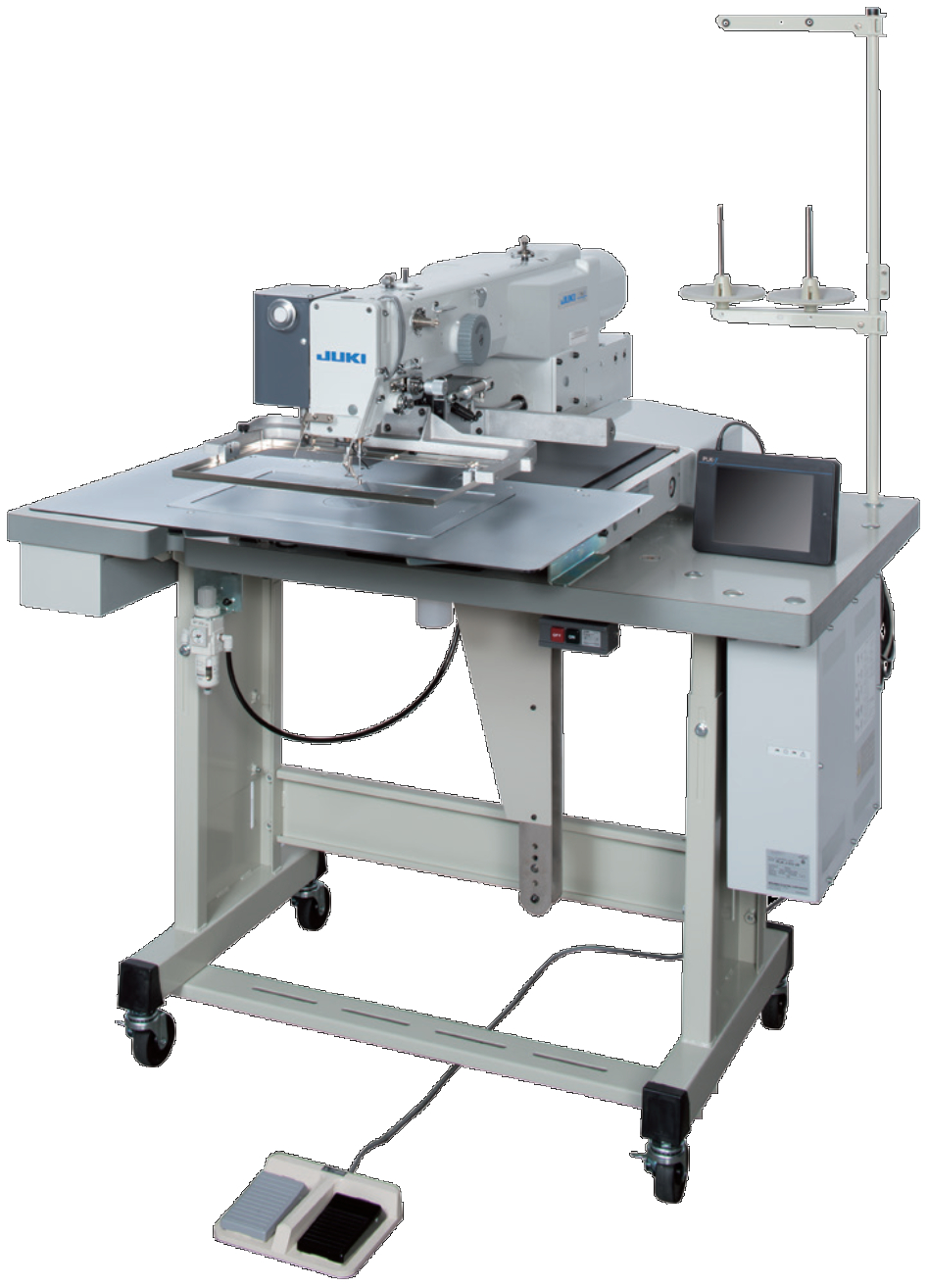

PLK-J3020R-SE
Computer-controlled Cycle Machine with Input Function
PLK-J3020R-SE in addition to acquiring sewing information, pressure on take-up lever and changes of material thickness during sewing operation can be collected and accumulated. This machine come standard with traceability functions. With the help of independently driven take-up lever, we will offer high quality sewing effects.
The evolution of future sewing
Contact Agent
See Specification
M3 motion
up to 2300 sti./m.
6.5-inch color LCD touch panel with USB port
Double-size rotary hook
Sewing area
300 x 200
mm
Product overview
PLK-J3020R-SE is equipped with M3 Motion System - Mix between intermittent and continuous feed up to 2,300 sti./min. for reduced noise and vibrations. Digital tension function optimizes thread tightness in all stitching directions. Independent presser foot motion prevents the fabric from lifting up. Thanks to that needle is stable and stitch skipping reduced. Easy operation and maintenance guarantees colour LCD touch panel with USB port and ergonomic design. Machine selects the optimum tension according to the stitching pattern. The fabric pressing time and timing can be adjusted digitally for high quality stitches. Mix between intermitent and continuous system motion reduces vibration and noise to optimize the sewing. SE-stitch function reduces skip stitches which may occur at the start of sewing cycle, even with the short remaining thread.
Similar products (1)
Download files (1)
Related articles
You can read our articles where
PLK-J3020R-SE
is mentioned:
Non-Apparel Sewing machines
PLK-J3020R-SE
Computer-controlled Cycle Machine with Input Function
PLK-J3020R-SE in addition to acquiring sewing information, pressure on take-up lever and changes of material thickness during sewing operation can be collected and accumulated. This machine come standard with traceability functions. With the help of independently driven take-up lever, we will offer high quality sewing effects.
The evolution of future sewing
M3 motion
up to 2300 sti./m.
6.5-inch color LCD touch panel with USB port
Double-size rotary hook
Sewing area
300 x 200
mm
Product overview
PLK-J3020R-SE is equipped with M3 Motion System - Mix between intermittent and continuous feed up to 2,300 sti./min. for reduced noise and vibrations. Digital tension function optimizes thread tightness in all stitching directions. Independent presser foot motion prevents the fabric from lifting up. Thanks to that needle is stable and stitch skipping reduced. Easy operation and maintenance guarantees colour LCD touch panel with USB port and ergonomic design. Machine selects the optimum tension according to the stitching pattern. The fabric pressing time and timing can be adjusted digitally for high quality stitches. Mix between intermitent and continuous system motion reduces vibration and noise to optimize the sewing. SE-stitch function reduces skip stitches which may occur at the start of sewing cycle, even with the short remaining thread.
Specification
All Functions
Specification
Application
Heavy-weight material
Max. Sewing Speed
2300 sti./min.
Hook Type
Double-size rotary hook
Lubrication
Spray method
Number of Needles
1-Needle
Max. Stitch Length
20 mm
Presser Foot Lift
24 mm
Standard Accessories
