PLK-J360°R

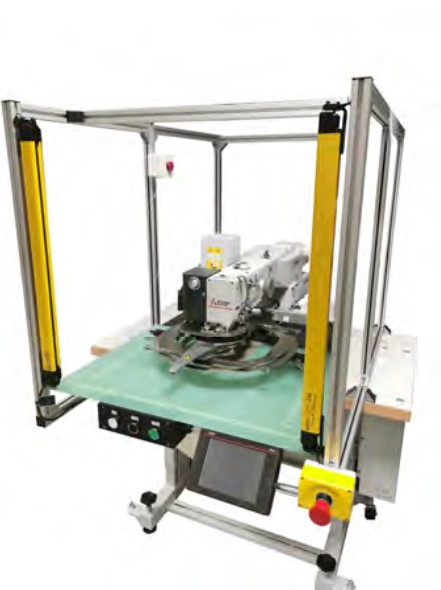

Computer-controlled Cycle Machine with Input Function and Rotating Tool

This single-needle lockstitch machine sews always in the same direction thanks to a rotating clamp (LR or LBR needle option). The model is equipped with Independent presser foot motion function, "Pokayoke" to prevent human error and 6.5-inch color operation panel which makes it easy to operate.

The evolution of future sewing
Contact Agent
See Specification

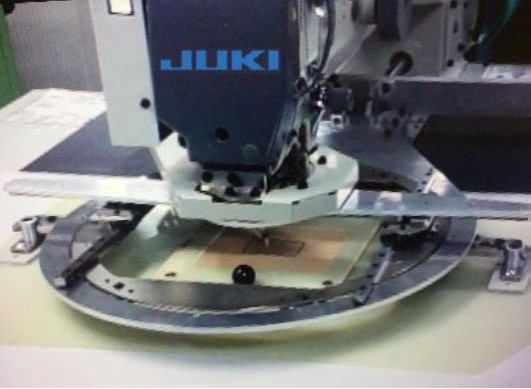

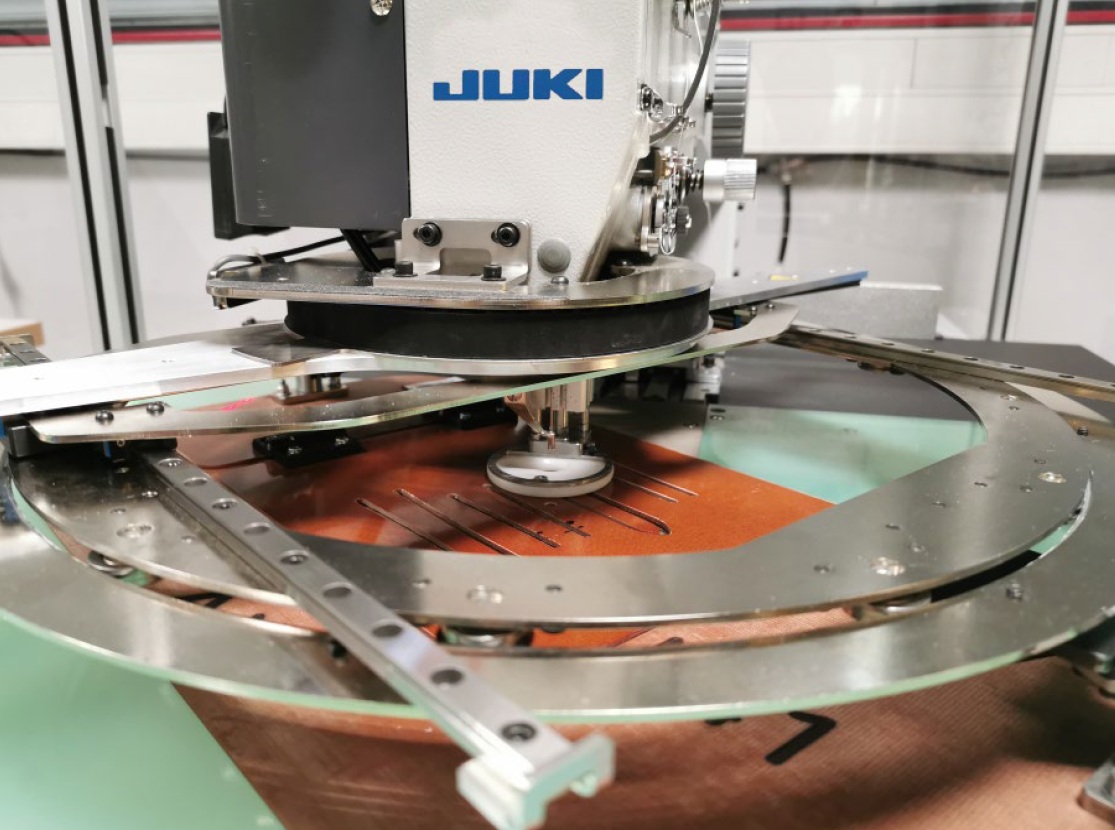

Rotary Tool
Double-size rotary hook
6.5-inch color LCD touch panel with USB port
Product overview

The fabric pressing option can be adjusted digitally to prevent lifting up. This contributes to stable needle location. Additionally, the E-stitch fuction - Perfect thread maintain at start-up, reduces stitch skipping and the "Pokayoke" function - Materials thickness confirmation, ensures proper material layers before sewing starts. PLK-J360°R is also equipped with the seam error detection feature where the history and condition of every stitch can be transferred to storage device for future traceability.

Non-Apparel Sewing machines

PLK-J360°R

Computer-controlled Cycle Machine with Input Function and Rotating Tool

This single-needle lockstitch machine sews always in the same direction thanks to a rotating clamp (LR or LBR needle option). The model is equipped with Independent presser foot motion function, "Pokayoke" to prevent human error and 6.5-inch color operation panel which makes it easy to operate.

The evolution of future sewing

Rotary Tool
Double-size rotary hook
6.5-inch color LCD touch panel with USB port
Product overview

The fabric pressing option can be adjusted digitally to prevent lifting up. This contributes to stable needle location. Additionally, the E-stitch fuction - Perfect thread maintain at start-up, reduces stitch skipping and the "Pokayoke" function - Materials thickness confirmation, ensures proper material layers before sewing starts. PLK-J360°R is also equipped with the seam error detection feature where the history and condition of every stitch can be transferred to storage device for future traceability.

Specification
All Functions
Specification
Application
Heavy-weight material
Max. Sewing Speed
1000 sti./min.
Hook Type
Double-size rotary hook
Number of Needles
1-Needle
Max. Stitch Length
20 mm
Presser Foot Lift
24 mm
Standard Accessories
